Instrument Function
R&S
®
SMB100A
212Operating Manual 1407.0806.32 ─ 21

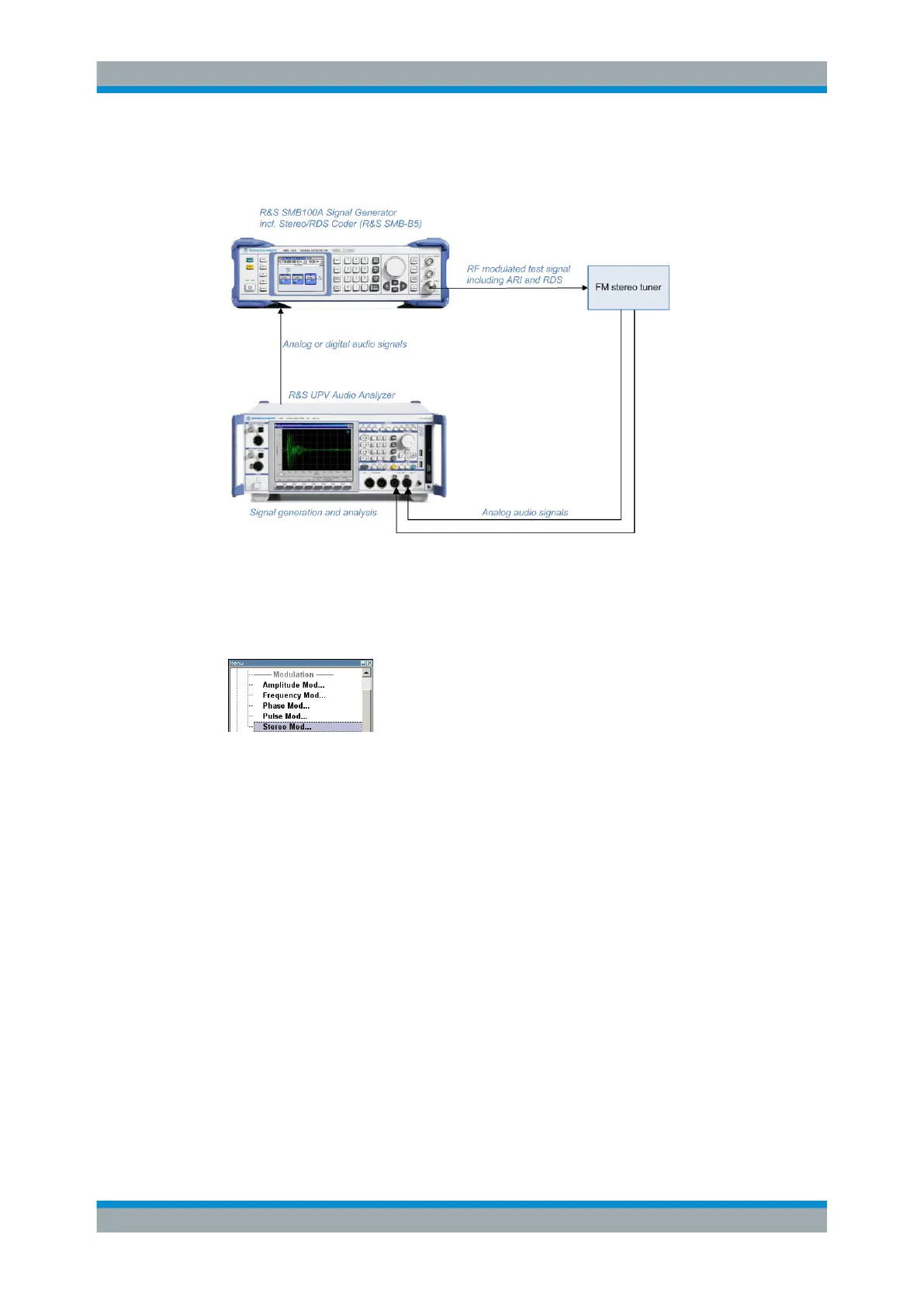

A typical setup with the R&S SMB with the option Stereo/RDS Coder in connection
with the Audio Analyzer UPV is shown in the following graph.
5.4.6.1 Stereo Modulation Dialog
To open the "Stereo Modulation" dialog, select "Modulation > Configure > Stereo Mod-
ulation" or use the MENU key under "Modulation".
In the upper section of the menu, the stereo modulation is configured and switched on.
The configuration and activation of the additional pilot tone, ARI and RDS settings is
performed in the lower section of the dialog.
