If a "User defined"(see Mode) IDN String is selected, you can create a user defined
option string in addition to the automatically created one.
Remote command:
*OPT? on page 281
5.2.3.16 LXI Status

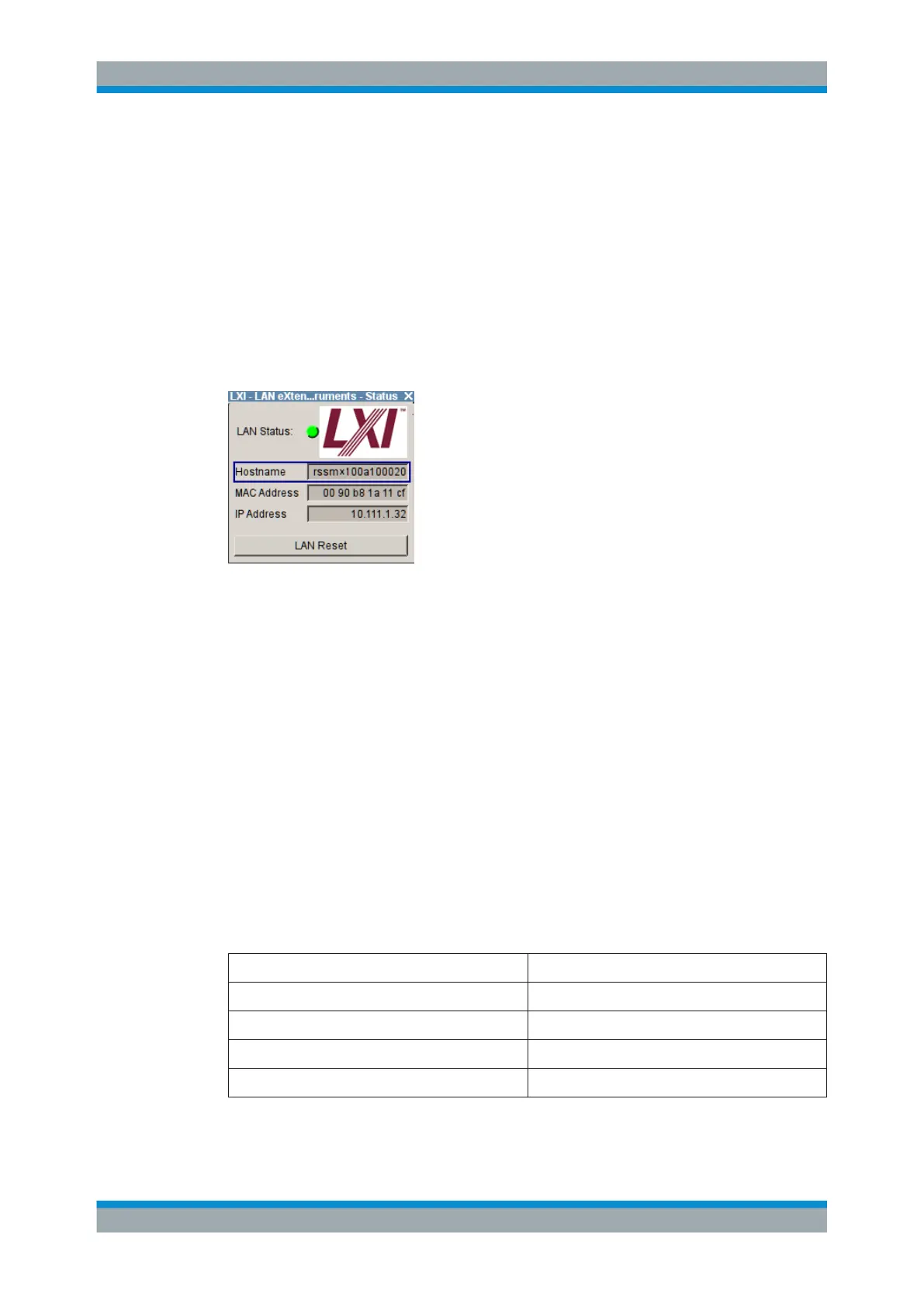

The "LXI - LAN eXtensions for Instruments - Status..." dialog displays the settings and
status of the LAN and allows to reset the LAN connection.
For more information on LXI, see Chapter 2.8, "LXI Configuration", on page 45.
LAN Status
The LED indicates the LXI status.
The LAN Status is also indicated with the LED "LAN Status" on the front panel of the
instrument.
"green"
normal operation
"green (flashing)"
device identification
"red"
LAN fault
Remote command:
n.a.
LAN Reset
Initiates the network configuration reset mechanism for the instrument and resets the
hostname, MAC address, and IP address.
According to the LXI standard, a LAN Reset must place the following network settings
to a default state:
Parameter Value
TCP/IP Mode DHCP + Auto IP Address
Dynamic DNS Enabled
ICMP Ping Enabled
Password for LAN configuration LxiWebIfc
The LAN Reset for the R&S SMB also resets the following parameters:
General Instrument Settings
