Instrument Function

R&S

SMB100A

220Operating Manual 1407.0806.32 ─ 21

Remote command:

[:SOURce]:LFOutput<ch>:FREQuency on page 349

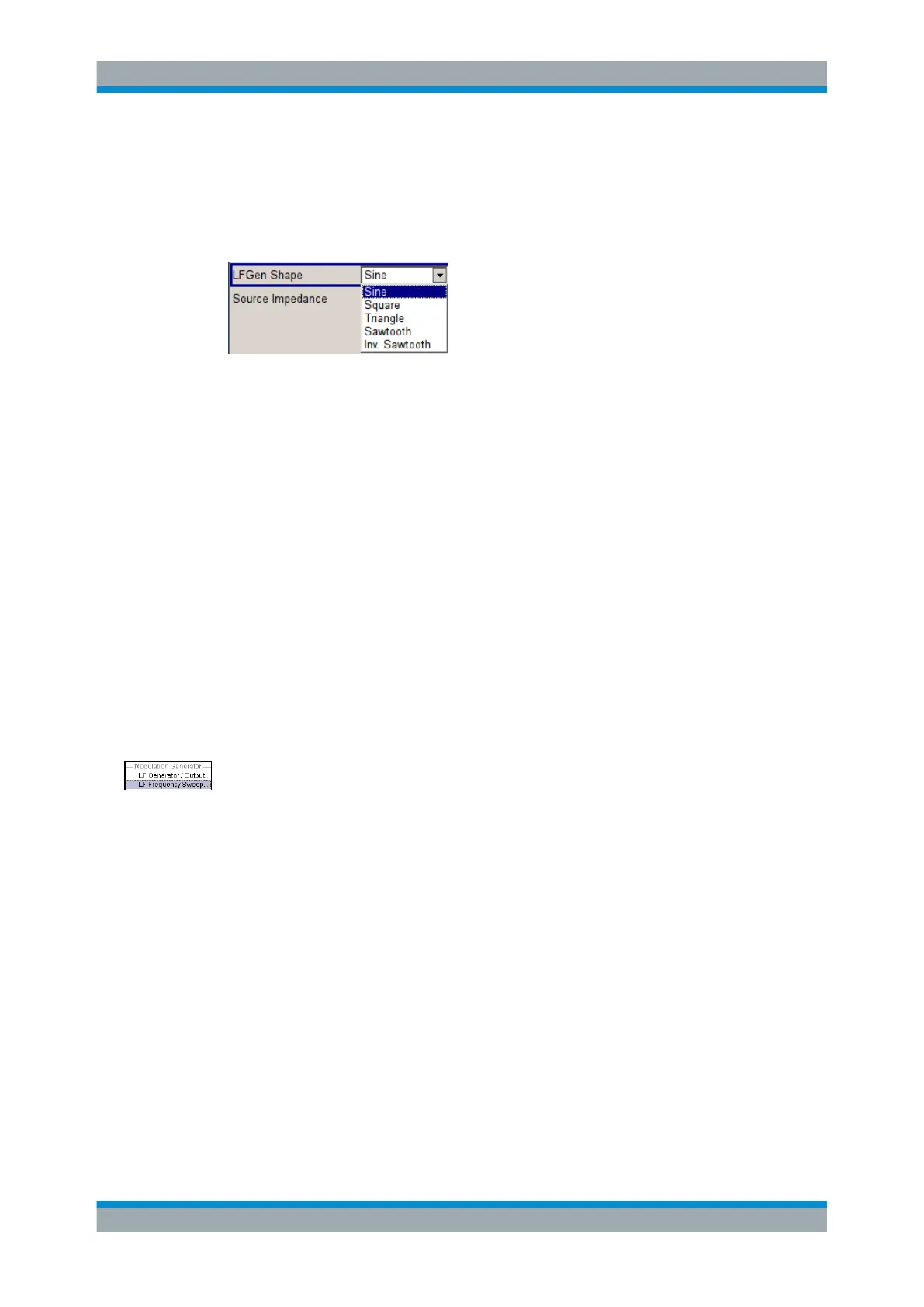

LF Gen Shape

Selects the waveform shape of the LF signal.

Note: The installed hardware determines the available settings. Use the Hardware

Config dialog to check the hardware the instrument is equipped with.

For information on the required hardware revision, refer to the release notes.

Remote command:

[:SOURce]:LFOutput:SHAPe on page 357

LF Source Impedance

Selects the output impedance of the LF generator. Selection LOW and 600 Ohm are

available.

Note: The installed hardware determines the available settings. Use the Hardware

Config dialog to check the hardware the instrument is equipped with.

For information on the required hardware revision, refer to the release notes.

Remote command:

[:SOURce]:LFOutput:SIMPedance on page 358

5.5.3 LF Frequency Sweep

The "LF Frequency Sweep" dialog is used to configure and activate an LF frequency

sweep signal.

To open the "LF Frequency Sweep" dialog, select "Mod Gen > Configure > LF Fre-

quency Sweep" or use the MENU key under "Mod Gen".

The LF sweep mode is activated and the sweep mode is selected. The buttons are

used to reset the LF sweep (all sweep modes) or to execute the LF sweep ("Single"

mode).

The sweep range, sweep spacing and dwell time are set in the bottom of the section.

Modulation Generator and LF Output
