RF Level
Enters the RF level, considering the level offset (see "RF level vs. RF output level"
on page 145).
dBm, dBµV, mV and µV can be used as the level units. The four unit keys are labeled
with these units.
Note: The SCPI command sets the level of the "Level" display, i.e. an entered level off-
set is considered in the level value.
Remote command:
[:SOURce<hw>]:POWer[:LEVel][:IMMediate][:AMPLitude] on page 379
5.3.5.2 RF Level Dialog
Access:

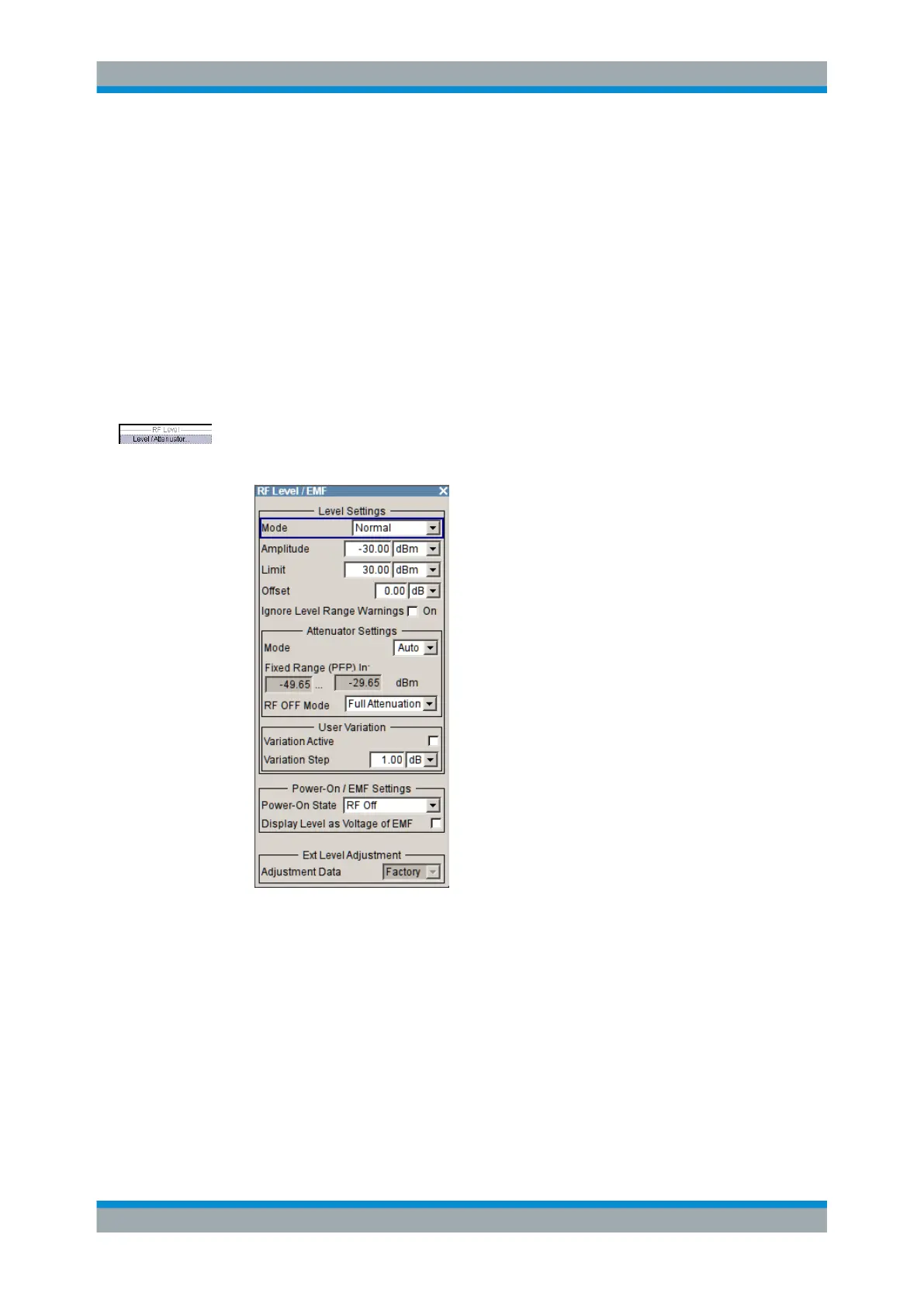

â–º Select "RF > config... > RF Level > Level/Attenuator".
The offset-free level, level offset and level limit are set in the top section of the dia-
log. The attenuator mode is set in the "Attenuator Settings" section.
In section "User Variation", you can determine the step size for adjusting the level
with the rotary knob (with "Variation Active On").
The power-on behavior of the instrument and the level display in the display
header are set in the "Power-On / EMF Settings" section (see Chapter 5.3.5.3,
"Power-On/EMF Settings", on page 151).
The remote commands required to define the settings are described in Chap-
ter 7.13.12, "SOURce:POWer Subsystem", on page 376.
