When switching from remote to manual control, the display update function is automati-
cally deactivated ("SETUP" > "Start/Stop Display Update" > "Off").
5.2.5 Generating a Hard Copy of the Display
The save/recall function enables you to store the settings in a file. In addition, you can
create a hard copy of the current display to save the most important settings of a per-
formed signal generation in an image file.
5.2.5.1 Hard Copy Settings
Creating a hardcopy of the display requires that you have an external keyboard con-
nected to the instrument.
â–º To access the dialog, use the key combination CTRL+Z, or CTRL+Y depending on
the used keyboard settings.

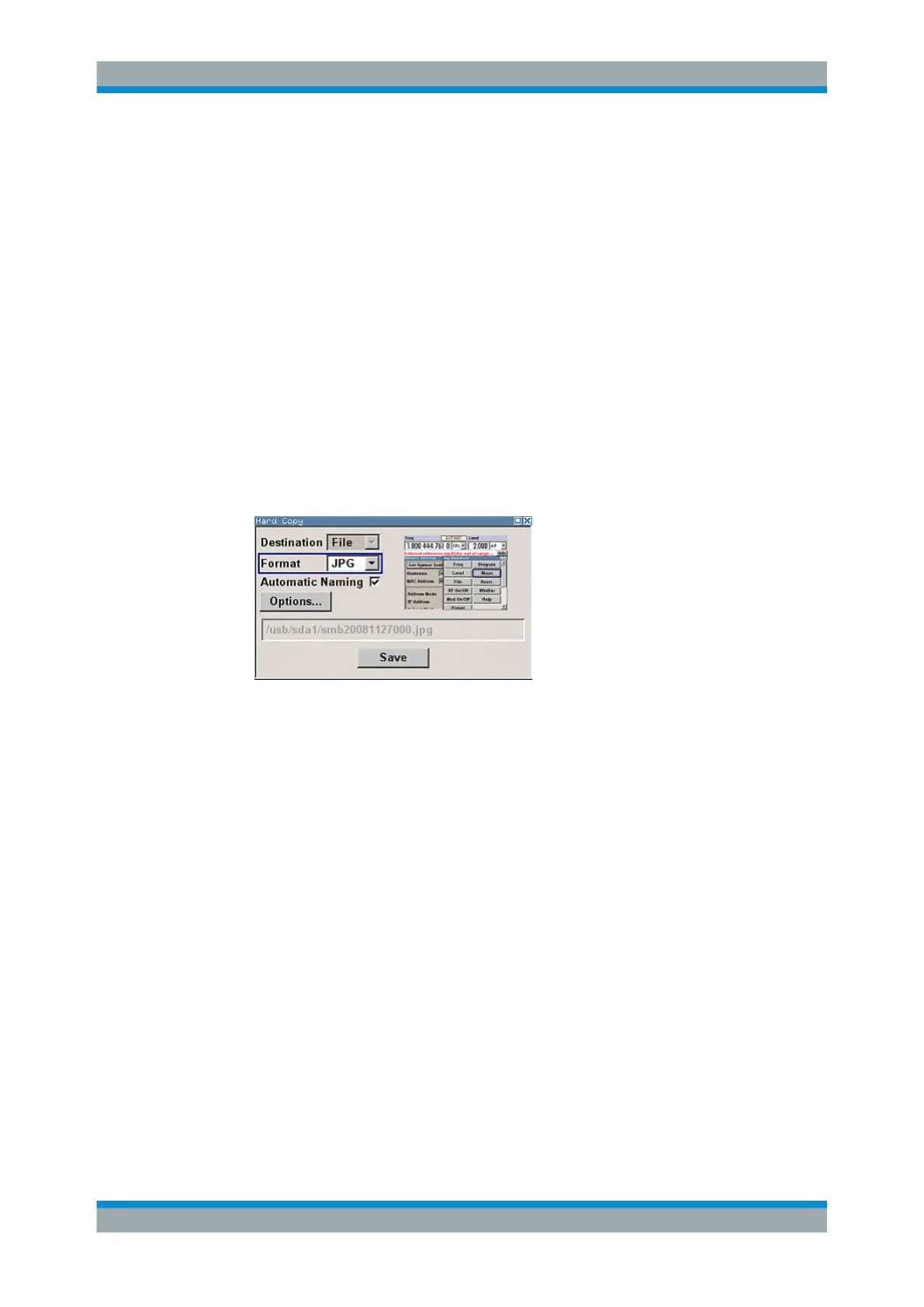

The dialog contains the parameters for configuring the output format and location
of a hardcopy.
The remote commands required to define the hard copy settings are described in
Chapter 7.8, "HCOPy Subsystem", on page 294.
Destination
Indicates that the hardcopy is stored in a file (see also "File Options" on page 123).
Remote command:
:HCOPy:DEVice on page 295
Options
Opens the "Hardcopy Options" dialog for configuring the corresponding parameters
(see "File Options" on page 123.
Remote command:
n.a.
File
Some configuration parameters are already offered in the Hardcopy dialog. All configu-
ration parameters are available in "File Options" on page 123.
