R&S SMB100A User Manual

Instrument Function
R&S
®
SMB100A
213Operating Manual 1407.0806.32 ─ 21

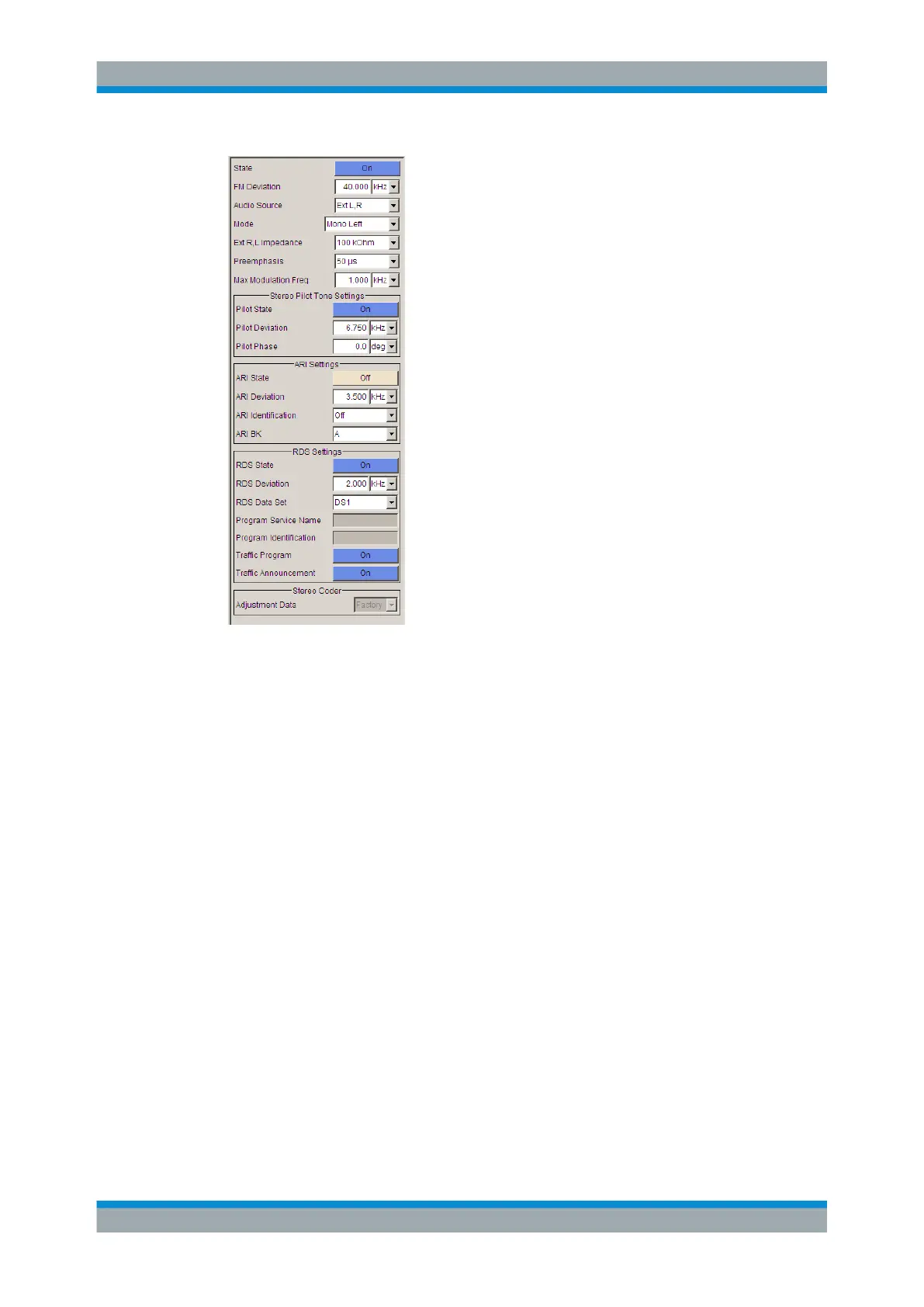

General Settings
State - Stereo Modulation
Activates/deactivates stereo modulation.
Remote command:
[:SOURce]:STEReo:STATe on page 416
FM Deviation - Stereo Modulation
Sets the MPX (Multiplex stereo signal) deviation.
Remote command:
[:SOURce]:STEReo[:DEViation] on page 417
Audio Source - Stereo Modulation
Selects the source for the audio signal.
"Off"
No audio signal is provided, ARI and RDS signal can be generated
separately.
"Ext L,R"
The external audio stereo signal is feed in via the analog L and R
inputs.
"Ext S/P Diff"
The external audio signal is feed in via the digital S/P DIF input.
"LF Gen"
The audio stereo signal is internally generated by the LF generator.
Remote command:
[:SOURce]:STEReo:SOURce on page 416
