Instrument Function

R&S

SMB100A

186Operating Manual 1407.0806.32 ─ 21

Stop Level - Level Sweep

Sets the stop level.

Remote command:

[:SOURce<hw>]:POWer:STOP on page 387

Current Level - Level Sweep

Displays the current level.

If "Step" is set, the level for the next level step of the sweep is entered here.

Remote command:

[:SOURce<hw>]:POWer:MANual on page 382

Shape - RF Level Sweep

Selects the cycle mode for a sweep sequence (shape).

"Sawtooth"

One sweep runs from the start level to the stop level. The subsequent

sweep starts at the start level again, i.e. the shape of sweep

sequence resembles a sawtooth.

"Triangle"

One sweep runs from start to stop level and back, i.e. the shape of

the sweep resembles a triangle. Each subsequent sweep starts at the

start level again.

Remote command:

[:SOURce<hw>]:SWEep:POWer:SHAPe on page 427

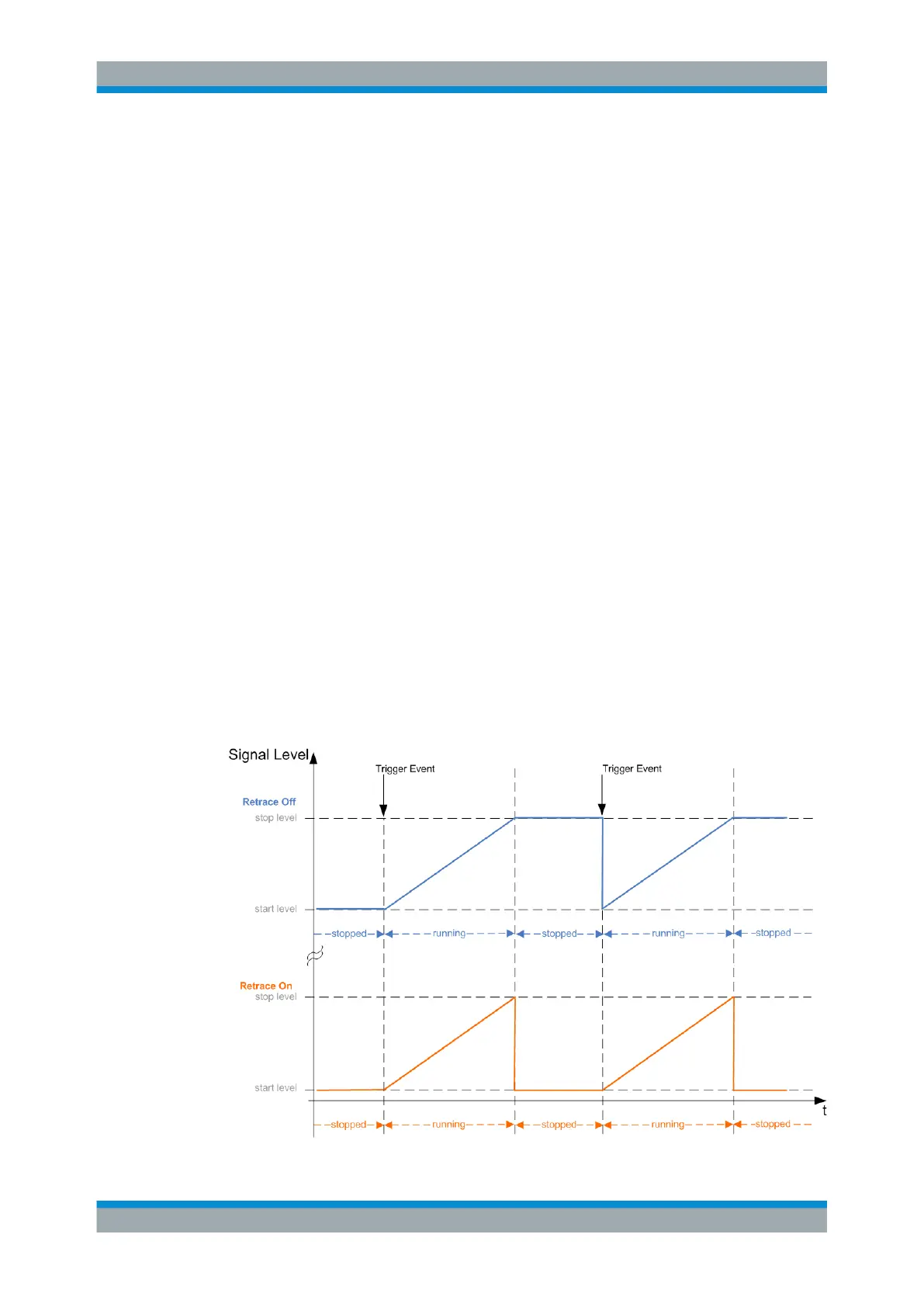

Retrace - RF Level Sweep

Activates that the signal changes to the start level value while it is waiting for the next

trigger event. It allows you to shift down the power during the waiting period.

You can enable this feature, when you are working with sawtooth shapes in sweep

mode "Single" or "External Single", see Mode - Level Sweep.

RF Block
