Instrument Function
R&S
®
SMB100A
109Operating Manual 1407.0806.32 ─ 21

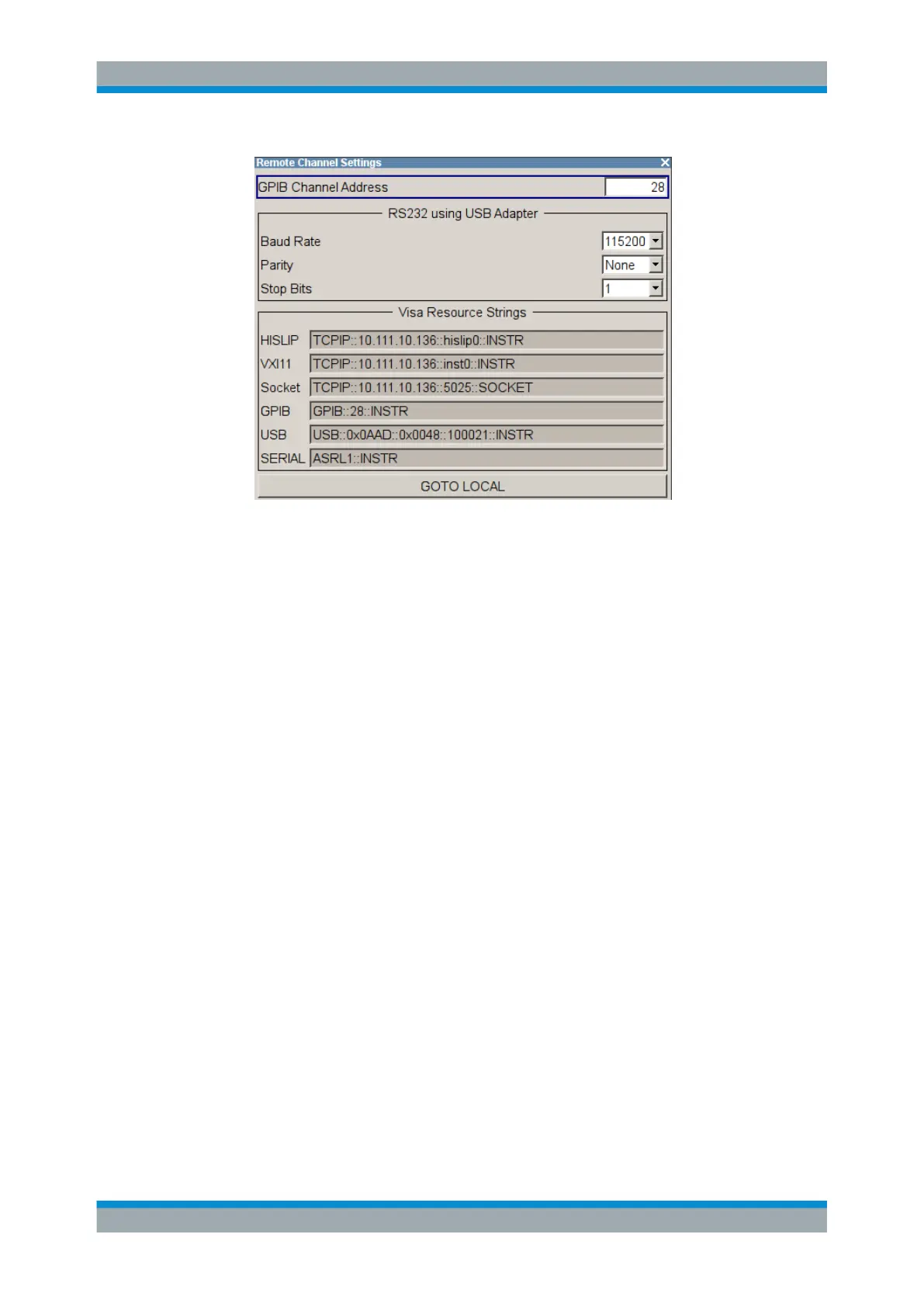

The "Remote Channel Settings" dialog contains the GPIB address and displays the
VISA resource strings provided for remote control via the various interfaces.
GPIB channel address
Sets the address of the GPIB channel the instrument is connected to.
Remote command:
:SYSTem:COMMunicate:GPIB[:SELF]:ADDRess on page 438
RS232 using USB adapter
Remote control via a serial interface is possible via a USB. The controller and the
instrument must be connected with the external USB/serial-adapter R&S TS1-USB
(see recommended extras in the data sheet) and a serial crossover (null modem)
cable. A USB connection requires the VISA library to be installed on the controller.
VISA will detect and configure the R&S SMB automatically when the USB connection
is established.
In addtion, you can also use a Bluetooth connection for remote control via the serial
interface. The settings are effective for both interfaces (see also Chapter 5.2.3.18,
"Security", on page 114 ).
Baud Rate ← RS232 using USB adapter
Sets the baudrate for the serial remote control interface.
Remote command:
:SYSTem:COMMunicate:SERial:BAUD on page 442
Parity ← RS232 using USB adapter
Sets the parity for the serial remote control interface.
Remote command:
:SYSTem:COMMunicate:SERial:PARity on page 442
General Instrument Settings
