R&S SMB100A User Manual

Instrument Function
R&S
®
SMB100A
129Operating Manual 1407.0806.32 ─ 21
Recent files
Displays the files last used.

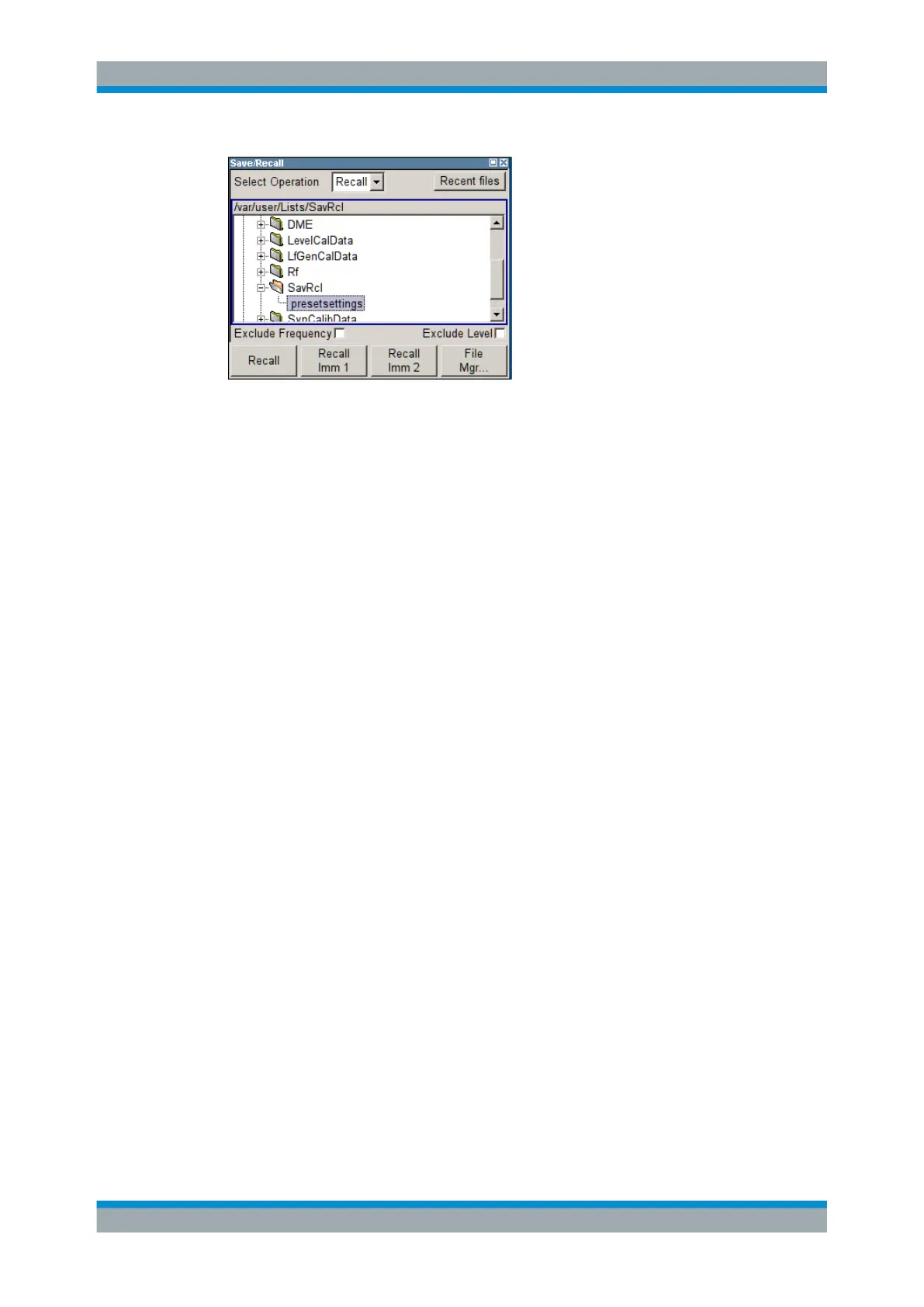

Directory, File List and File Name
Note:
You access this generic standard function each time you perform one of the following:
●
store or load (settings) files
●
define a folder these files are to be stored in or
●
navigate through the file system.
The name of the dialog is context sensitive but the provided functions are self-explana-
tory and very similar.
With the provided settings, you can perform the following:
●
to navigate through the file system, use the directory tree
●
to load and store files, use the dedicated functions "Select", "Save" and Recent
files
●
to perform standard file management functions, like create new directories, move,
copy, delete files and/or directories, use the standard "File Manager" function (see
"File Manager" on page 128).
Remote command:
to list all files in a directory:
:MMEMory:CDIRectory on page 306
:MMEMory:CATalog? on page 306
[:SOURce]:CORRection:CSET:CATalog? on page 329
Exclude Frequency
The current frequency is retained when a stored instrument setting is loaded.
Remote command:
[:SOURce<hw>]:FREQuency[:CW|FIXed]:RCL on page 342
Exclude Level
The current level is retained when a stored instrument setting is loaded.
Remote command:
[:SOURce<hw>]:POWer[:LEVel][:IMMediate]:RCL on page 380
Recall
Load the selected configuration.
General Instrument Settings
