R&S SMB100A User Manual

Instrument Function
R&S
®
SMB100A
142Operating Manual 1407.0806.32 ─ 21
Settings:
– Source: "Internal"
●
External f
ref
= 10 MHz (10 MHz REF OUT)
If you have a clean external reference signal with 10 MHz frequency, you can
directly pass it to the output. The signal quality remains the same.

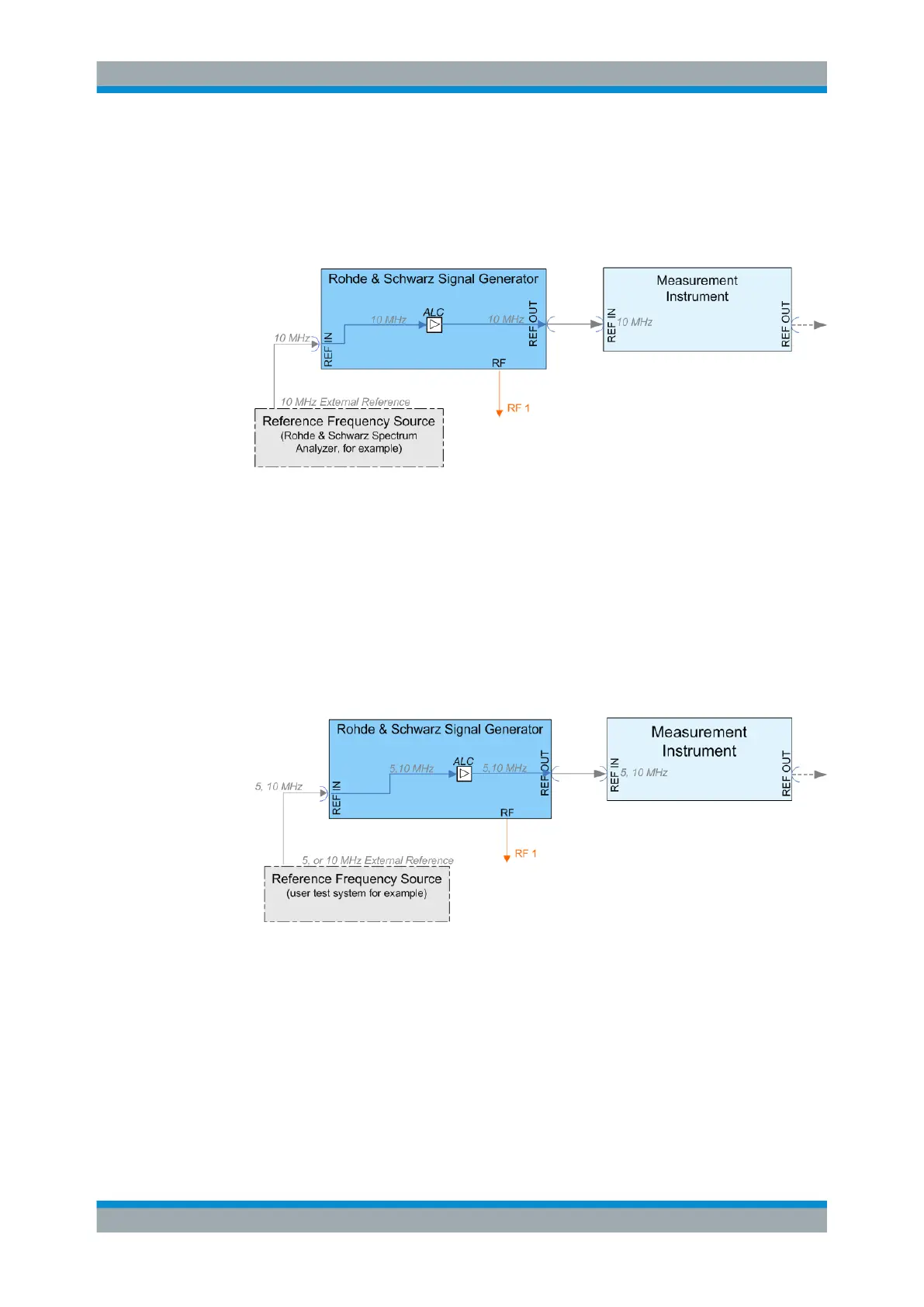

Figure 5-2: Synchronizing instruments by means of an externally applied reference signal having
10 MHz
Settings:
– Source: "External"
– External Reference Frequency: "10 MHz"
Set the additionally provided parameters, as for example the synchronization band-
width according to the requirements of the application.
●
External f
ref
= 5/10 MHz (5/10 MHz REF OUT)
If you have an external reference signal with 5 or 10 MHz, you can directly pass it
to the output. The signal quality remains the same.
Figure 5-3: Synchronizing a subsequent instrument an externally applied reference frequency of
5 or 10 MHz
Settings:
– Source: "External"
– External Reference Frequency: "5 or 10 MHz"
RF Block
