● Select "RF > config... > RF Measurement > NRP-Z Power Viewer".
● Press the MENU key and select "RF > RF Measurement > NRP-Z Power
Viewer".

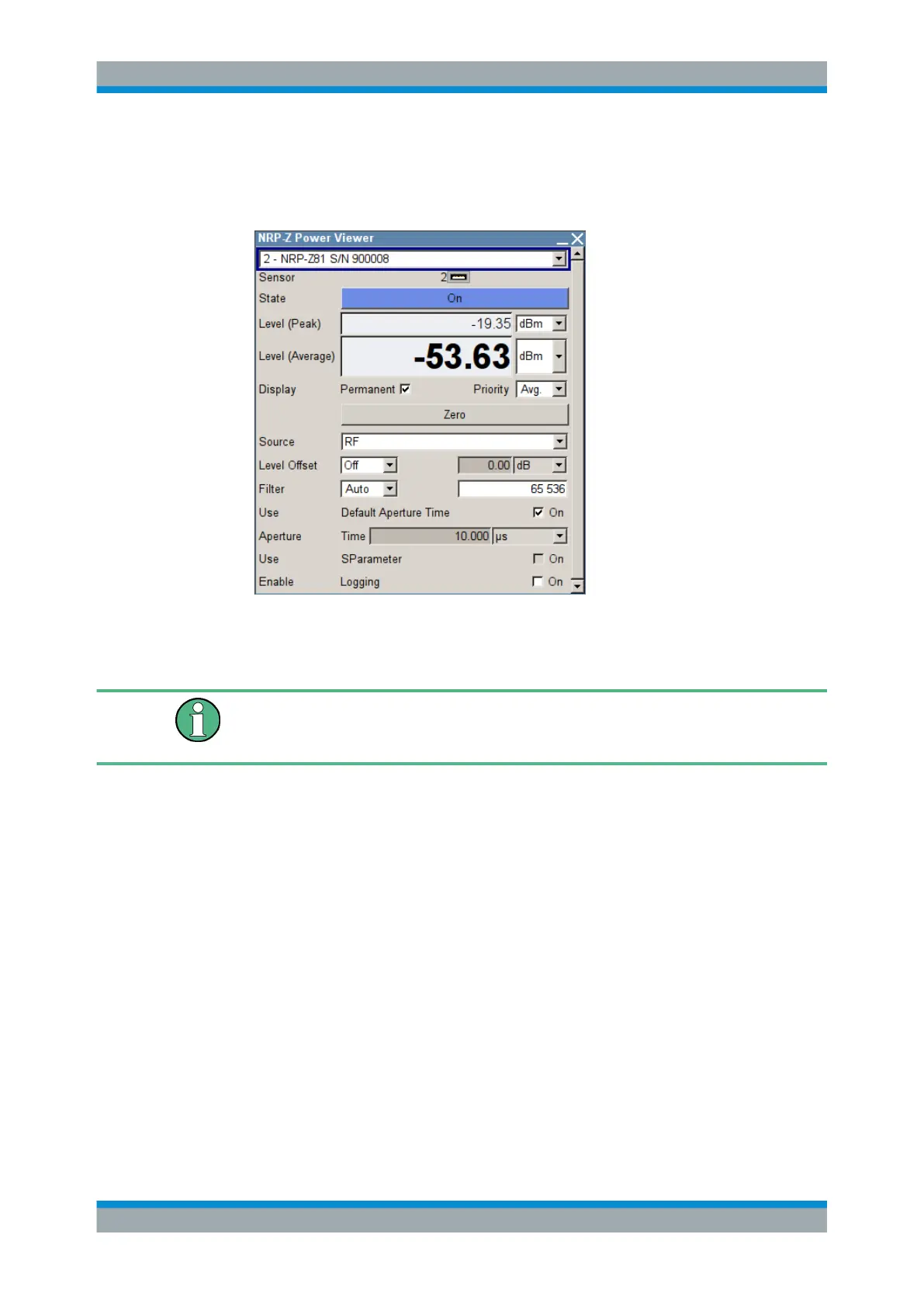

The dialog shows the settings and measurement values of the sensor selected in
the field next to the connector symbol. For indicating the parameters of another
sensor, switch to the respective sensor in the selection list.
When you connect your power sensor(s) via the R&S NRP-Z5 USB sensor hub, each
channel of the hub is firmly assigned to the associated sensor channel in the genera-
tor.
The remote commands required to define the settings are described in Chapter 7.12,
"SENSe, READ and INITiate Subsystems", on page 315.
Sensor
Selects the R&S NRP-Z power sensor for display.
In remote control, the sensors are set up using the SENSe commands. The remote
measurement is triggered by the READ query which also provides the measurement
results.
The sensor is selected by suffix 1, 2, 3 or 4 in key word SENSe or READ of the com-
mand header.
Suffix 1 denotes the sensor connected at the first USB interface, and suffix 2, 3 and 4
are assigned to further sensors connected via USB. The suffix is identical to the index
which is assigned automatically to each sensor upon connection.
Note: The software version of the connected power sensor can be retrieved by means
of the remote control command :SENS:POW:TYPE?.
Use the "Setup >" Chapter 5.2.3.5, "NRP-Z Info/Update", on page 97 dialog to update
the sensor software.
