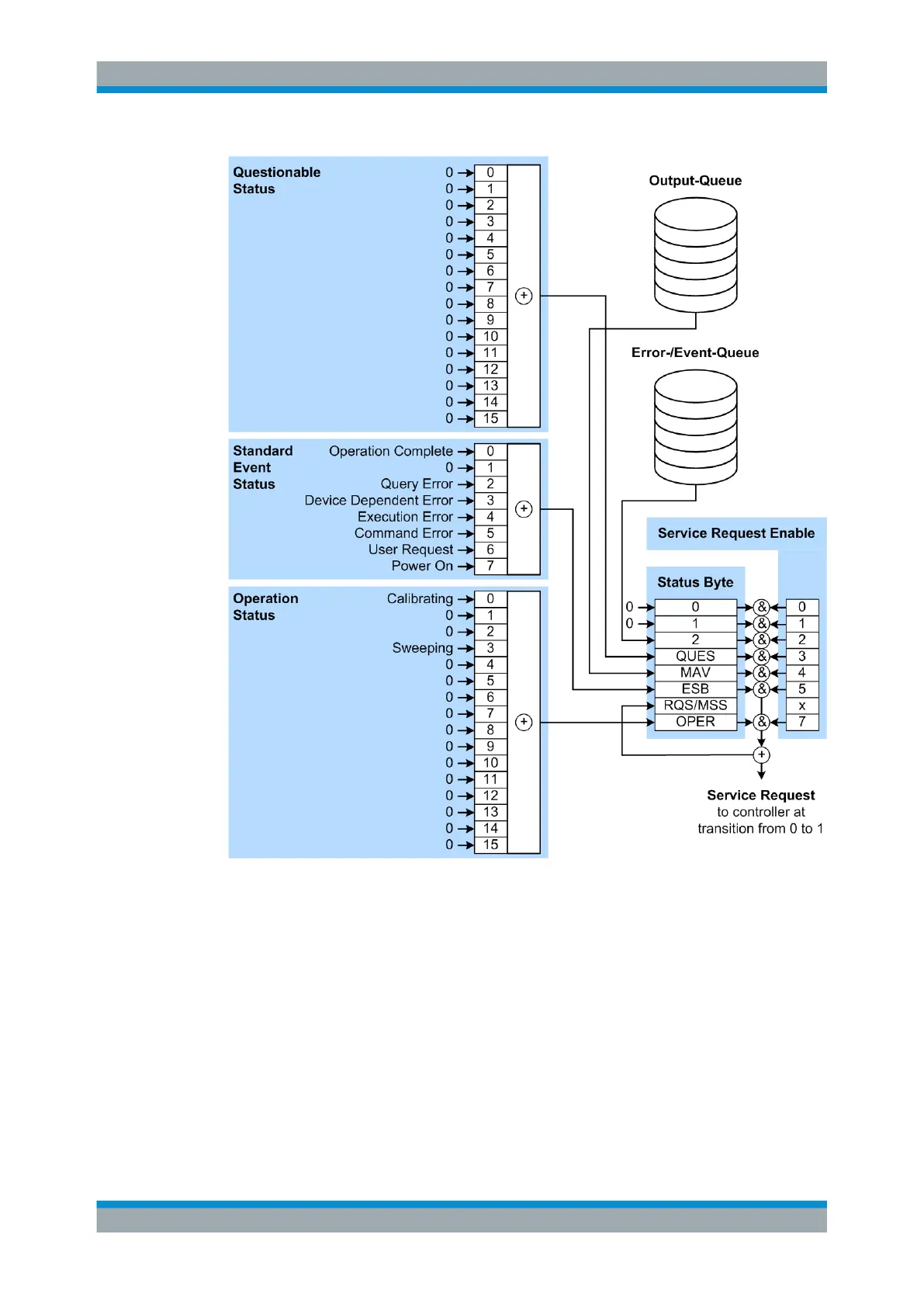

Figure 6-1: Graphical overview of the status registers hierarchy

OPER = Operation Status Summary Bit

RQS/MSS = Service Request Generation

ESB = Standard Event Status Summary Bit

MAV = Message Available in Output Queue

QUES = Questionable Status Summary Bit

2 = Error- /Event-Queue

1, 0 = not used

Note: This legend explains the abbreviations to the Status Byte Register.

The R&S SMB uses the following status registers:

●

Status Byte (STB) and Service Request Enable (SRE), see Chapter 6.5.3, "Sta-

tus Byte (STB) and Service Request Enable Register (SRE)", on page 273.
