5. Attach the top front cover extension [E] ( x 2, M4 x 8).
6. Attach the rear cover extension [F] ( x 2, M3 x 6).
Attaching the Interposer Tray (B700/B706)

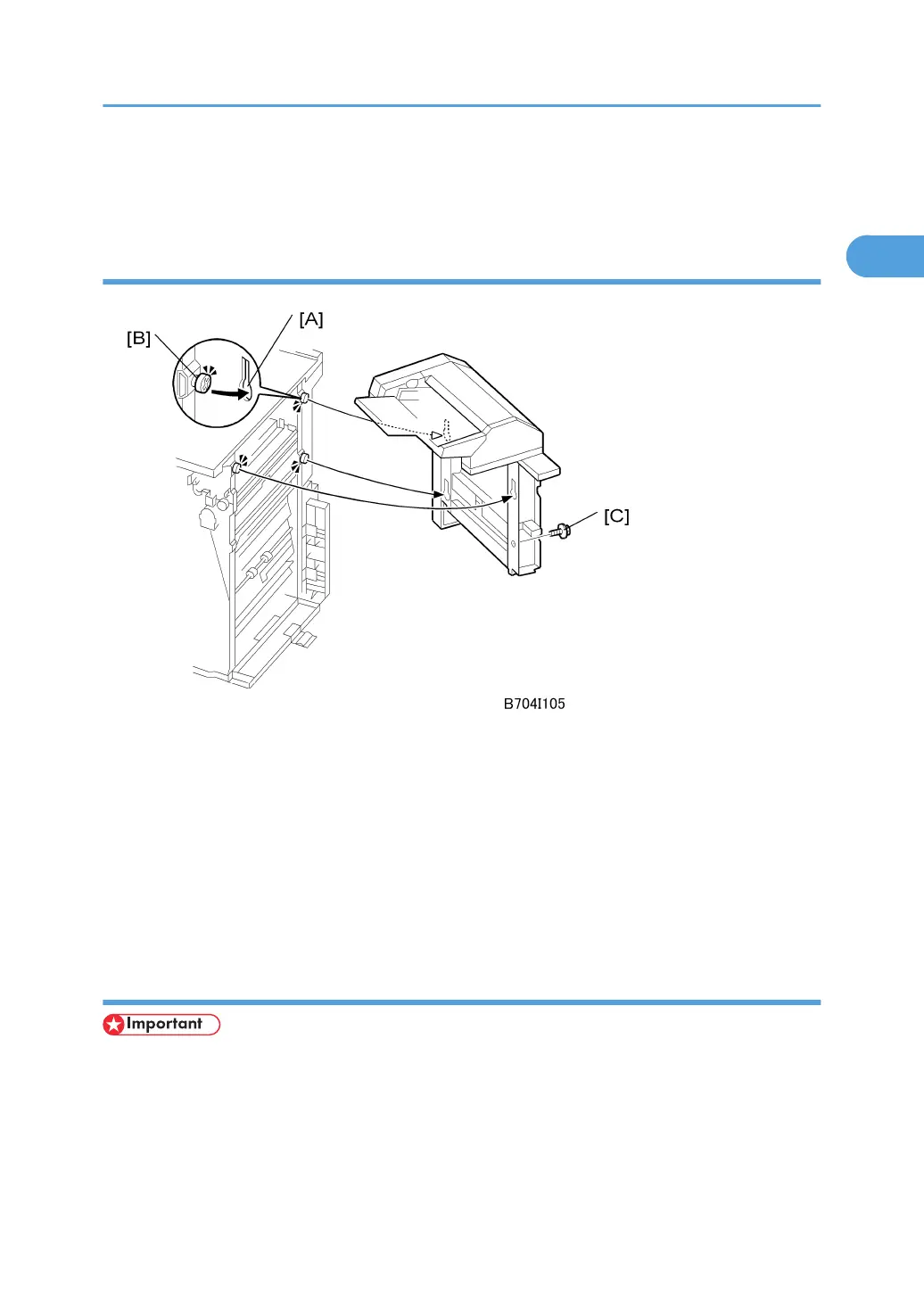

1. Pick up the cover interposer tray, align the keyholes [A] with the shoulder screws [B], then
slide the cover interposer down onto the screws.
2. Secure the cover interposer with the screw [C] ( x 1, M3 x 6).
3. Do one of the following:
• If you are installing the cover interposer tray on the B700, skip the next section and see “”.
• If you are installing the cover interposer tray on the B706, go to the next section, install the corner
plates on the B706, then see “”.
Attaching the Corner Plates for the B706
• Important!: The corner plates are installed on the B706 only.
Cover Interposer Tray (B704)
