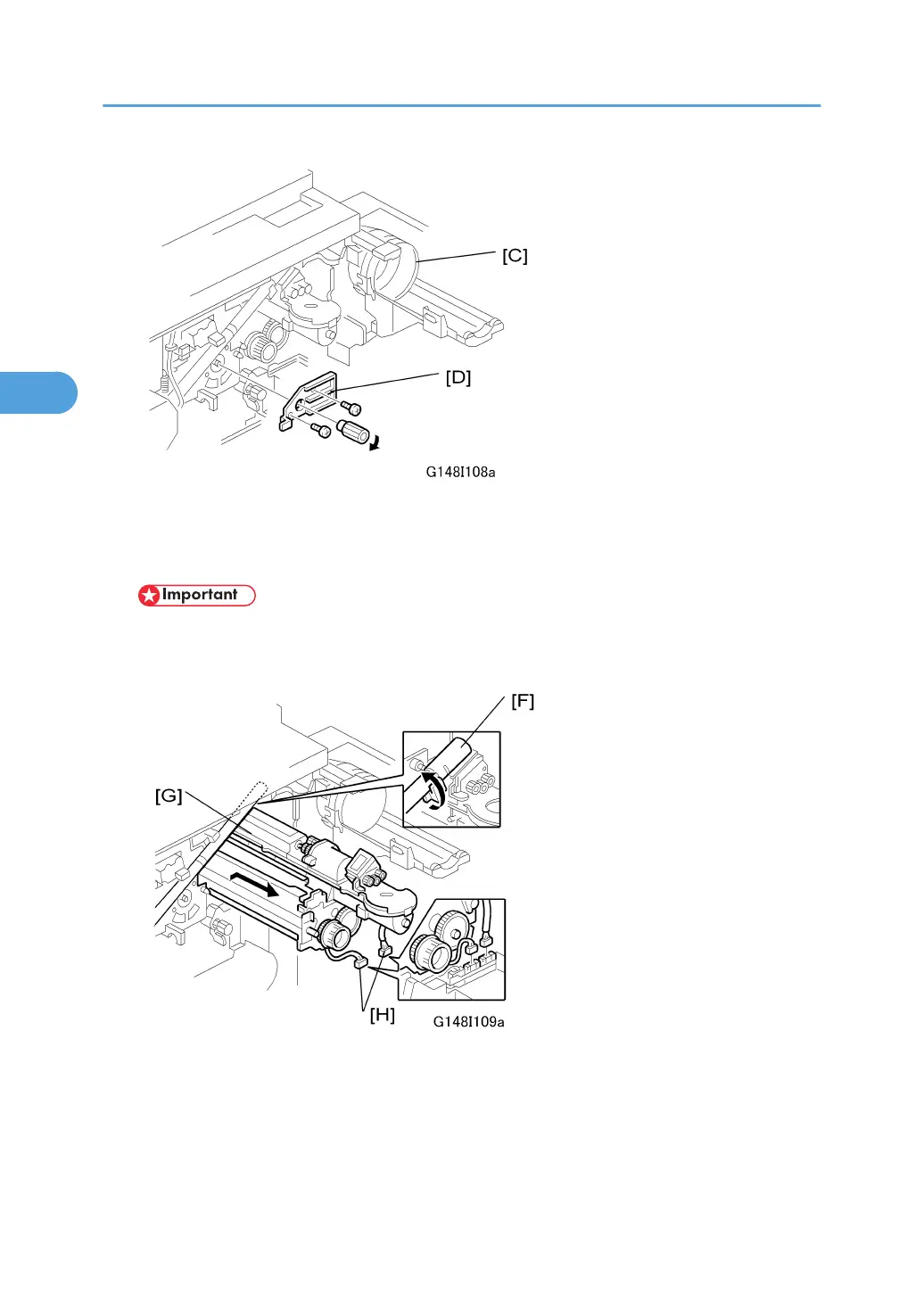

4. Toner bottle [C]. Pull the toner bottle holder out and swing the toner bottle holder to the
right.
5. Face plate (knob x 1, x 2) [D]
• After re-installation, the tab [E] in the first illustration should be behind the stay and its pin below
should be in the open track below.
6. Close the supply pipe shutter [F]
7. Development unit [G] ( x 2 [H])
• Allow the unit to slip to the right, then slowly pull it out of the machine.
• If the LCT is installed, you may need to disconnect it so the front door can open far enough to
allow removal of the development unit.
