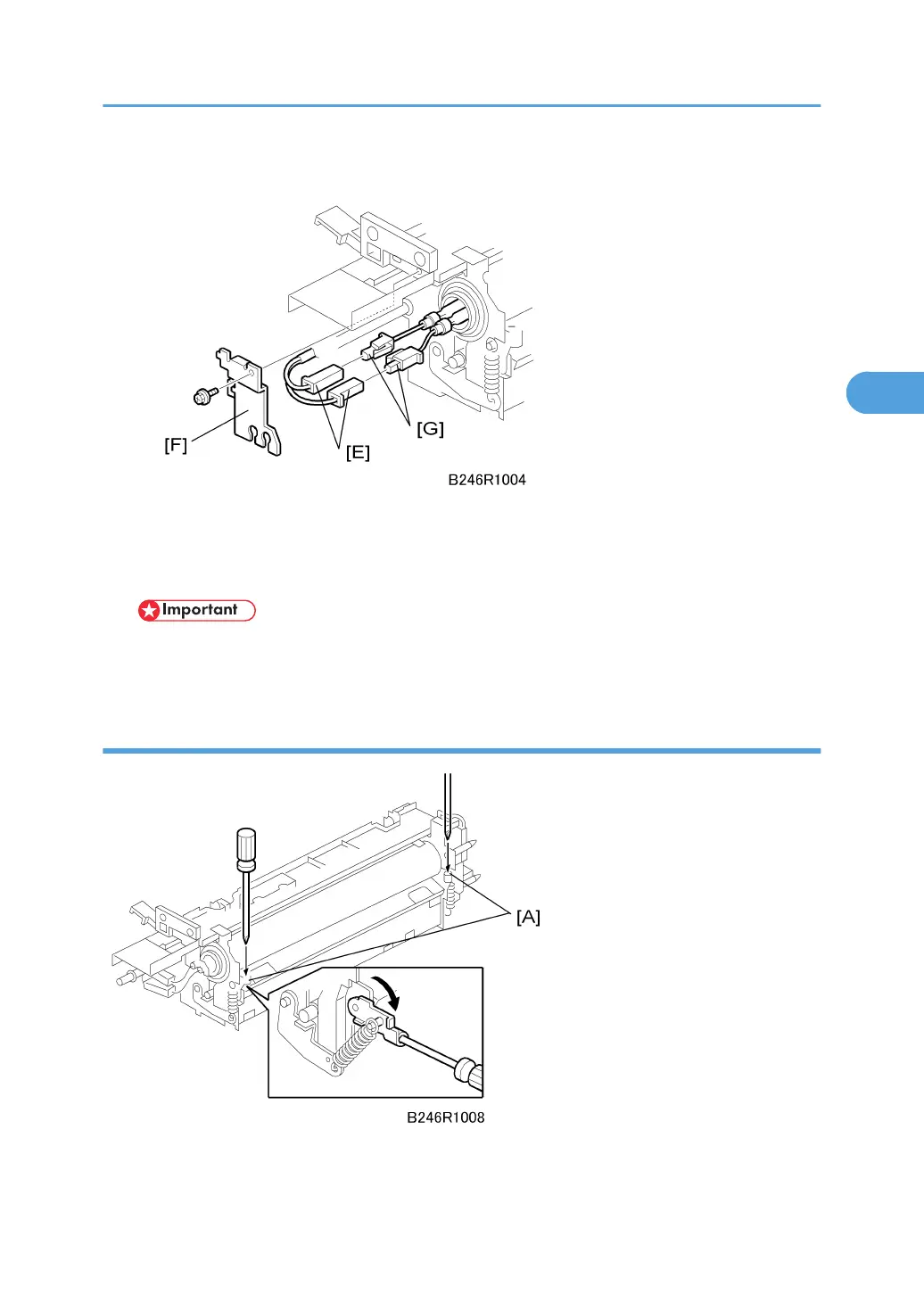

4. Rear fusing lamp holder [D] ( x 1)
5. Fusing lamp connectors [E] ( x 2)
6. Front fusing lamp holder [F] ( x 3)
7. Fusing lamps [G]
• Handle the fusing lamps carefully to prevent breaking them; avoid touching them with bare
hands.
Hot Roller With Pressure Roller
Remove:
• Web unit. See "Web Unit Disassembly"
Fusing Unit
