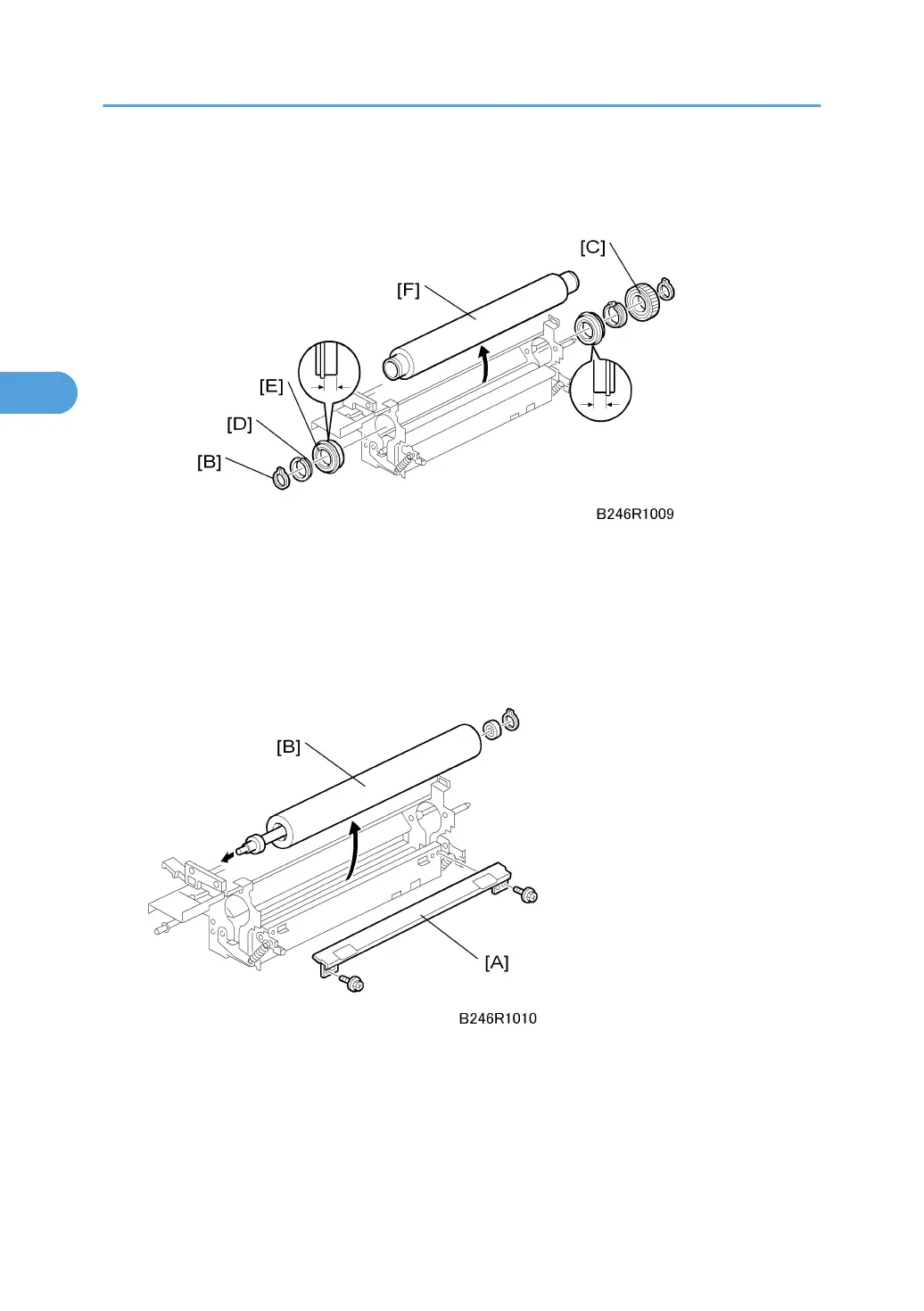

1. Pressure arm [A]
• Insert the tips of two screwdrivers and press down to release.
2. C-clamps [B] (both ends)
3. Drive gear [C]
4. Bushings (both ends) [D]
5. Bearings [E]
6. Hot roller [F]
7. Entrance guide plate [A] ( x 2)
8. Pressure roller [B] ( x 2)
• The pressure roller and pressure roller bearing should always be replaced together.
3. Replacement and Adjustment
188
