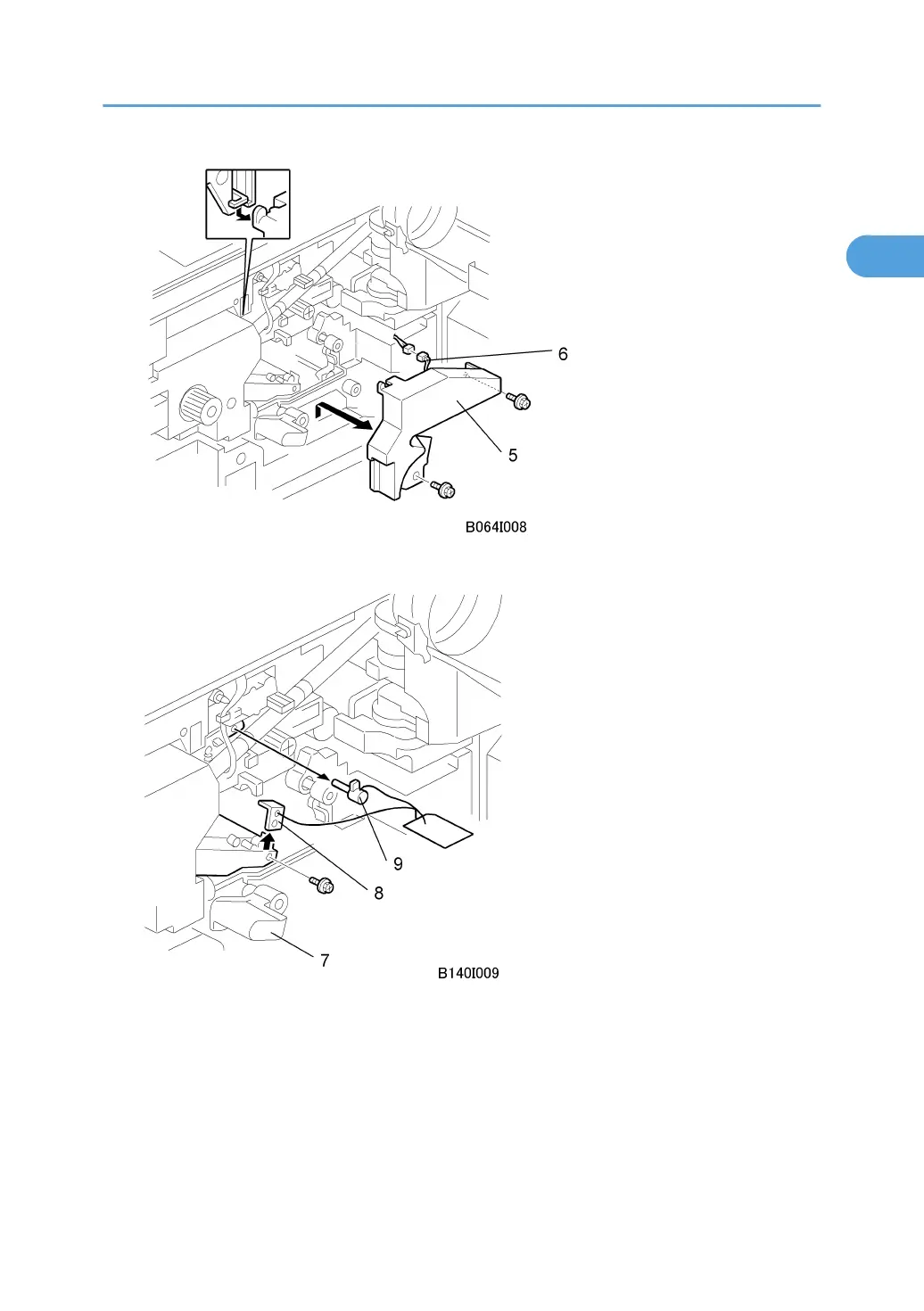

7. Remove the PCU inner cover [5] ( x 2) and disconnect the fan motor [6] ( x 1).
8. Lower the transfer unit by turning its knob [7].
9. Remove the bracket [8], and the red tag from the transfer belt ( x 1).
10. Remove the pin [9], and the red tag from the cleaning blade.
Main Machine (G148)
