• If the door does not close, make sure that the pipe line shutter is rotated down. (See Step 7
above.)

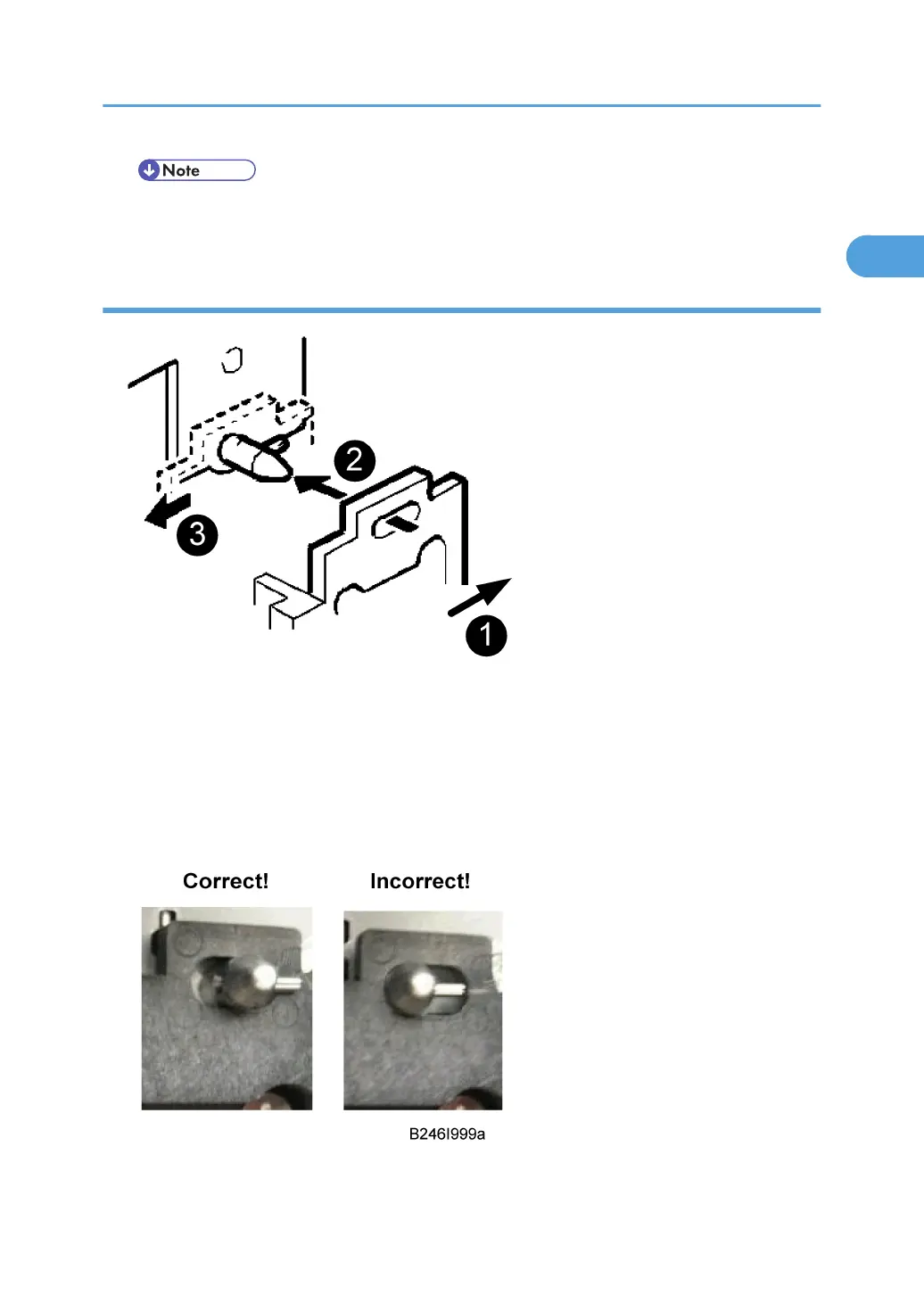

Re-installing the Development Unit
1. Push the development unit to the right. ¶
2. While continuing to hold the unit to the right, push it into the machine.
3. Confirm that the pin [A] goes into the left side of the oval hole [B] in the development unit
plate.
4. Push the development unit in completely · until it stops, then push it to the left. ¸
5. Make sure you can see the horizontal pin in front of the plate as shown below.
Main Machine (G148)
35
