Timing

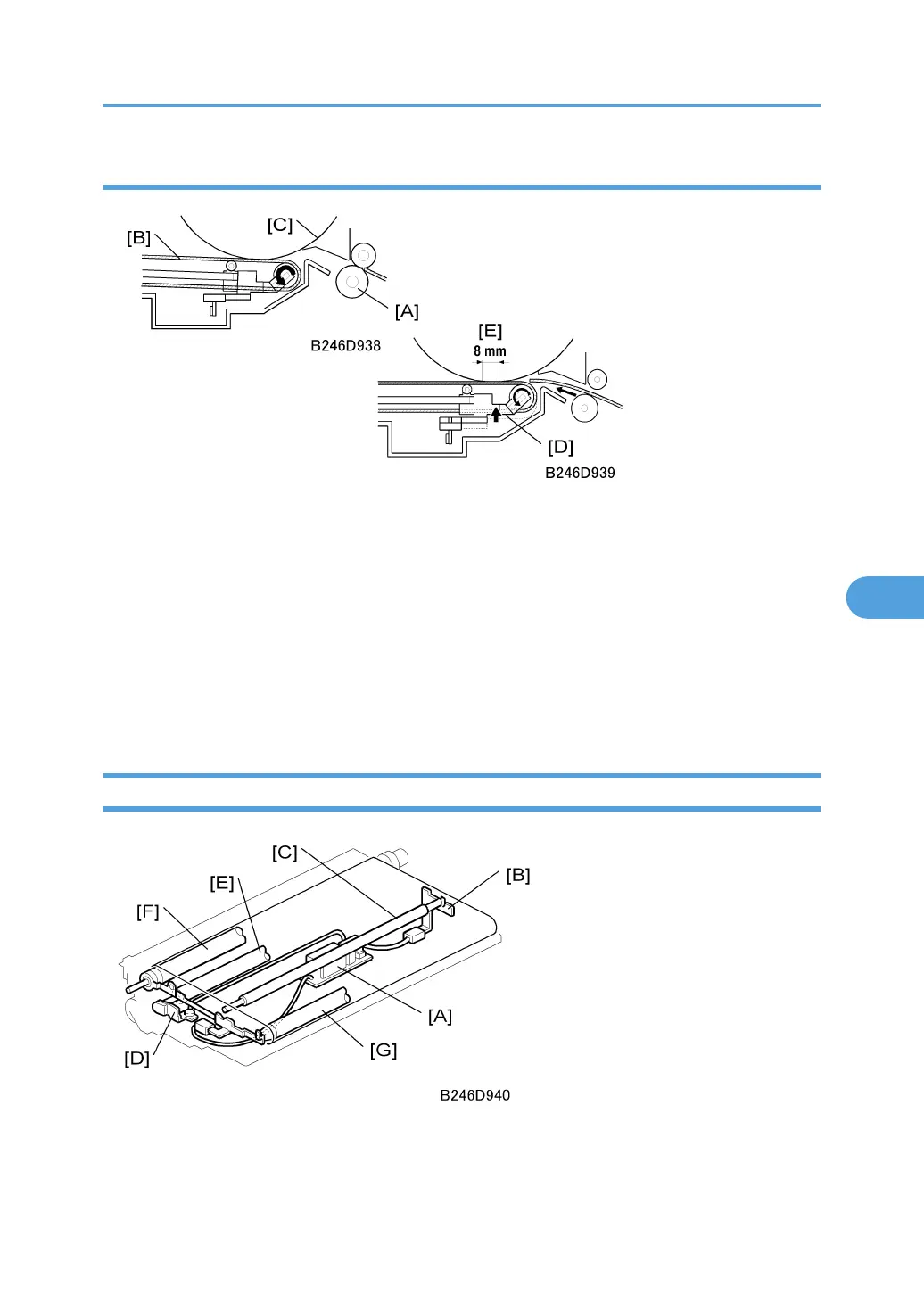

[A] Registration roller
[B] Transfer belt
[C] OPC drum
[D] Front and back levers
[E] Nip width (about 8 mm)
The transfer belt stays away from the OPC drum until 500 ms after the drum motor starts. Then the transfer
belt lift solenoid switches on to lift the belt.
At the end of the job, the solenoid switches off, and the transfer belt unit lowers away from the drum.
Transfer Belt Charge
The transfer power pack [A], inside the transfer belt unit, applies the following charges:
• Transfer Roller: Max. +7.0 kV through terminal [B] to the transfer roller [C].
Image Transfer and Paper Separation
