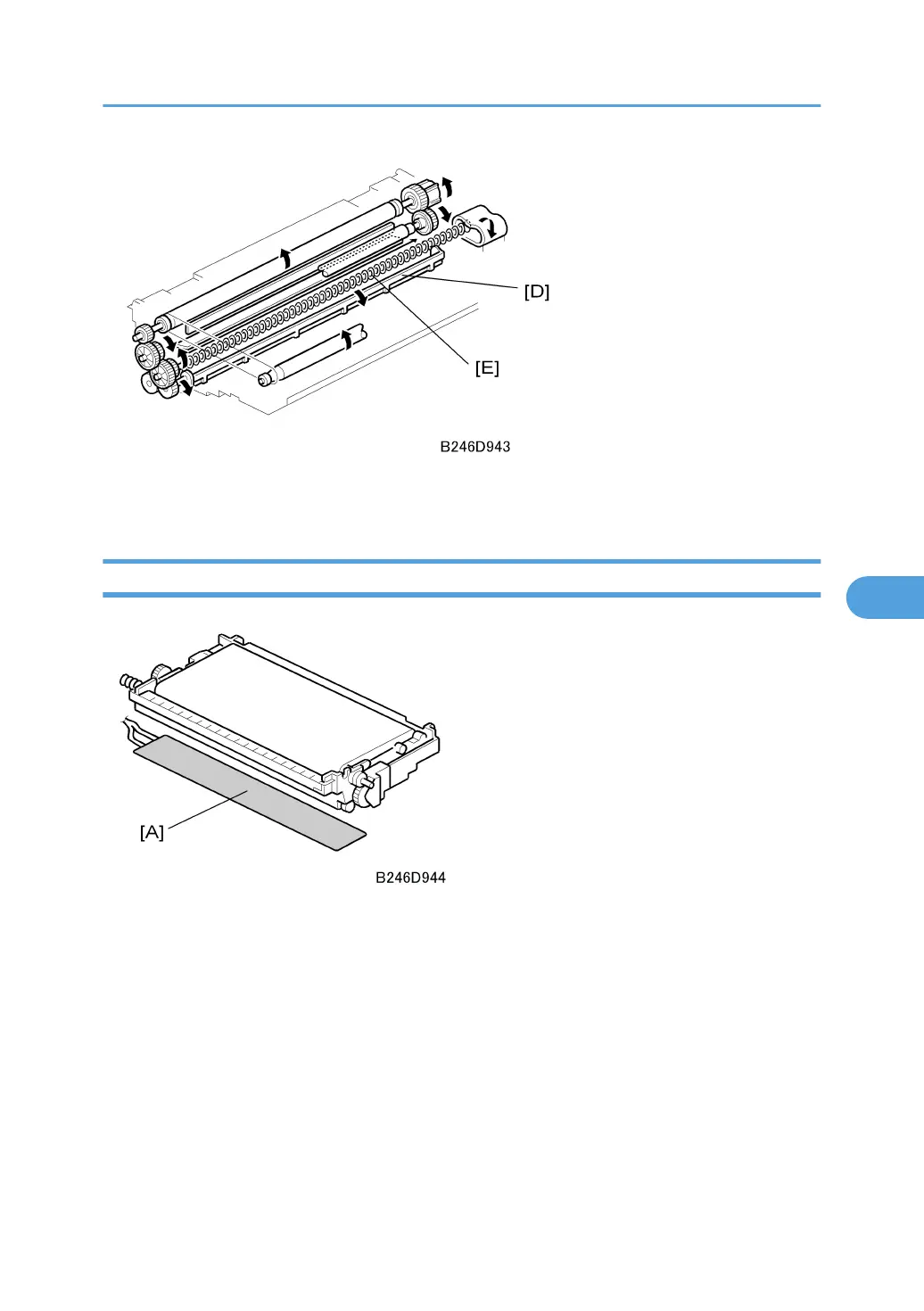

Toner scraped from the cleaning roller drops it onto the agitator plate [D]. The plate [D] moves the toner
into the collection coil [E]. The coil takes the toner to the toner collection bottle.
Anti-Condensation Heater
The anti-condensation heater [A] is directly below the transfer belt drive roller.
This anti-condensation heater turns on automatically at the following times:
• When the power switch is turned off
• When the machine enters auto off mode
Image Transfer and Paper Separation
