Paper Feed

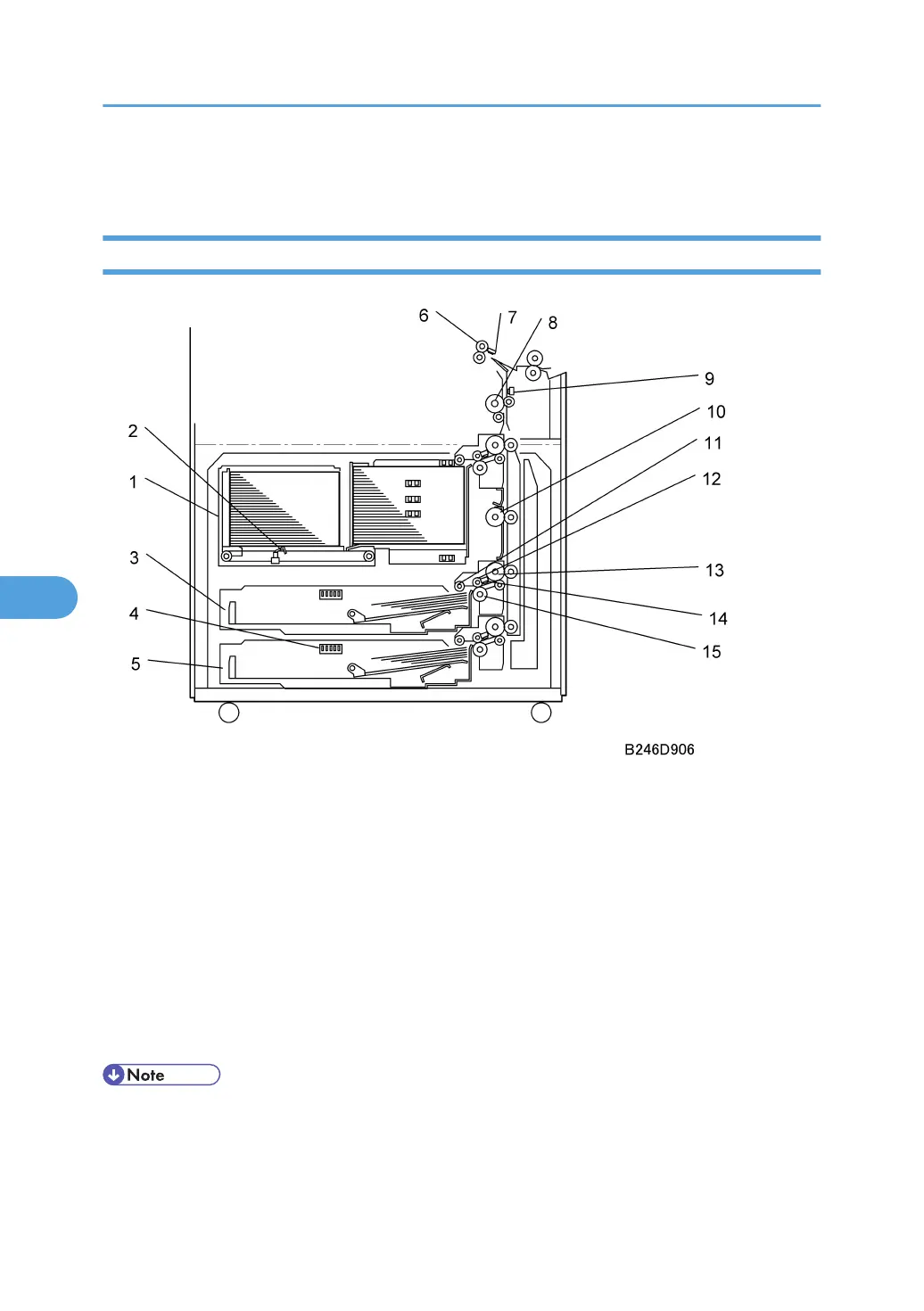

Overview
1. Tandem Tray (Tray 1)
2. Left Tray Paper Sensor
3. Universal Tray (Tray 2)
4. 3rd Paper Size Switch
5. Universal Tray (Tray 3)
6. Registration Roller
7. Registration Sensor
8. Upper Relay Roller
9. Relay Sensor
10. Lower Relay Roller
11. Pick Up Roller
12. Feed Roller
13. Grip Roller
14. Paper Feed Sensor
15. Separation Roller
• Items (12)~(16) comprise the standard FRR feed system, which is used for Trays 1, 2, and 3. This
machine uses motor on/off time (not clutches) to control paper feed.
Tray Capacities
6. Details
480
