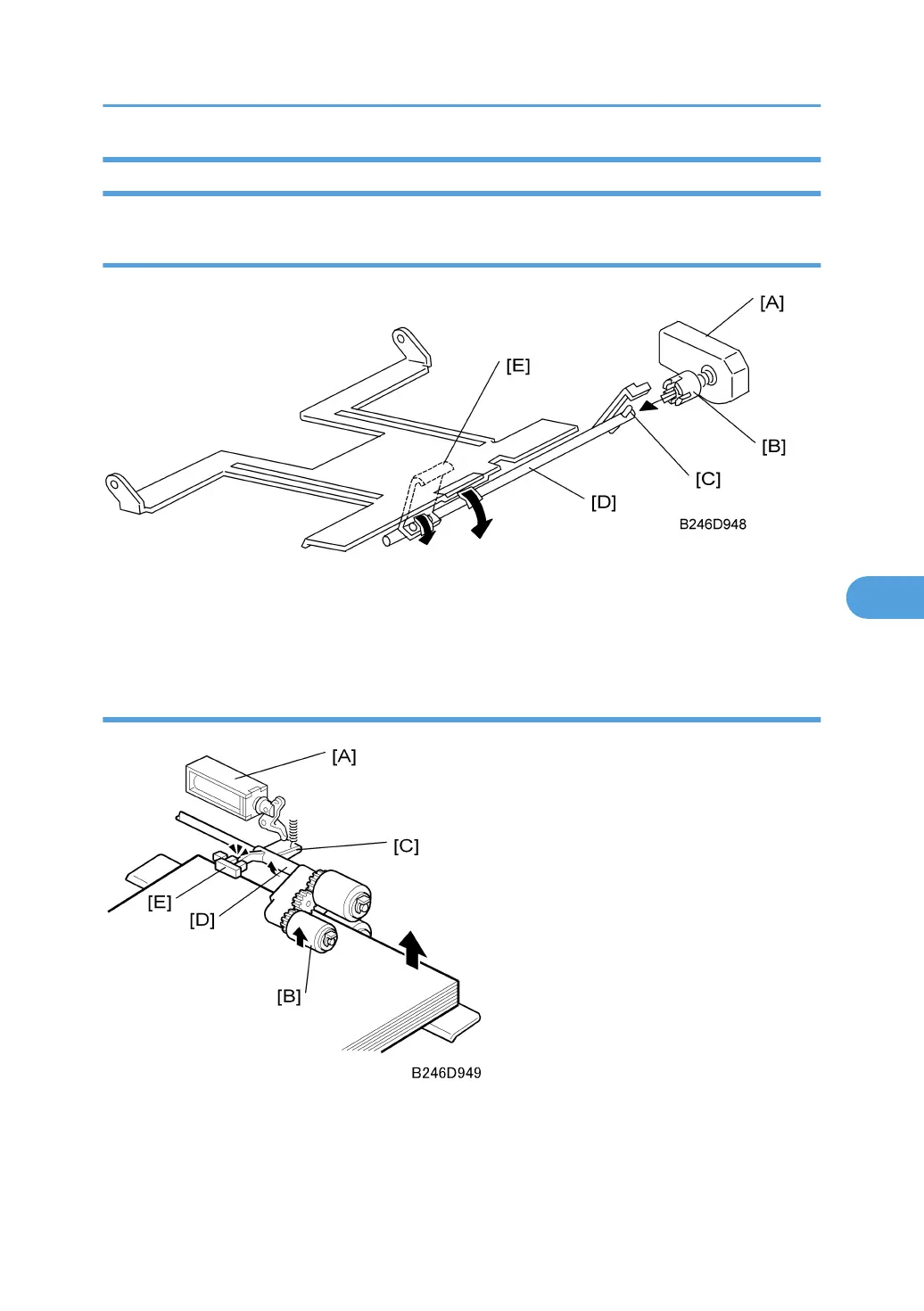

Tray and Paper Lift Mechanism – Tray 2,3
Bottom Plate Lift
Tray lift motor [A] > Coupling [B] > Pin [C] > Shaft [D] > Lift arm [E] (under the bottom plate).
The universal trays (Tray 2, Tray 3) are not provided with near end sensors. The pulse count of the tray lift
motor is used to signal near end.
Lift Sensor
When the tray lift motor turns on, the pick-up solenoid [A] turns on, and pick-up roller [B] lowers.
When the top sheet of paper reaches the proper paper feed level, actuator [C] on the pick-up roller support
[D] activates the tray lift sensor [E], and the lift motor stops.
Paper Feed
483
