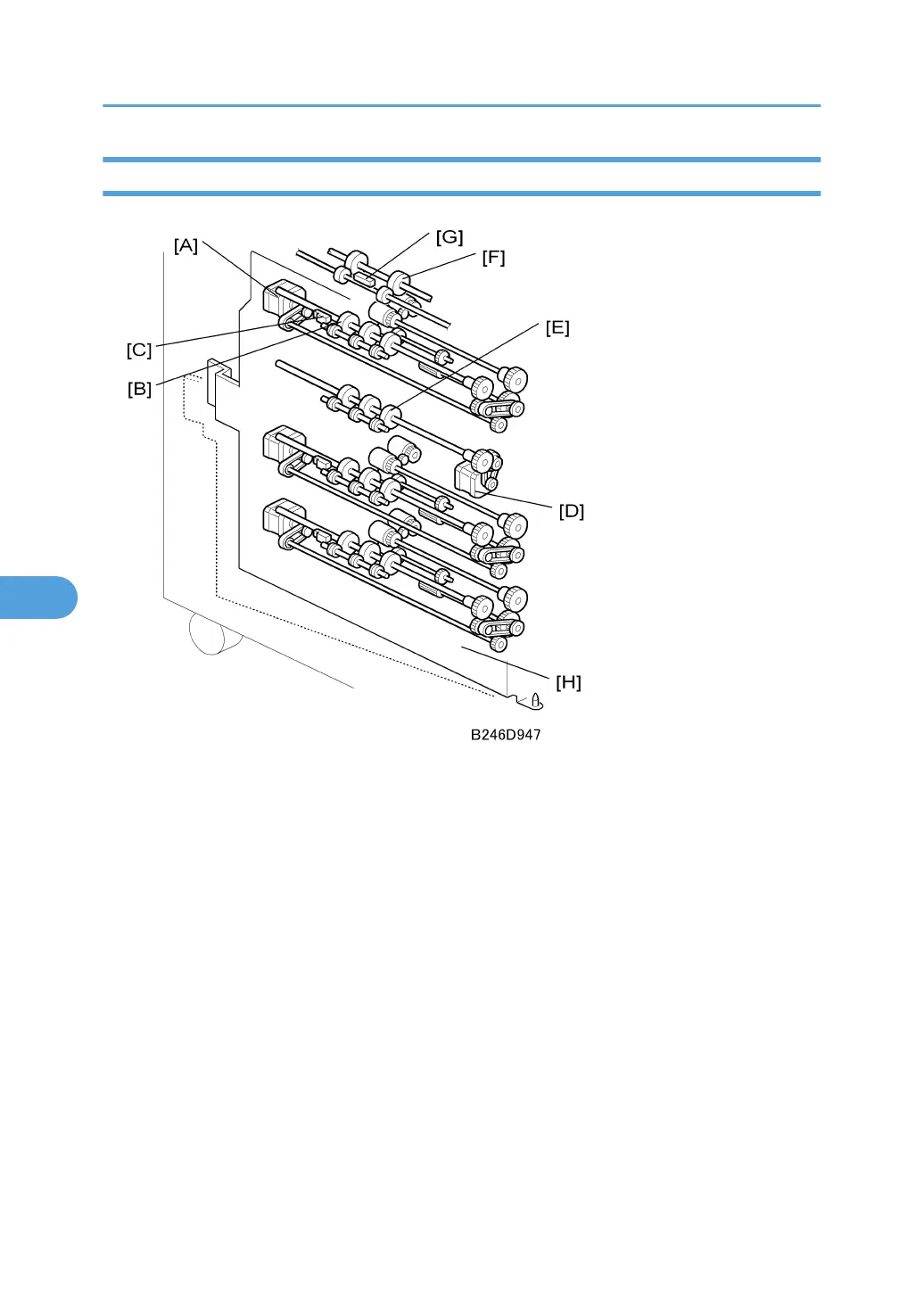

Paper Feed Drive
An independent paper feed motor [A] drives the rollers in each tray. It also drives grip rollers [B], which
pull the paper out of the tray. The mechanism is identical for each tray.
A vertical transport sensor [C] at each feed station detects paper jams.
The paper feed motors on the trays drive the vertical transport rollers, which are opposite each feed station
(not shown here).
The lower relay motor [D] drives the lower relay roller [E], halfway between trays 1 and 2. The relay motor
is added here due to the length of the paper path.
The upper relay roller [F] feeds each sheet to the registration roller.
The relay sensor [G], at the top of the vertical transport path, triggers the start of image exposure on the
OPC drum, and detects jams in the paper path.
The transport guide plate [H] swings against the side of the machine and locks in place.
