Universal Cassettes (Tray 2, 3)

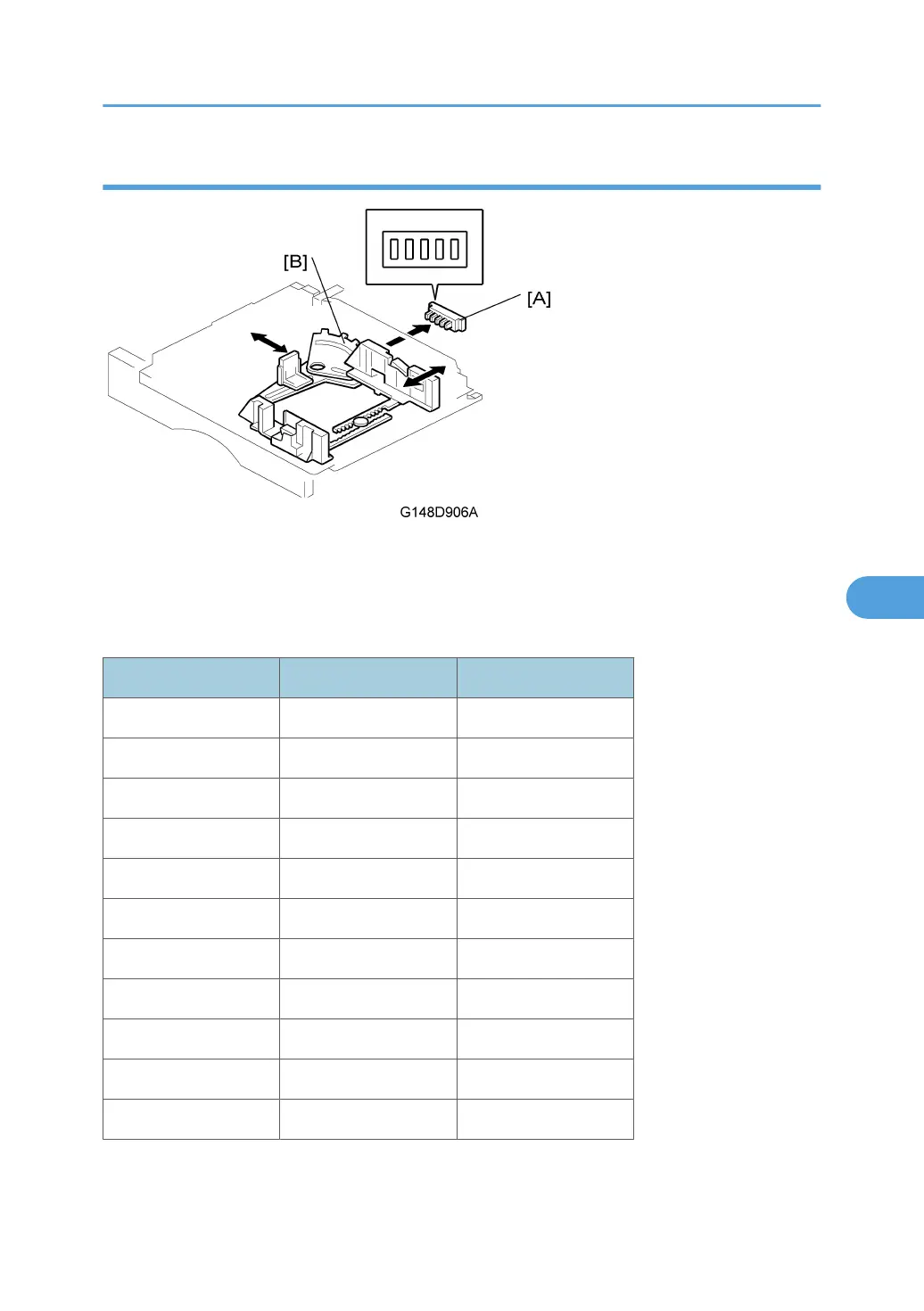

The paper size switch [A] detects the paper size with 5 microswitches. The actuator plate [B], attached to
the rear of the paper tray, actuates the paper size switch.
The output from the sensor depends on the position of the side fences, which affects the sensor output, as
shown in the table.
Sensor Outputs A4/A3 Version LT/DLT Version
01111 A3 SEF 11" x 17" SEF
00111 8¼" x 13" SEF 8½" x 14" SEF
10011 A4 SEF 8½" x 11" SEF
01001 A4 LEF 8½" x 11" LEF
00100 8½" x 13" SEF 5½" x 8½" SEF
00010 A5 SEF 5½" x 8½" LEF
00001 A5 LEF 8" x 10½" SEF
10000 — 7¼" x 10" SEF
11000 — Set by SP 5129
11100 — Not used
11110 * *
0: Actuated 1: Deactuated
Paper Feed
489
