Rear Fence Drive

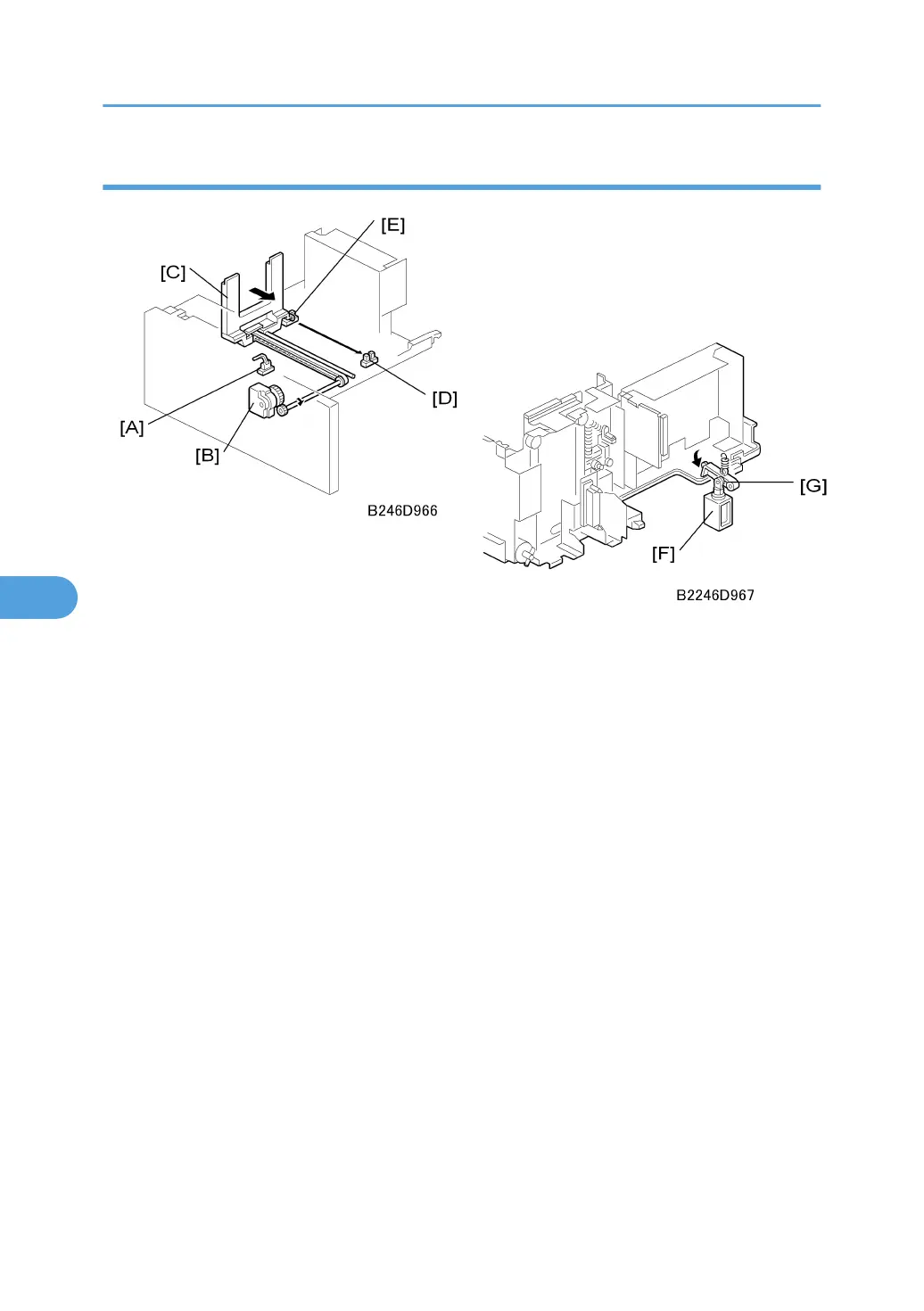

When the left tray paper sensor [A] detects paper but the right tray paper sensor does not, the following
happens.
• Rear fence motor [B] (a DC motor, in the left tray) turns counter-clockwise → Rear fence [C] pushes
the paper stack into the right tray.
• When rear fence return sensor [D] detects the actuator on the rear fence, motor [B] turns clockwise
until rear fence HP sensor [E] detects the actuator.
While the rear fence is moving, the left tray lock solenoid [F] turns on and the lock lever [G] locks the left
tray.
