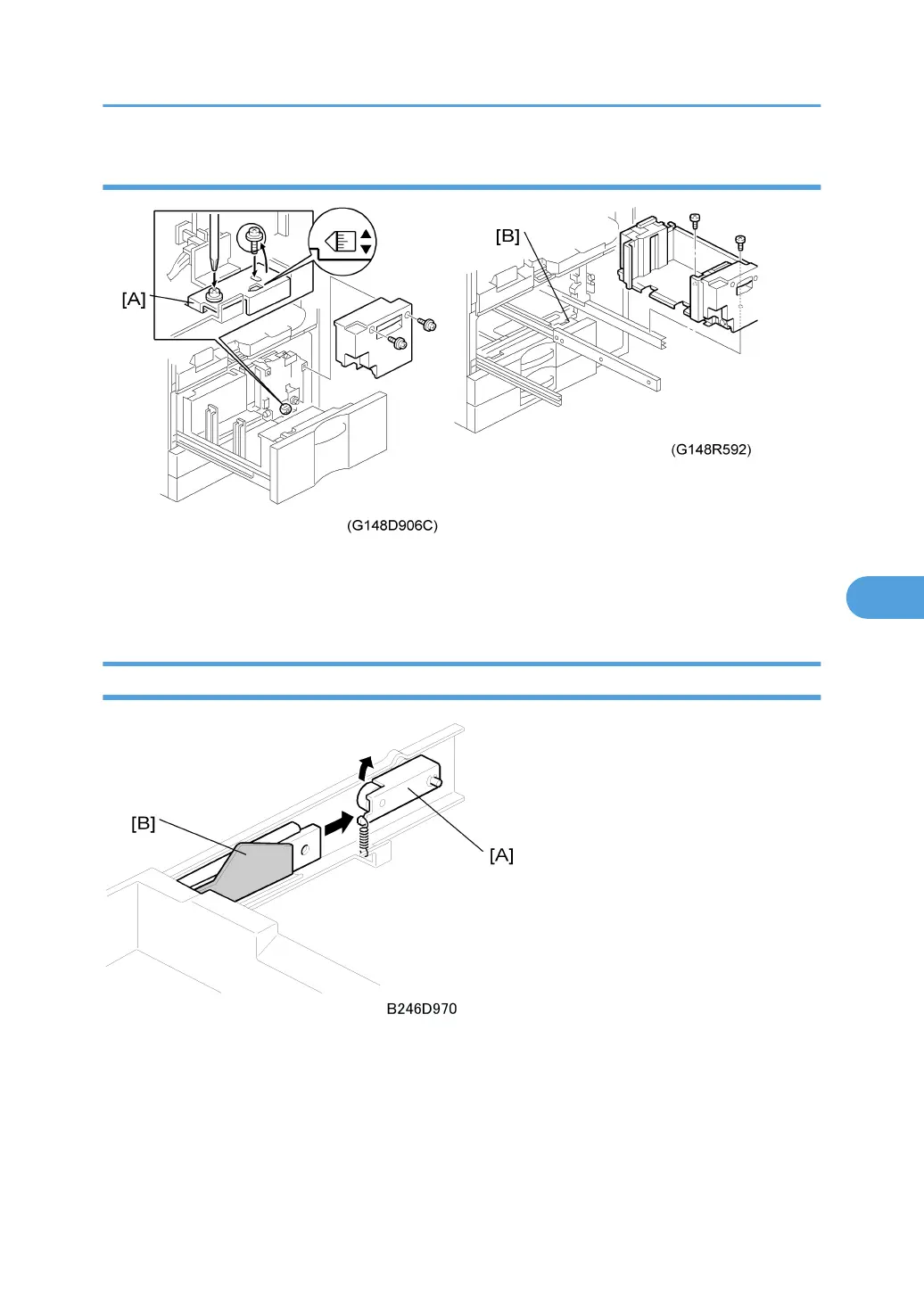

Tray Side-to-Side Positioning
When the feed tray is set in the paper feed unit, the side-to-side positioning plate [A] presses the feed tray
against the stopper [B]. By moving the positioning plate, the tray position can be changed to adjust the
side-to-side registration.
Tray Positioning Mechanism – Trays 1 to 3
When the tray is placed in the paper feed unit, the lock lever [A] drops behind the lock plate [B] on the
support bracket to lock the tray in the proper position.
Paper Feed
497
