Exit Junction Gate

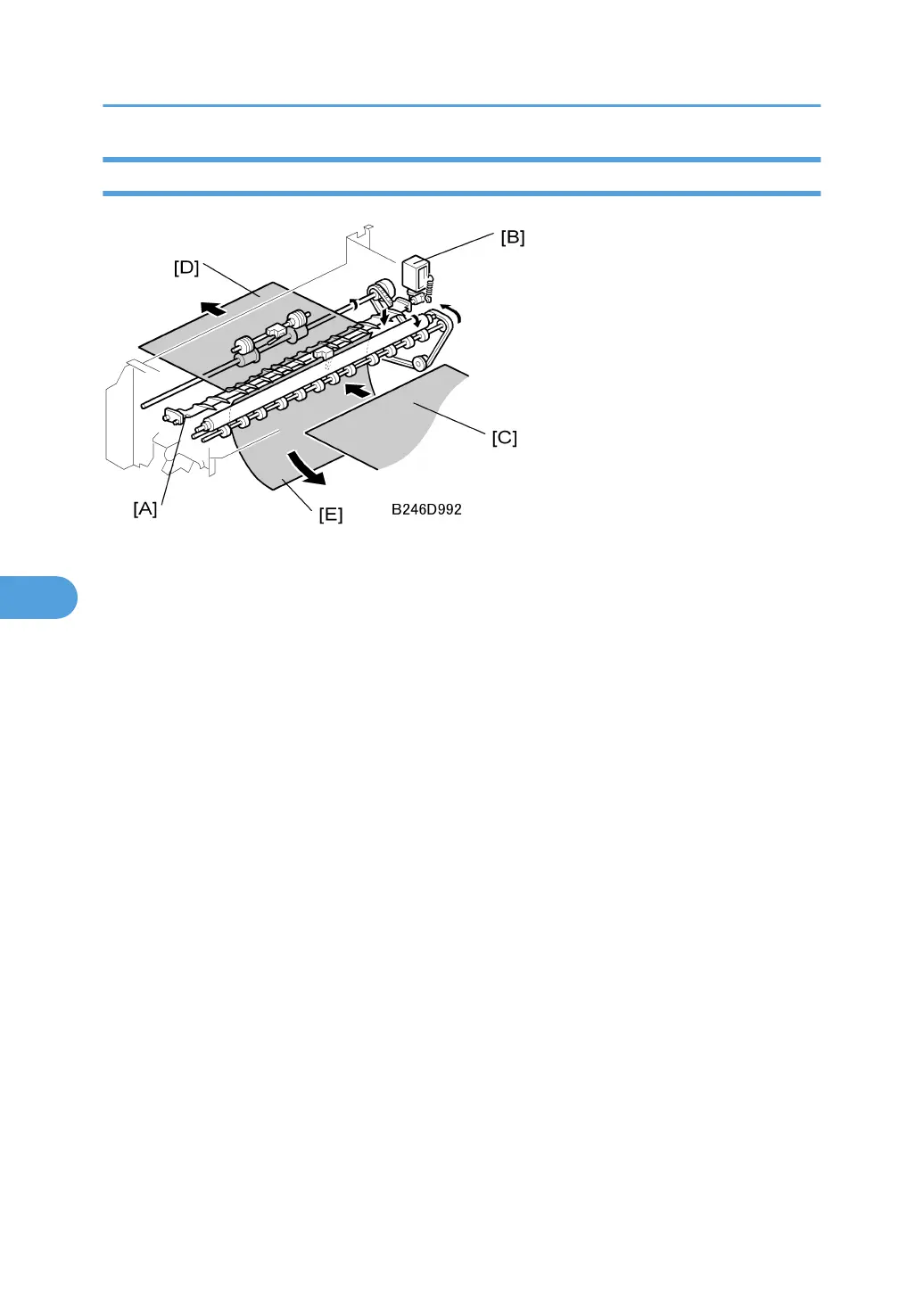

The exit junction gate [A] is controlled by the exit junction gate solenoid [B].
• If the solenoid is on: The gate opens, and paper [C] goes straight through [D] to the output tray (for
face-up delivery) or the finisher.
• If the solenoid is off: The gate remains closed and forces the paper down [E] to the duplex unit.
