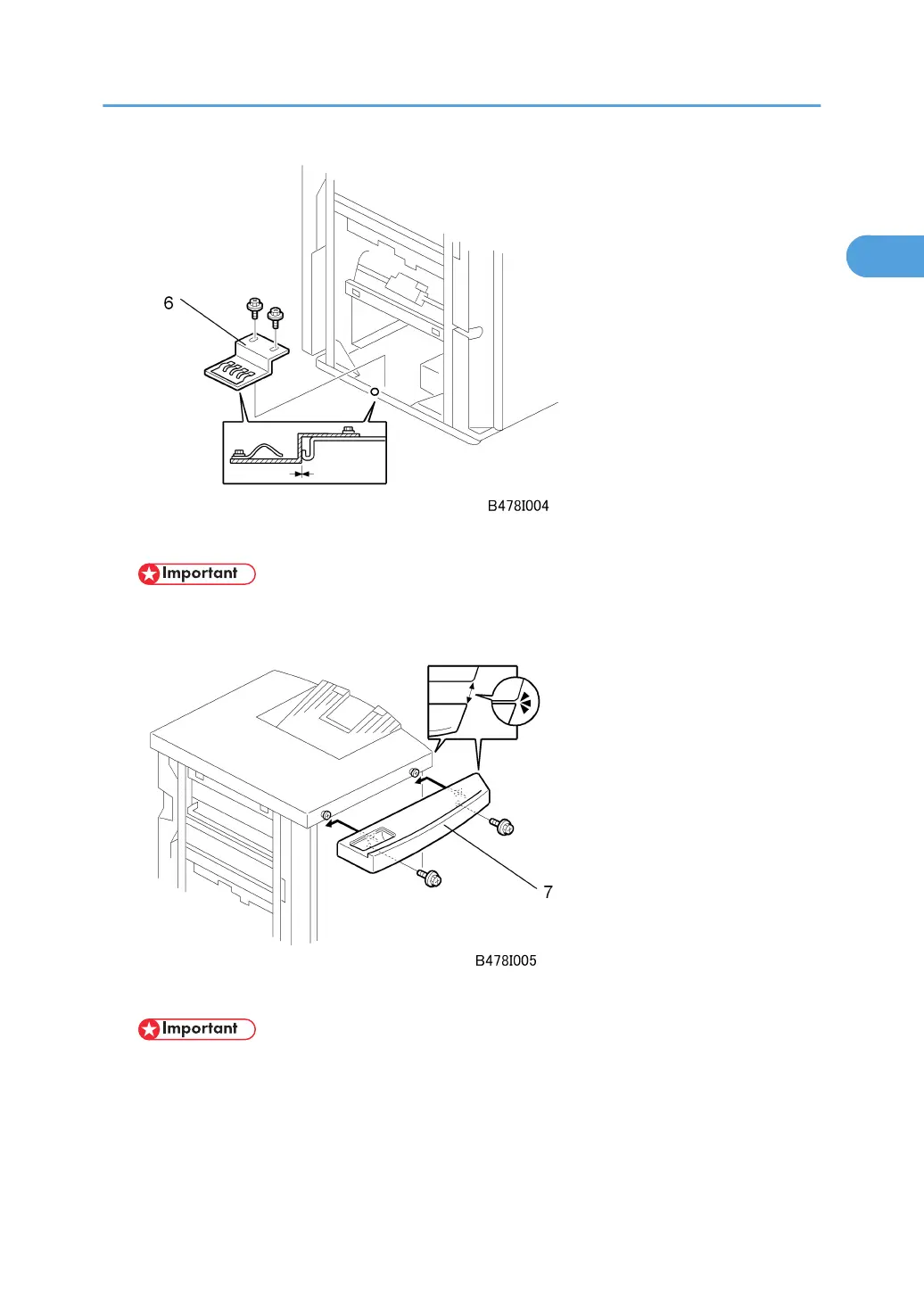

4. Install the grounding plate [6] ( x 2) (M3 x 6).
• Set the grounding plate so that there is no gap between the grounding plate and the bottom
frame of the finisher (as shown).
5. Install the table extension [7] as shown ( x 2) (M4 x 8).
• The edge of the table extension should be aligned with the edge of the finisher (as shown).
3000-Sheet Finisher SR842 (B706)
69
