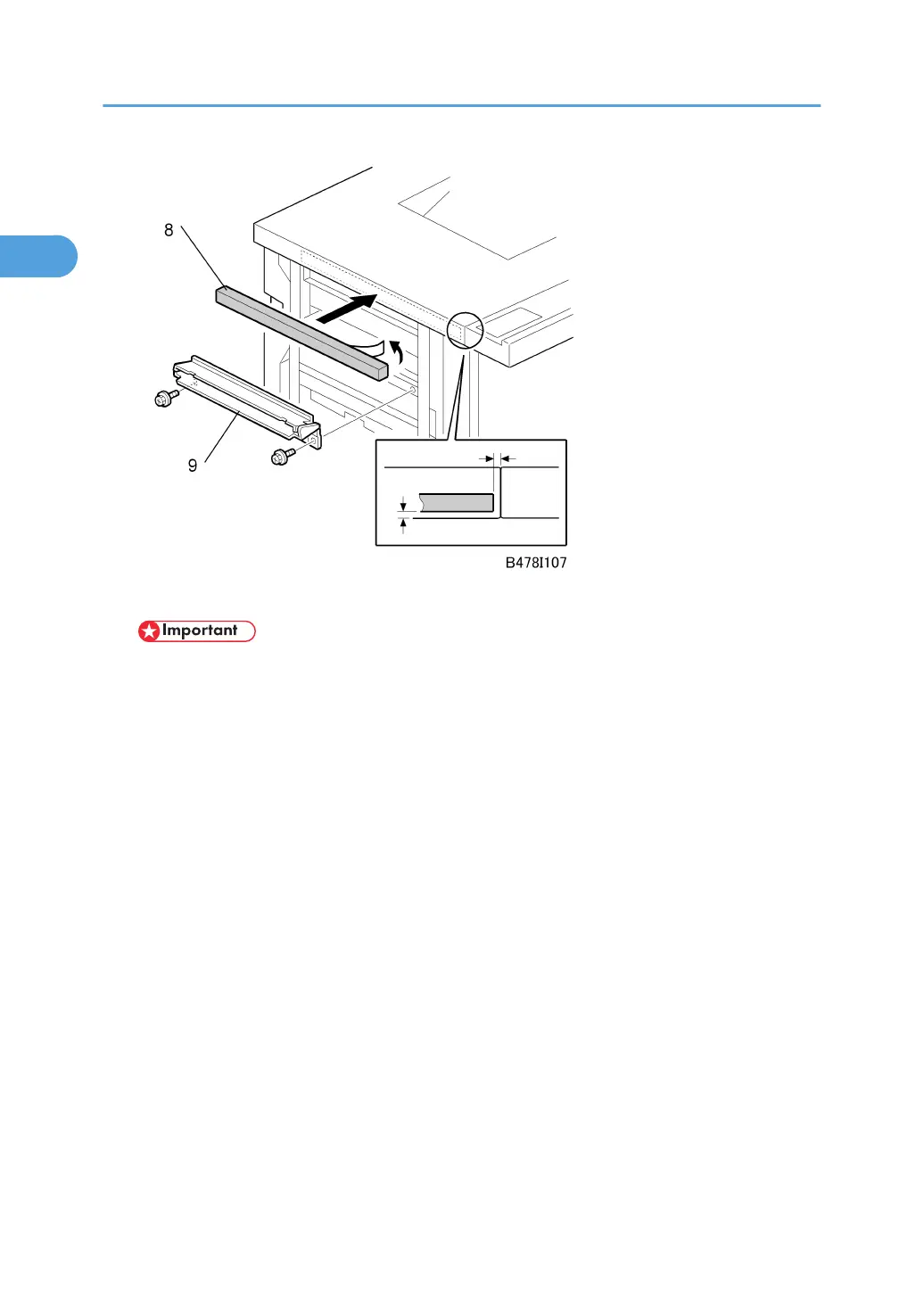

6. Attach the cushion [8] to the right side of the upper cover.
• If you are installing the cover interposer tray, do not attach the cushion here. Attach it to the cover
interposer tray.
• The cover interposer tray must be installed before you dock the finisher and tray with the main
machine.
• For details, see the Cover Interposer Tray B470 installation instructions.
7. Install the entrance guide plate [9] ( x 2) (M3 x 6).
