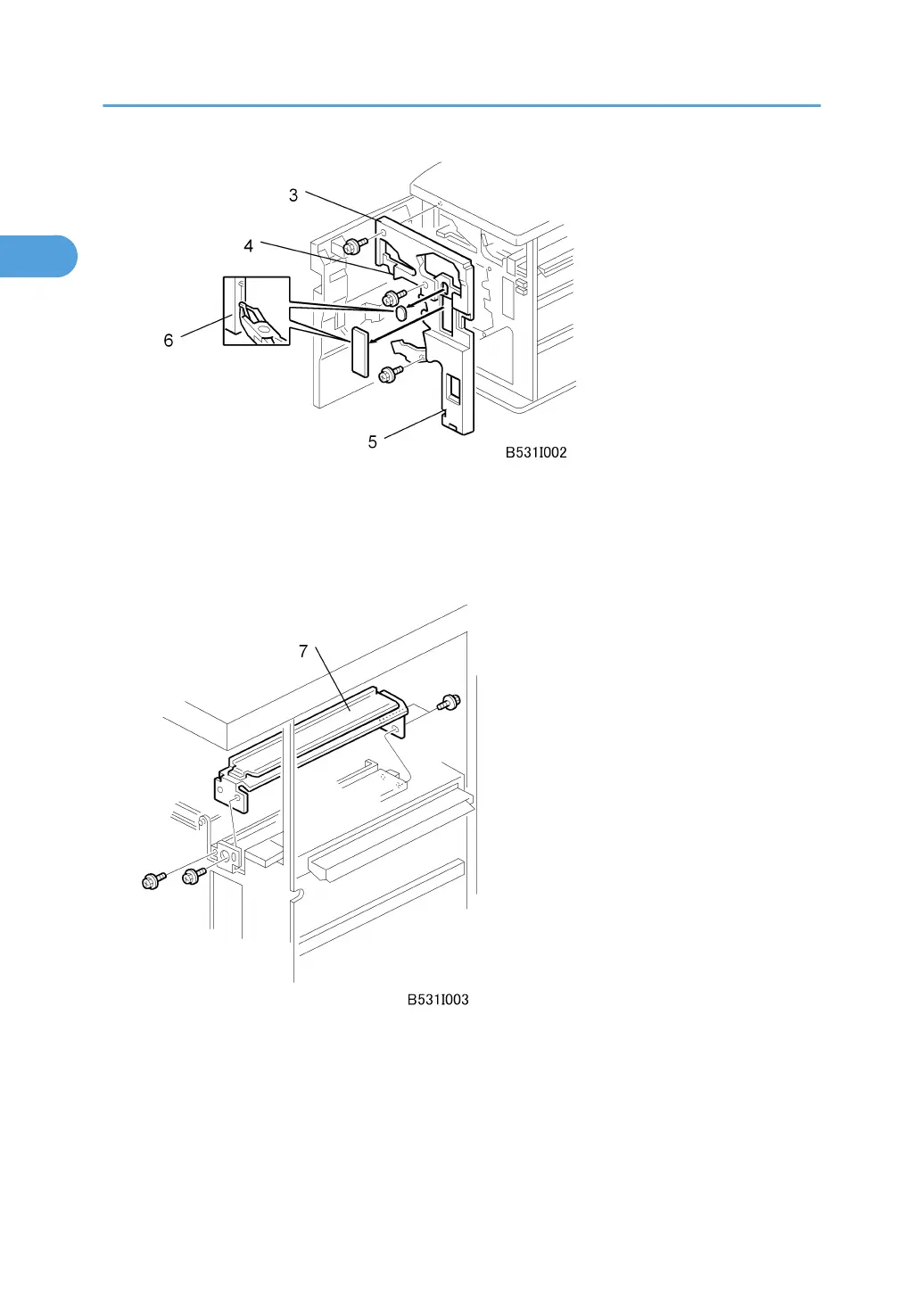

4. Remove the inner cover [3] ( x 3).
5. Behind the inner cover at [4] and [5], press the lock tab to the right to release the inner cover
from the frame.
6. Remove the plastic knockouts [6].
7. Remove the paper guide [7] ( x 4).
