Chapter 9 Replacing Consumables
147
9

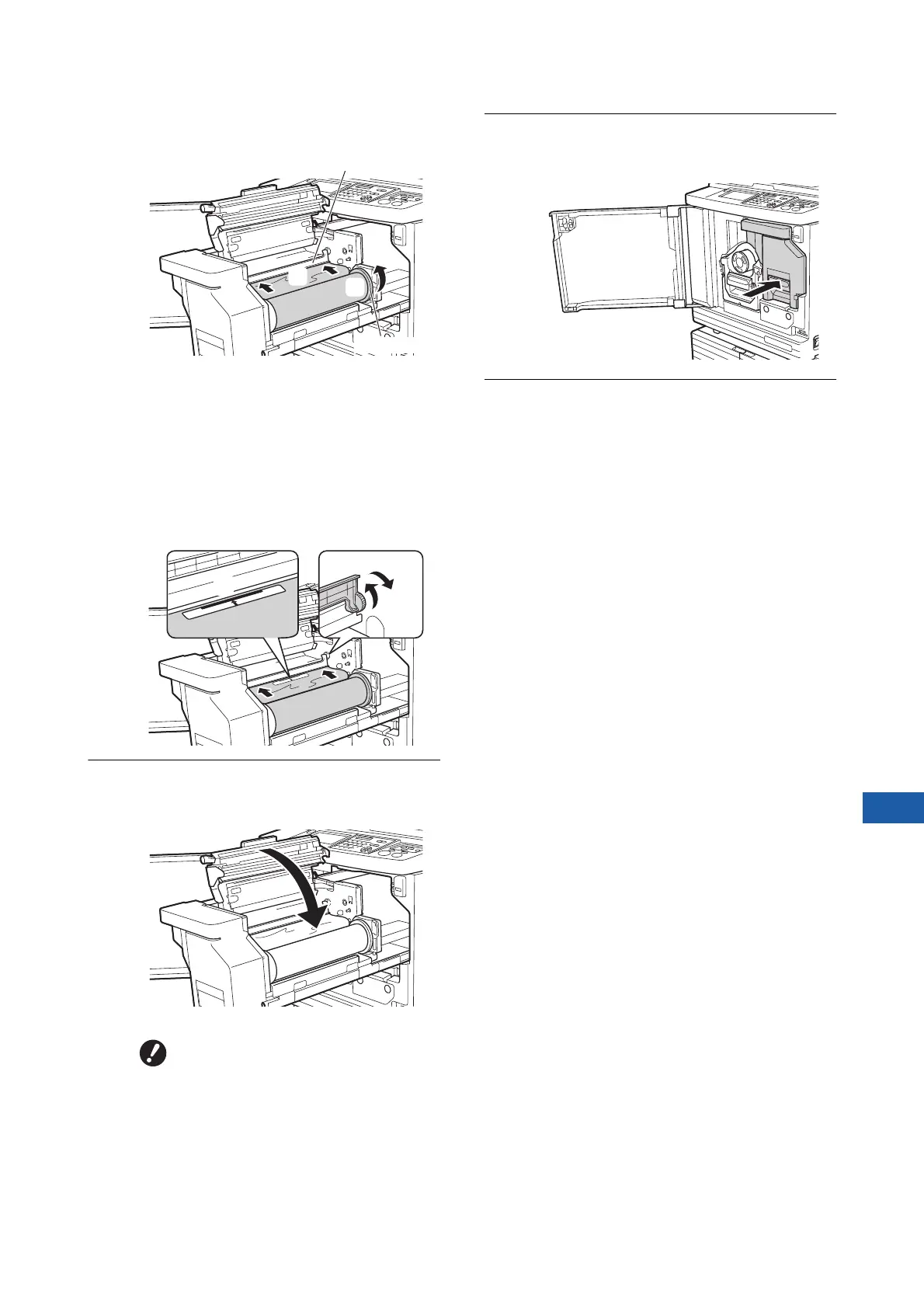

2 If the master roll is loose, turn the flange on
the right toward the rear and rewind it.
■ If you cannot insert the master roll
Insert the master roll using the following steps.
1 Turn the dial at the edge of the master guide
flap toward the rear and raise the master
guide flap.
2 Align the leading edge of the master roll to
the line indicated by the arrow.
3 Return the master guide flap to its original
position.
10
Close the master making unit
cover.
11
Return the master making unit to
its original position.
12
Close the front door.
BWhen closing the master making
unit cover, press the cover itself
with your hands from above with-
out holding the lever. Make sure
to close it so that it does not open
when you release your hands.
2
1
Master guide flap
Flange
1
3
2
To Next Page
