DISPLAY PANEL MANUAL
5-25
●Setting the detail of the SOFT START
Following items are set up in the detail setting of the SOFT START. Help windows of each item are displayed
on the bottom of the screen.
For more details, refer to the USER’S MANUAL.

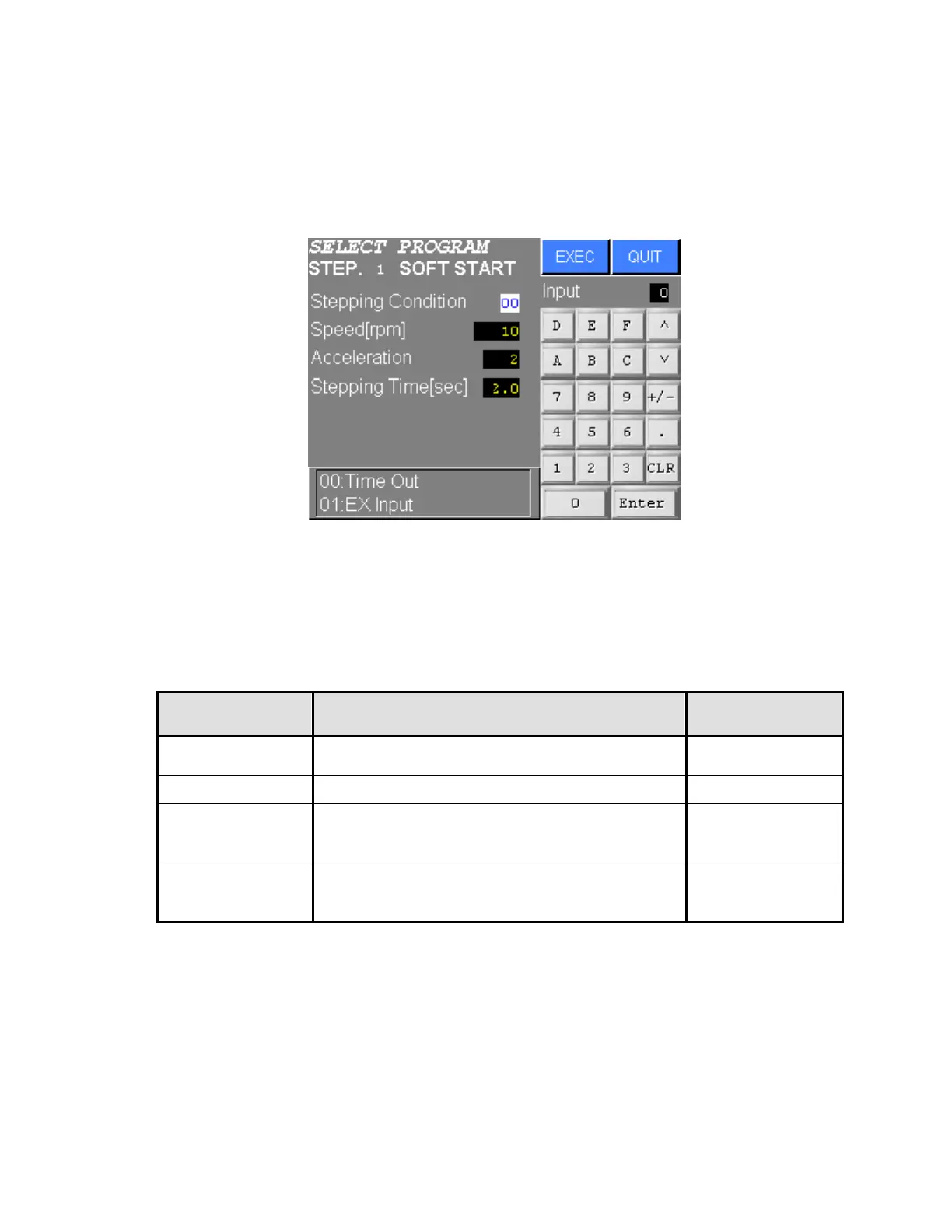

Figure 5.3-9 DETAIL SETTING SCREEN OF SOFT START
Input the value using numeric input keys and press EXEC. Press QUIT to cancel all new settings.
The contents of the value inputted on this screen are written to the NUTRUNNER when EXEC is pressed on
the Figure 5.3-6 SELECT PROGRAM SETTING SCREEN.
ITEM CONTENTS NOTE
Stepping Condition
The stepping condition for the SOFT START
command is set.
Speed[rpm] The target constant speed is set.
Acceleration
(Deceleration)
The acceleration (or deceleration)
the set speed.
Range 1〜1000
0002
Stepping Time[sec]
The timeout time (0-25.5 seconds)
command is set. This setting is valid only when the
stepping condition "00h" is set.
Table 5.3-3 SETTING ITEMS OF SOFT START SELECT PROGRAM SETTING
To Next Page
