DISPLAY PANEL MANUAL
5-33
●Setting the detail of the JUMP, the OK JUMP and the NG JUMP
Following item is set up in the detail setting of the JUMP. Help window of the item is displayed on the bottom of
the screen.
For more details, refer to the USER’S MANUAL.

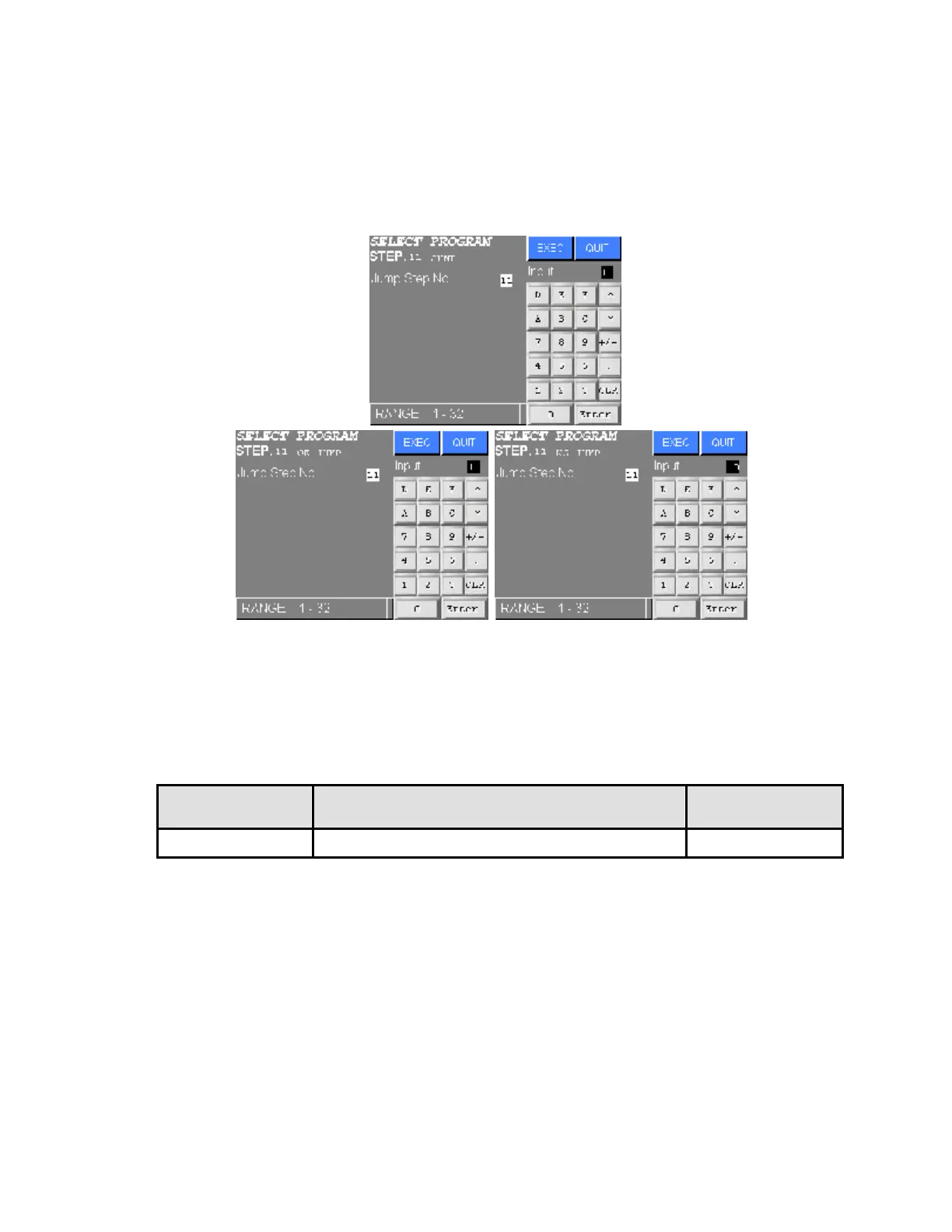

Figure 5.3-17 DETAIL SETTING SCREEN OF JUMP
Input the value using numeric input keys and press EXEC. Press QUIT to cancel all new settings.
The contents of the value inputted on this screen are written to the NUTRUNNER when EXEC is pressed on
the Figure 5.3-6 SELECT PROGRAM SETTING SCREEN.
ITEM CONTENTS NOTE
Jump Step No. Designated step No. (1 - 32) to jump is set.
Table 5.3-11 SETTING ITEM OF JUMP,OK JUMP,NG JUMP PARAMETER SELECT PROGRAM SETTING
