Network communication
Page 176 OmniTrax Product Guide
Network communication
Transmission media/maximum separation distances between processors:
• Sensor cables - 800 m (2,625 ft.)
• EIA-422 copper wire - 1.2 km (0.75 mi.) - 2 pairs per Channel
• Multimode fiber optic cable (820 nm) - 2.2 km (1.4 mi.) - 2 fibers per Channel - optical power
budget 8 dB
• Singlemode fiber optic cable (1310 nm) - 10 km (6.2 mi.) - 2 fibers per Channel - optical power
budget 8 dB

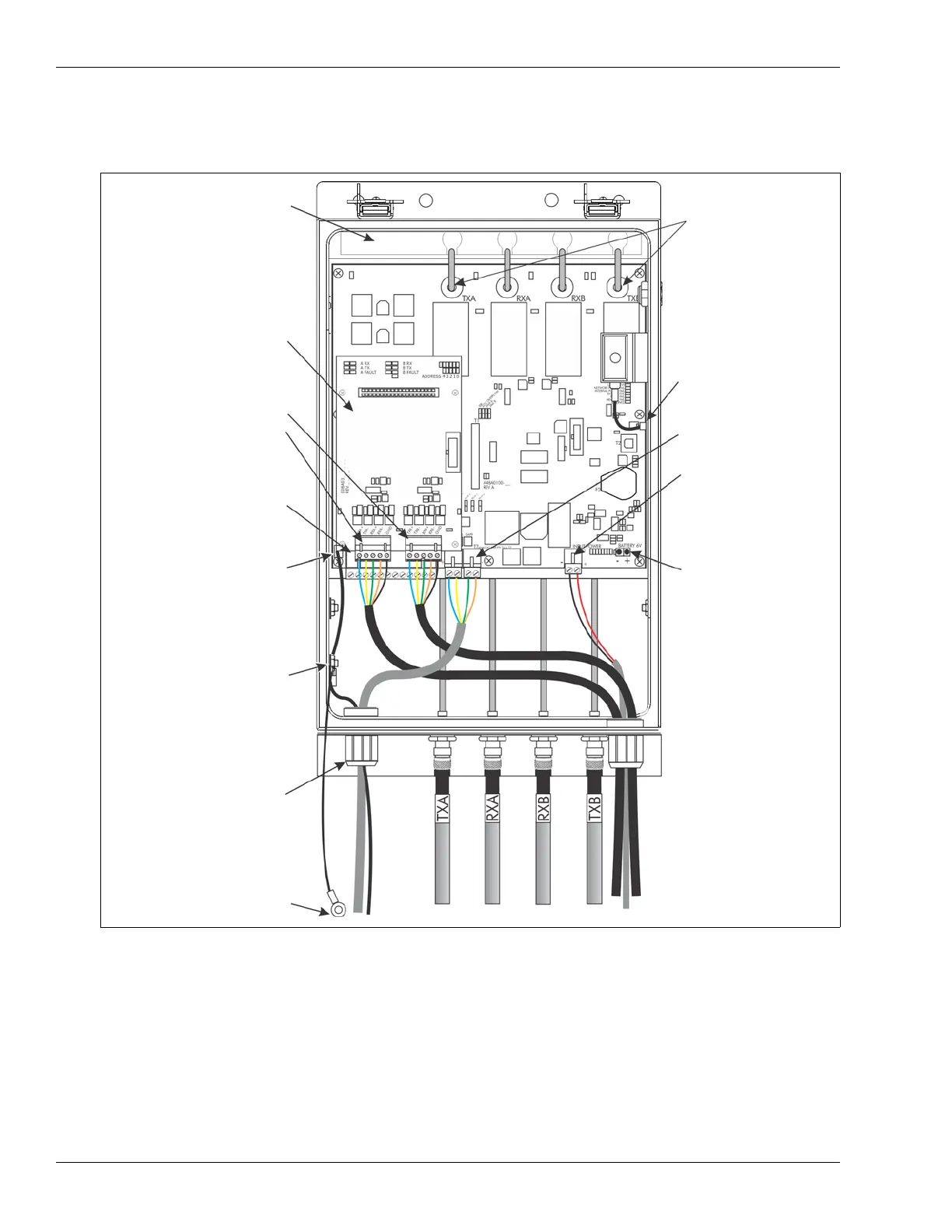

Figure 154: Network communication processor wiring
battery
connection
cable guide
bar
internal coaxial
cable connections
PCB ground
connection
earth ground
connection
ground connection to
enclosure door
(enclosure door not shown)
cable gland (X4)
EIA-422 data connections
TXB+, TXB-, RXB+, RXB-, GND
TXA+, TXA-, RXA+, RXA- GND
relay output connector
(connections not shown)
power connection (network
power input/ auxiliary
power supply module
output)
network interface card
sensor cable bulkhead connections
enclosure tamper
switch connection
auxiliary device input
connections (AUX1, AUX2)
