Relay output alarm communication
OmniTrax Product Guide Page 173
Relay output alarm communication
Local control mode is the default setting for the OmniTrax processor. In local control mode the
inputs and outputs are controlled by the processor. The two inputs are self-test inputs. The four
relays report sensor alarms, supervision alarms and processor status. The inputs and outputs are
configured via the UCM.

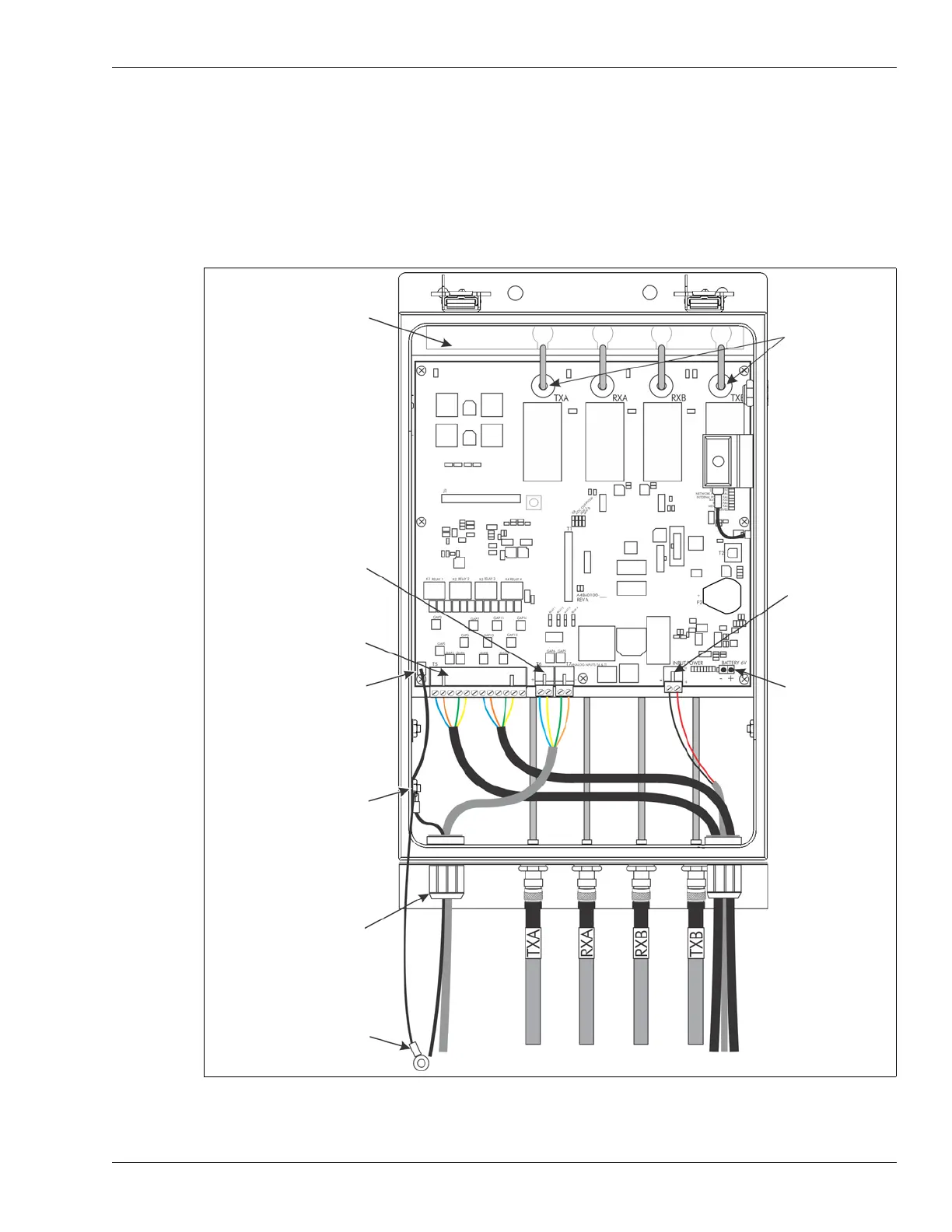

Figure 151: Local control mode wiring connections
cable guide
bar
self-test input
connections
relay output
connections
PCB ground
connection
earth ground
connection
ground connection
to enclosure door
cable gland (X 4)
(for post mounting or wall
mounting, conduit is
strongly recommended)
internal coaxial
cable connections
power
connection
battery
connection
(door not shown)
lead-in cable connections
