OmniTrax components
Page 20 OmniTrax Product Guide
SC2 sensor cable sets
In an SC2 sensor cable system two sensor cables are buried in parallel around the site. One cable
serves as the transmit cable and the other serves as the receive cable. Each sensor cable
includes an additional 4 m (13 ft.) of detecting cable, which allows the detection field to build up to
full strength at the start point, plus 20 m (66 ft.) of non-detecting lead-in cable for the connection to
the processor. The SC2 cables are shipped with TNC connectors and ferrite beads.
SC1 sensor cable sets
The SC1 sensor cable consists of two ported coaxial cables in a single outer jacket with one
transmit cable and one receive cable. SC1 sensor cable should be used at sites where installation
space is extremely limited, there are numerous obstacles, or where the cable path meanders.
Each sensor cable includes an additional 4 m (13 ft.) of detecting cable, which allows the detection
field to build up to full strength at the start point, plus 20 m (66 ft.) of non-detecting lead-in cable for
• 2 OmniTrax sensor cable
reels
(300 or 400 m cable sets)
• 20 m lead-in cable (marked
by red band)
• 6 TNC male connector kits
• 42 ferrite beads
• cable marking tape
• cable identification labels
• arbor hole in reel 4 cm
(1.5 in.)

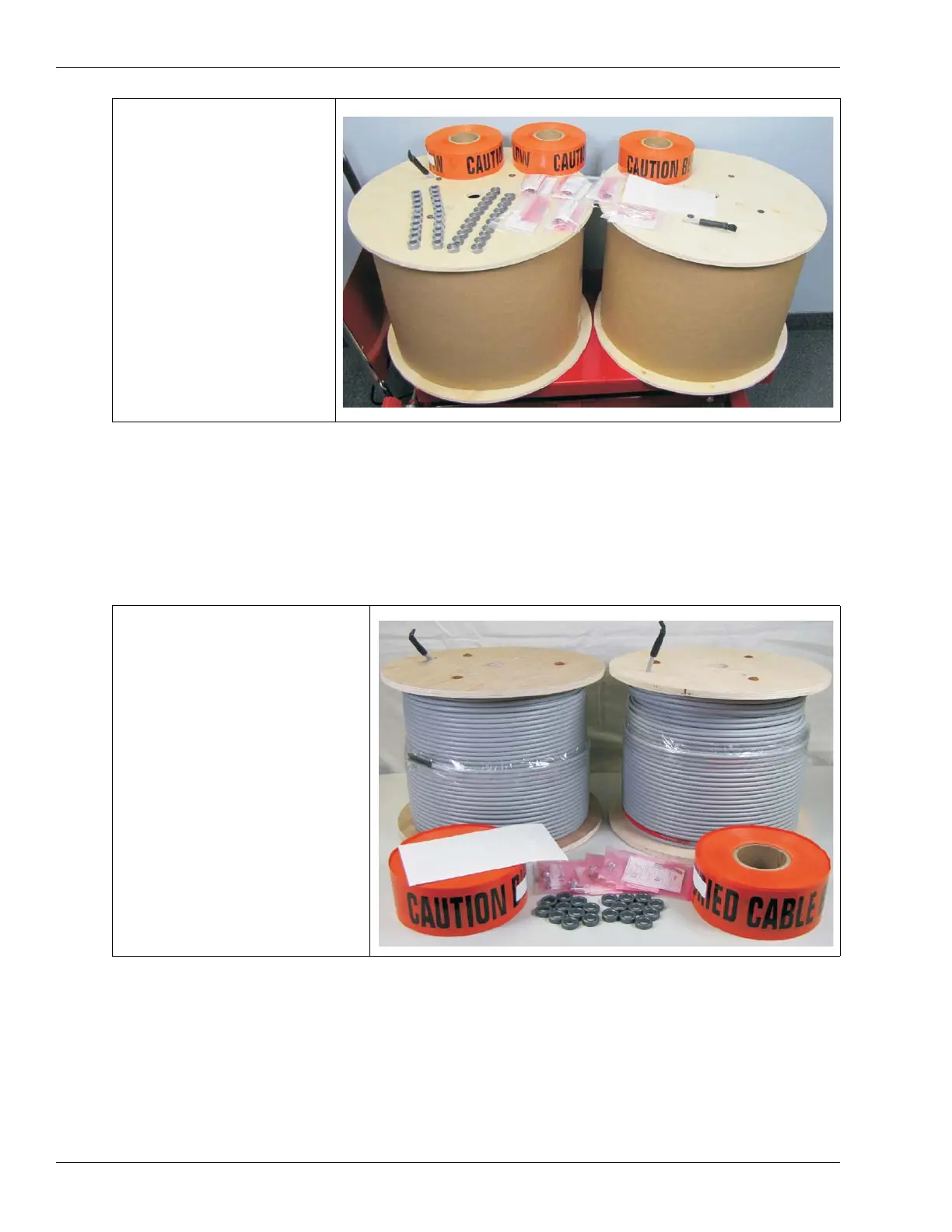

Figure 5: OmniTrax OC2 sensor cable set
• 2 SC2 sensor cable reels
(50, 100, 150, 200 m cable sets)
• 20 m lead-in cable (marked by
red band)
• 4 TNC male connector kits
• 20 ferrite beads
• cable marking tape
• cable identification labels
Figure 6: OmniTrax SC2 sensor cable set
