OmniTrax components
Page 24 OmniTrax Product Guide

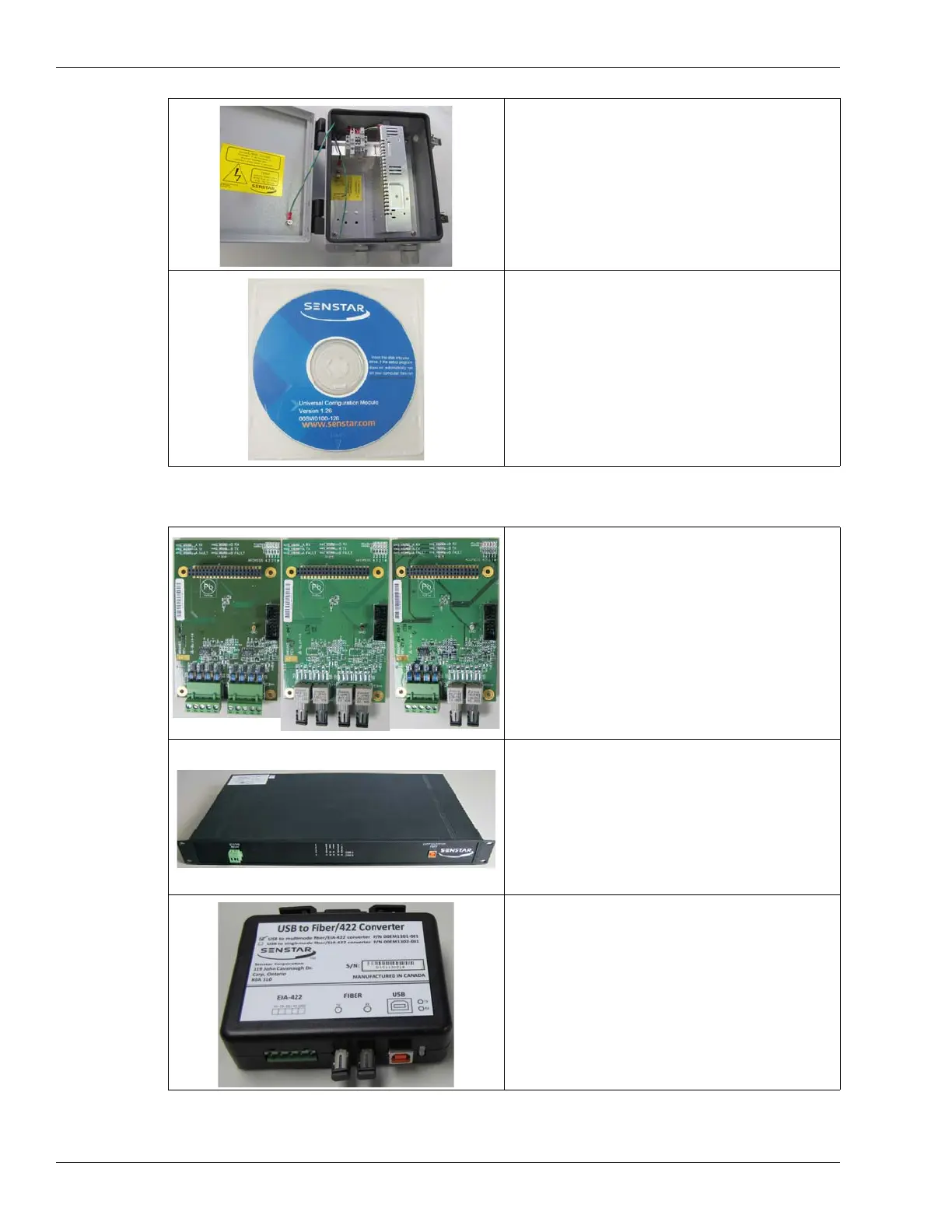

Silver Network components
• C7EM0503 (not shown) - 12 VDC, 80 W,
standalone, single processor power supply
on a steel plate, no enclosure
• A4EM0200 - 48 VDC, 100 W, network
power supply in NEMA 4 rated outdoor
enclosure for up to 5 processors with power
distributed over the cables
• 00SW0100 - UCM software Windows based
application serves as the calibration,
diagnostic and maintenance tool for the
OmniTrax sensor
• GE0444 (not shown) - 3 m USB interface
cable connects UCM computer to processor
network interface card (5 variants) - required on
all Silver Network based processors
• 00BA0302 - EIA-422 copper wire
• 00BA0301 - multi-mode fiber optic
• 00BA0304 - EIA-422 copper wire + multi-
mode fiber optic
• 00BA0303 (not shown) - single-mode fiber
optic
• 00BA0305 (not shown) - EIA-422 copper
wire + single-mode fiber optic
network interface unit (NIU) - data translator
used between the Silver Network based devices
(i.e., OmniTrax processor) and the PC based
Network Manager software
• 00EM0200 - EIA-422 copper wire + multi-
mode fiber optic
• 00EM0201 (not shown) - EIA-422 copper
wire + single-mode fiber optic
• 00EM1301 - mini-NIU
single channel USB to EIA-422 and multi-mode
fiber optic data converter DIN-rail mount
• 00EM1302 - mini-NIU (not shown)
single channel USB to EIA-422 and single-mode
fiber optic data converter DIN-rail mount
