OmniTrax Product Guide Page 219
7 The Silver Network
Silver Network overview
The Silver Network provides the communication backbone for Senstar’s line of perimeter intrusion
detection sensors and I/O devices. The Silver Network implements a point-to-point communication
system using a ring topology.
The Silver Network supports up to 60 security devices (network nodes). Each device integrates a
regenerative repeater, which retimes the data before passing it on to the next node. This enables a
widely distributed security network using full duplex communication over EIA-422 twisted-pair
copper wire, multi-mode fiber optic cable, single-mode fiber optic cable, or mixed media (copper/

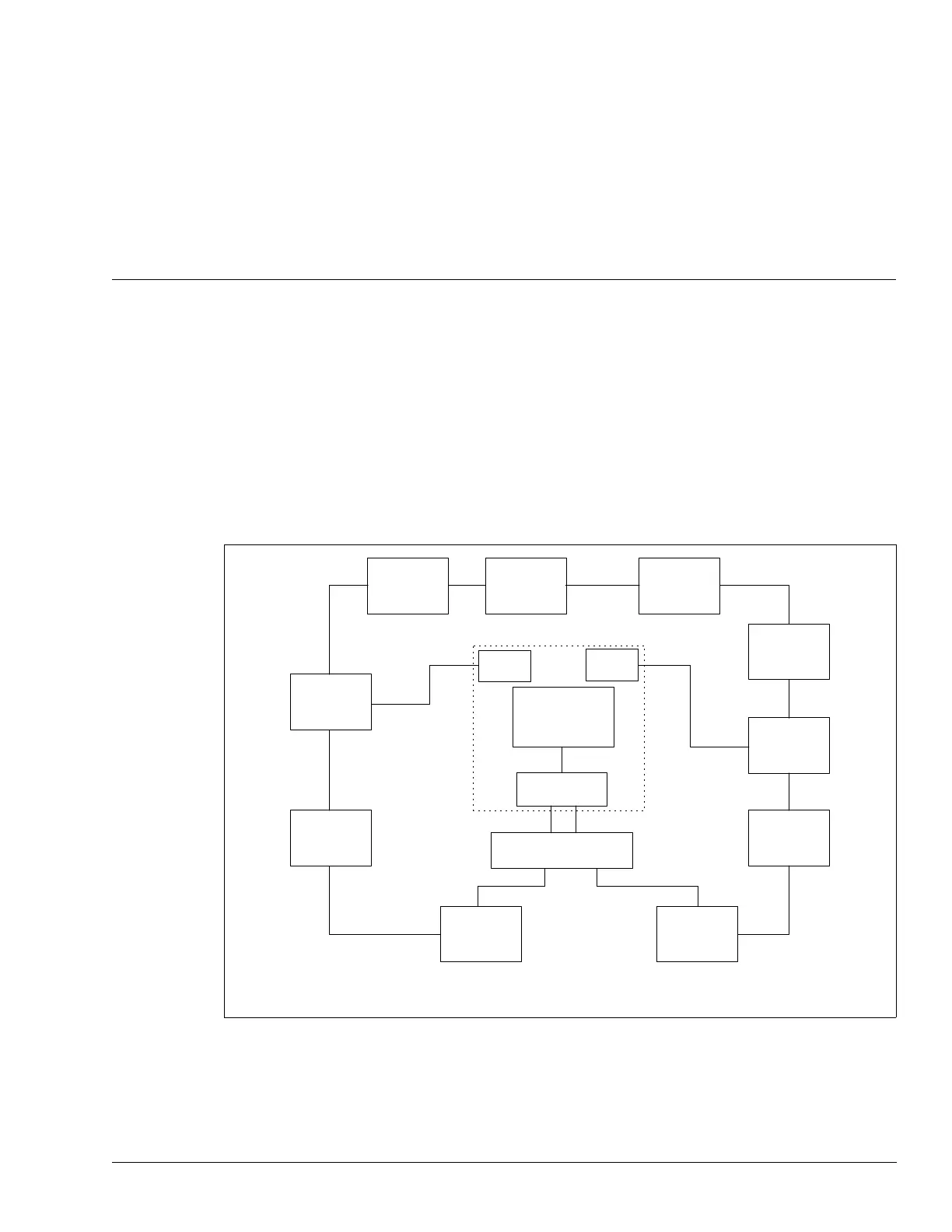

Figure 192: Silver Network block diagram
Processor 4 Processor 5
Processor 6
Processor 3
Processor 2
Processor 8
Processor 7
Processor 9
Processor 10
Processor 1
security
management
system
48 VDC
power
48 VDC
power
Network
Manager
Network Interface Unit
EIA-422/fiber optic
USB/EIA-232/Ethernet
TCP/IP link
NOTE: The security management system and Network Manager can reside on a single PC, or on
separate PCs.
power and data
via sensor cables
