The OmniTrax enclosure
Page 84 OmniTrax Product Guide
Note The OmniTrax enclosure includes four 22 mm (0.875 in.) cable ports,
which are fitted with cable glands. The four cable glands each provide a
single hole with a 4.75 to 6.35 mm cable range (0.187 to 0.250 in.). Two
additional cable sealing grommets are included in a plastic bag, which
provide an 11 to 12.7 mm cable range (0.437 to 0.500 in.).

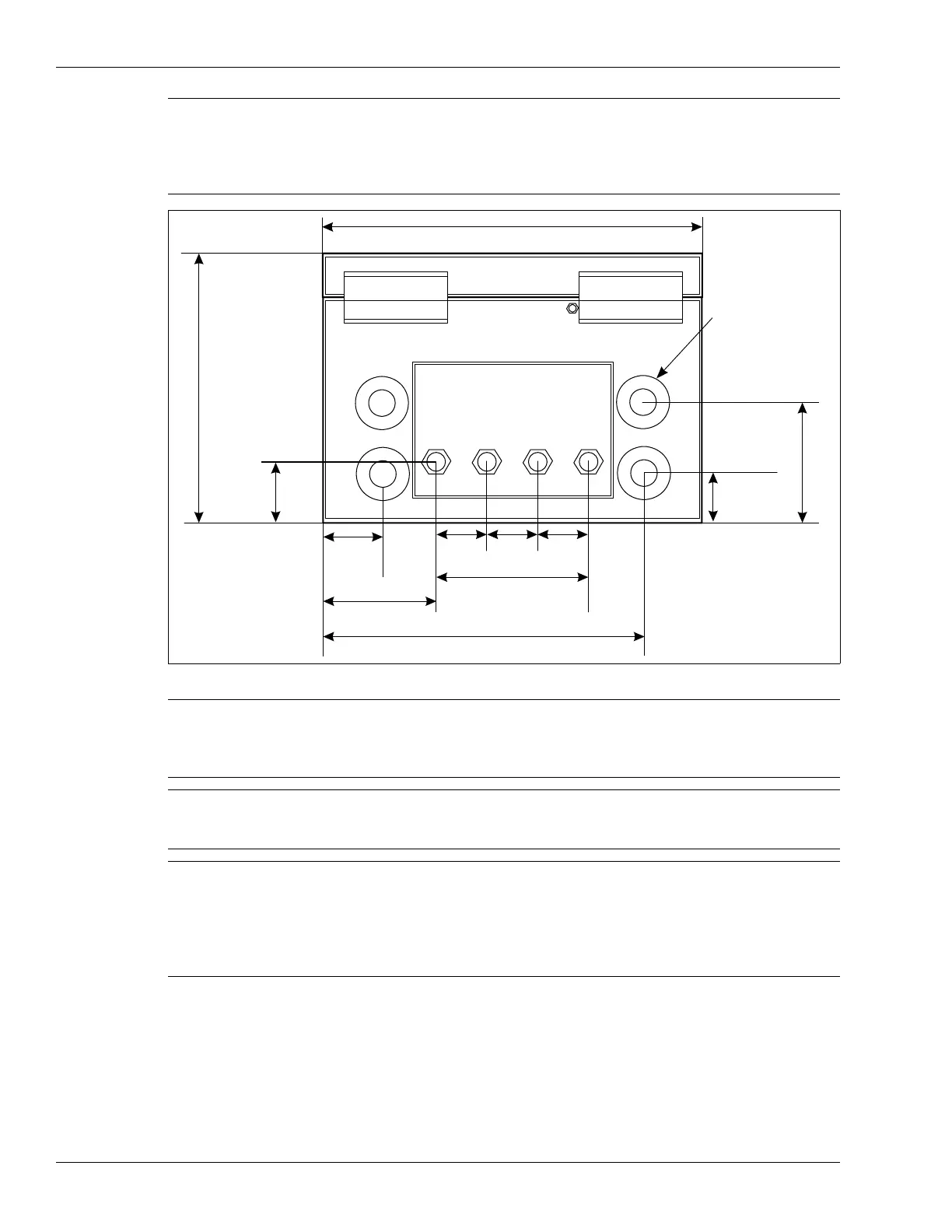

Figure 49: Enclosure bottom cable entry port dimensions
Note DO NOT bring AC mains power into the OmniTrax enclosure. If a local
power supply is being used, it must be installed in its own weatherproof
enclosure. Consult the local electrical code for information about the
connection of AC mains to your power supply.
Note For outdoor installation the OmniTrax enclosure must be mounted inside
a telecom style pedestal enclosure or a suitable customer-supplied
enclosure.
Note For installations in environments which include hot sunny periods,
Senstar recommends that a sun shield be installed to protect the
enclosure from direct sunlight, or that the enclosure be installed in a
shady area.
The maximum operating temperature, as measured inside the enclosure,
is 70º C (158º F).
33 mm (1.3 in.) OD
(4 places)
74.1 mm
(2.92 in.)
30.1 mm
(1.19 in.)
3 X 31.5 mm (1.24 in.)
94.5 mm (3.72 in.)
37 mm
(1.46 in.)
70.3 mm
(2.77 in.)
198 mm (7.79 in.)
37.6 mm
(1.48 in.)
166.1 mm
(6.54 in.)
235 mm (9.25 in.)
