Using a customer-supplied enclosure
OmniTrax Product Guide Page 93

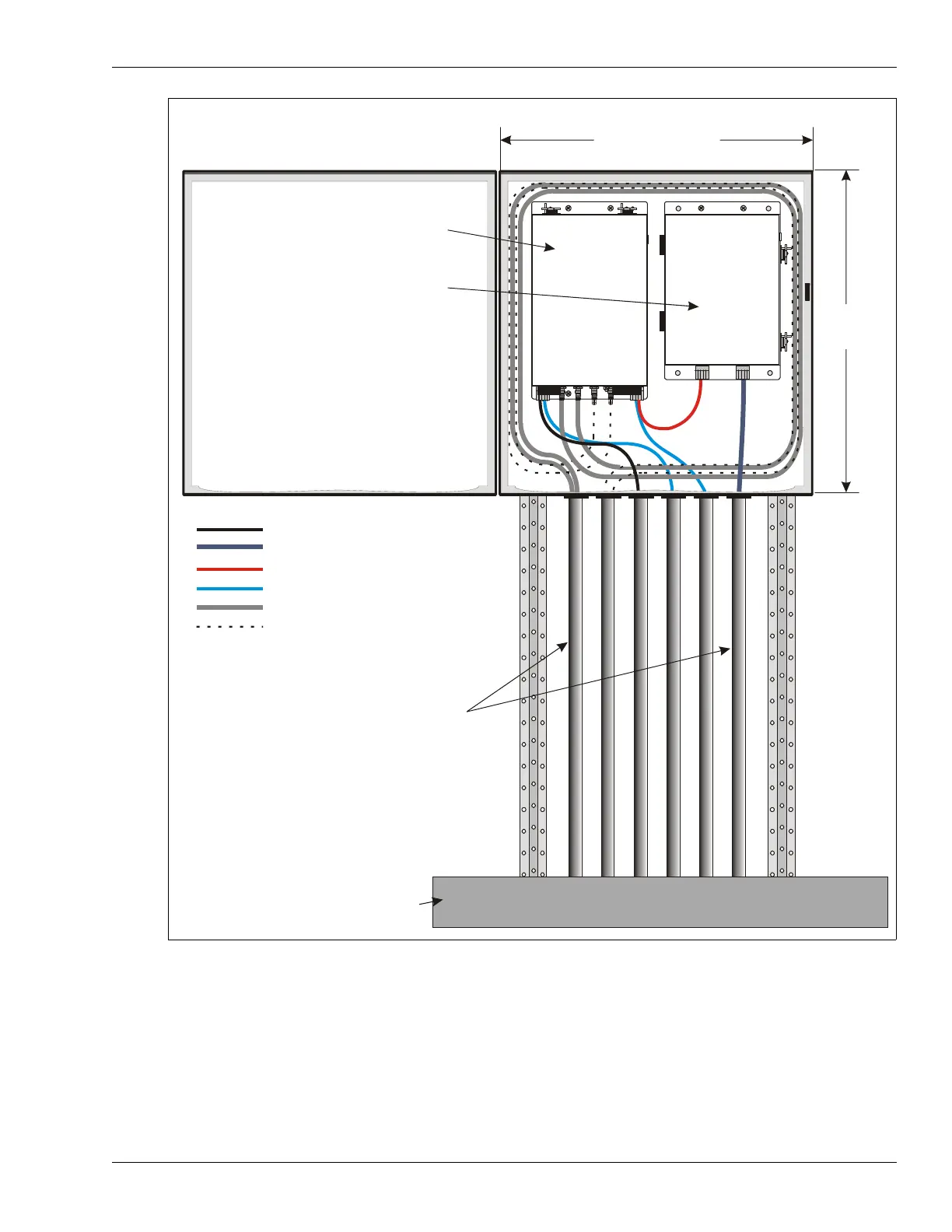

Figure 58: Using a customer-supplied enclosure
TXA
RXA
TXB
RXB
OmniTrax processor
inside enclosure
48 VDC network power supply
ground wire
AC power cable
DC power cable
data cable
A-side sensor cable
B-side sensor cable
NOTE: data/power cable service loops not shown.
conduit
concrete base
69 cm (27 in.)
69 cm
(27 in.)
