Replacing the processor
OmniTrax Product Guide Page 95

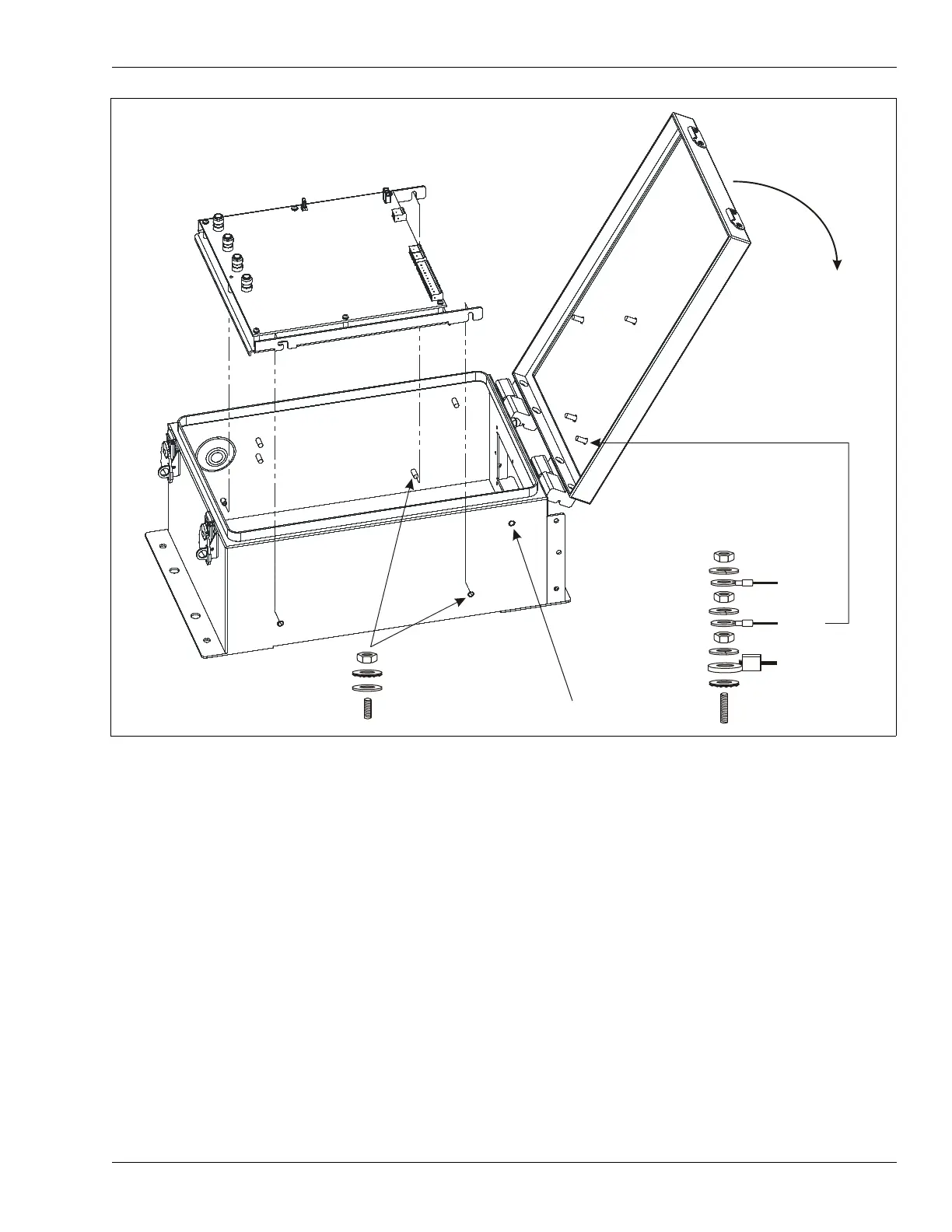

Figure 59: Installing the mounting plate in the enclosure
processor and
back plate
latches on
top side
enclosure door
opens down
(cable glands and
bulkhead TNCs on
bottom of enclosure)
ground connection details
to PCB
to door
to earth ground
hex nut
tooth washer
flat washer
mounting stud
lock washer
ring terminal
hex nut
earth ground lug
external tooth washer
enclosure ground stud
lock washer
ring terminal
hex nut
lock washer
hex nut
