3-2
The 4010 system can be wired as either a Power Limited or Non-Power Limited
system. Adhere to the following guidelines and consult the NEC for specifics.
• When installing the 4010 as a Power Limited system, you must observe the
following guidelines:
- Maintain ¼ inch of space between Power Limited wiring and AC Power
or Battery wiring.
- Run AC Power wiring in a separate conduit that enters the back box in
the upper or lower right corner.
- Route AC Power, battery wiring, city circuit connections, and non-
Power Limited Relay wiring only through the shaded areas shown in
Figure 3-1. Do not route Power Limited wiring through the shaded
areas shown in the figure.
• The 4010 FACP can be reclassified as a non-Power Limited system when
installed in accordance with the latest version of NEC 760. In this case, all
references to Power Limited must be removed from the panel’s labels.

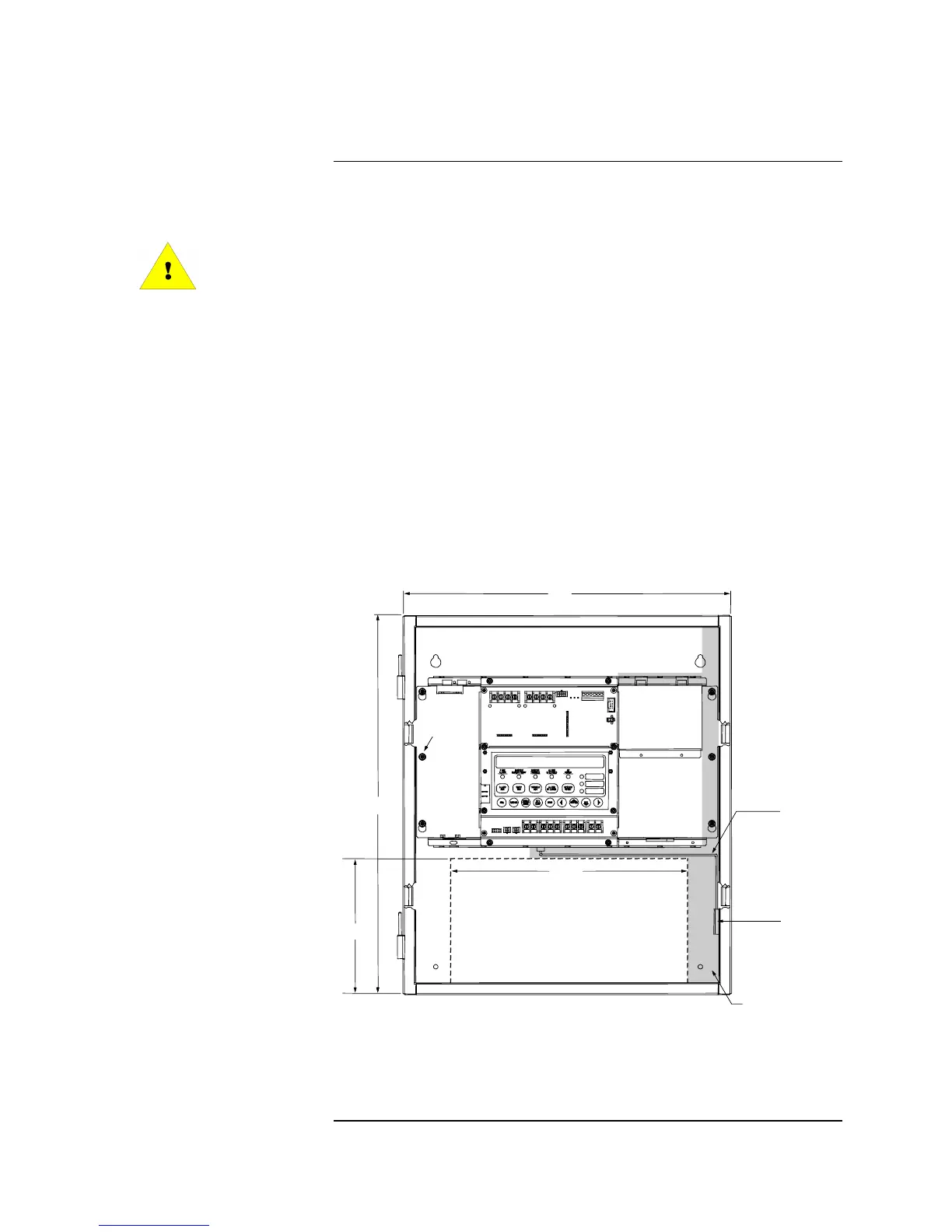

Figure 3-1. Location of Non-Power Limited Wiring Area
Overview
Power Limited Versus Non-
Power Limited Systems
FRONT VIEW
18"
22"
BATTERY AREA
NO CONDUIT ENTRY OR
WIRING IN THIS AREA
SHADED AREA
IS FOR NON-POWER
LIMITED WIRING ONLY
AC TERMINAL
BLOCK
AC POWER
HARNESS
8 1/2"
DISCARD
AFTER
SHIPPING
14.5"
