To Edit a Custom Label of a point, use Steps 1 through 11. As an example,
editing the label of a TrueAlarm point is used in the following steps and in
Figure 11-5. Once in the Programming Mode, the 4010 is OFF-LINE.
1. Login to the 4010 at the appropriate level.
2. Press <MENU>.
3. Press <óNEXT> or < PREVIOUS> to scroll through the menu until
[Programming] is displayed and then press <ENTER>.
4. Press <óNEXT> or < PREVIOUS> to scroll through the menus until
[Configure Points] is displayed and then press <ENTER>.
5. Press <óNEXT> or < PREVIOUS> to scroll through the menus until the
type of point you wish to configure is displayed [TrueAlarm] and then press
<ENTER>.
6. Press <óNEXT> or < PREVIOUS> to scroll through the menus until
[Edit TrueAlarm Point] is displayed and then press <ENTER>.
7. Press <óNEXT> or < PREVIOUS> to scroll through the TrueAlarm
points until the point you wish to edit is displayed and then press
<ENTER>.
8. Press <óNEXT> or < PREVIOUS> to scroll through the menus until
[Edit Point Label] is displayed and then press <ENTER>.

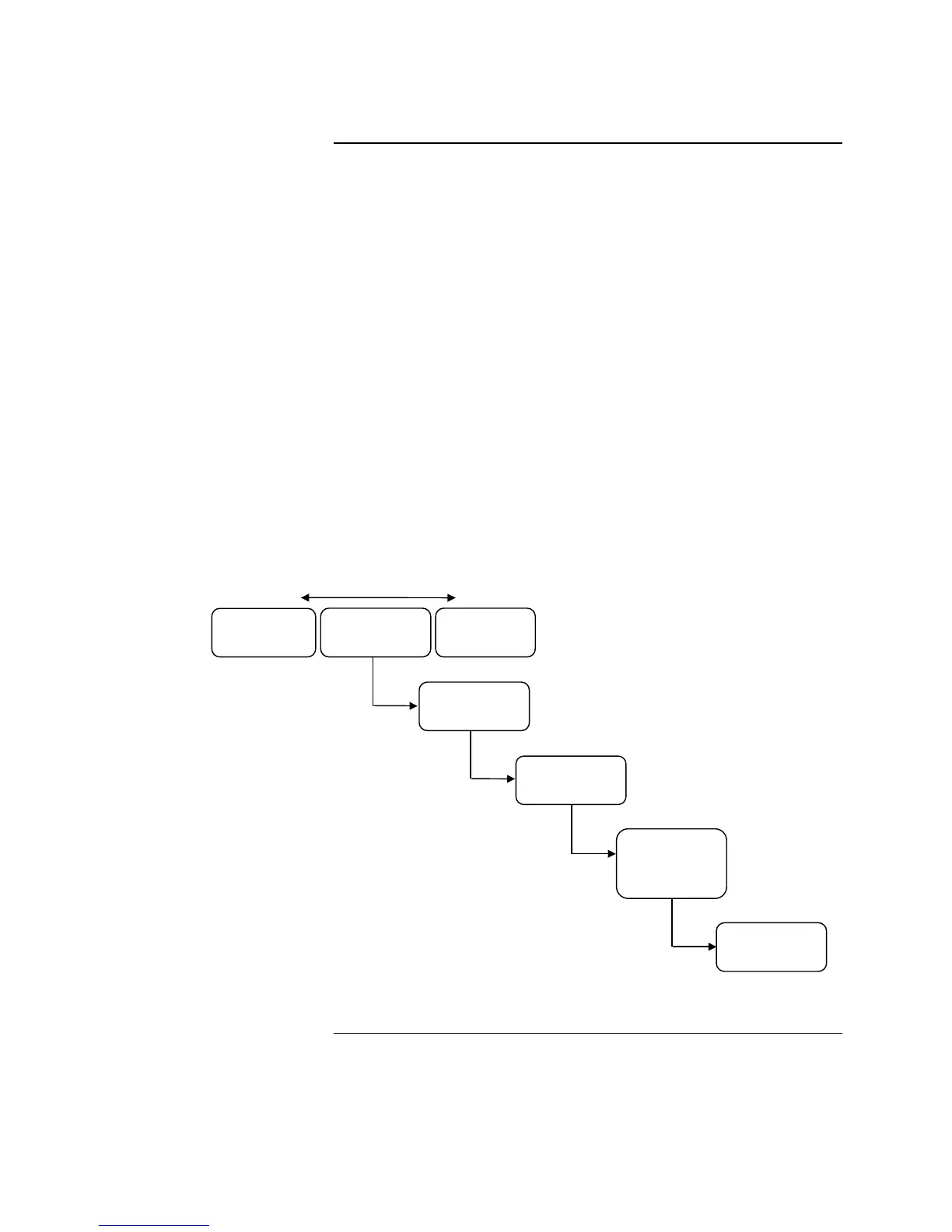

Figure 11-5. Editing a Custom Label Menu Structure
Continued on next page
Editing Custom Labels
How to Edit a Custom Label
Quick CFIG
Top Level Menus
Programming Upload/
Download
Configure
Points
TrueAlarm
Edit
TrueAlarm
Point
Edit Point
Label
