3-8
BTRY
SF I/O BD
565-738
P4
RED
RELAY
5
3
1
6
4
2
BLK
RED
RED
CANADIAN LOW BATTERY MODULE
TB8
BATTERY HARNESS
733-903
BATTERY BATTERY

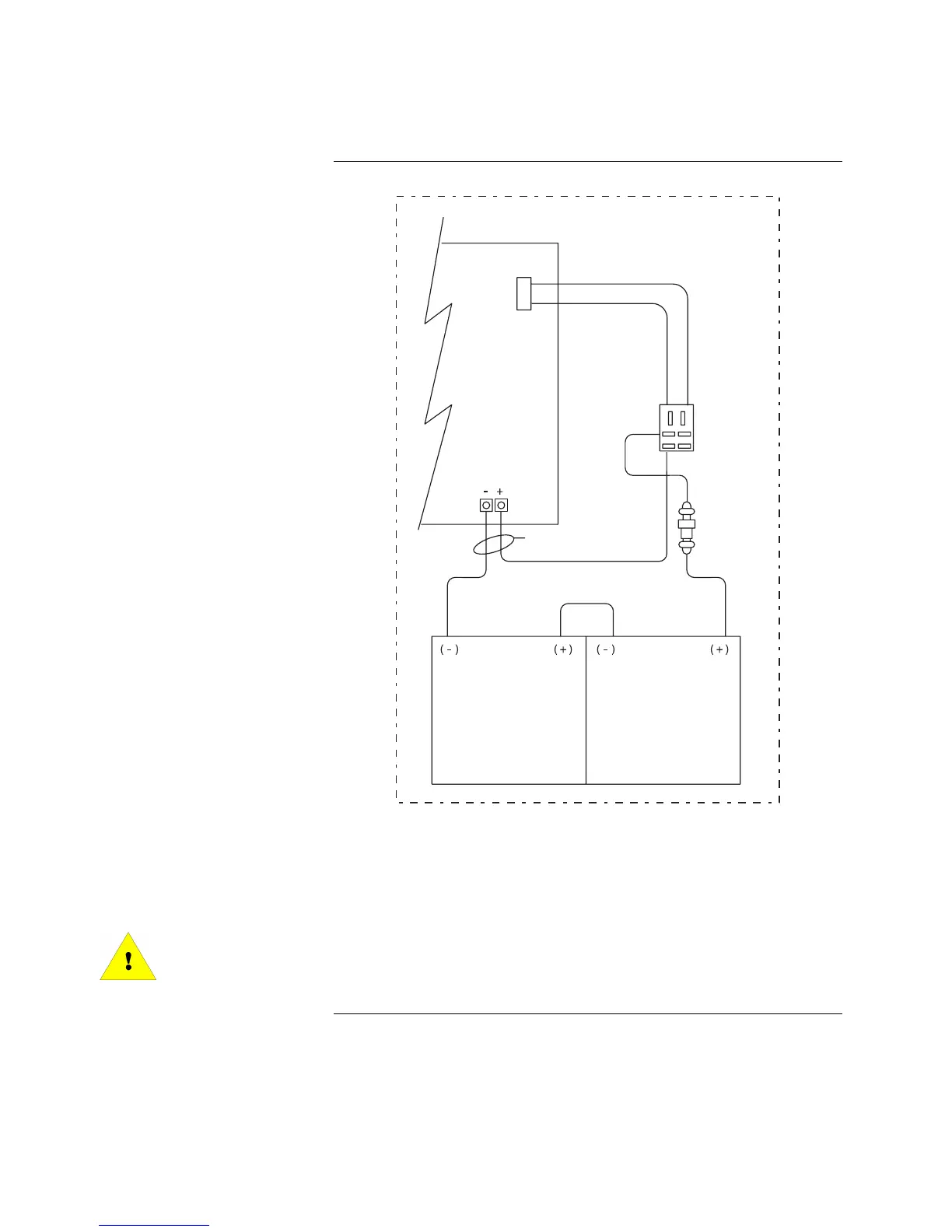

Figure 3-7. Canadian Battery Wiring
WARNING: DO NOT APPLY BATTERY POWER TO THE 4010 AT
THIS TIME! DO NOT connect crimped ends of the red
and black wires to the battery. Refer to the Power-Up
and Checkout section of this publication for more
information.
AC Power and Battery Wiring, Continued
Installing and Connecting
Batteries (continued)
