Sony CCD-TRV118 - Installing the Battery Pack; Preparing the Power Supply

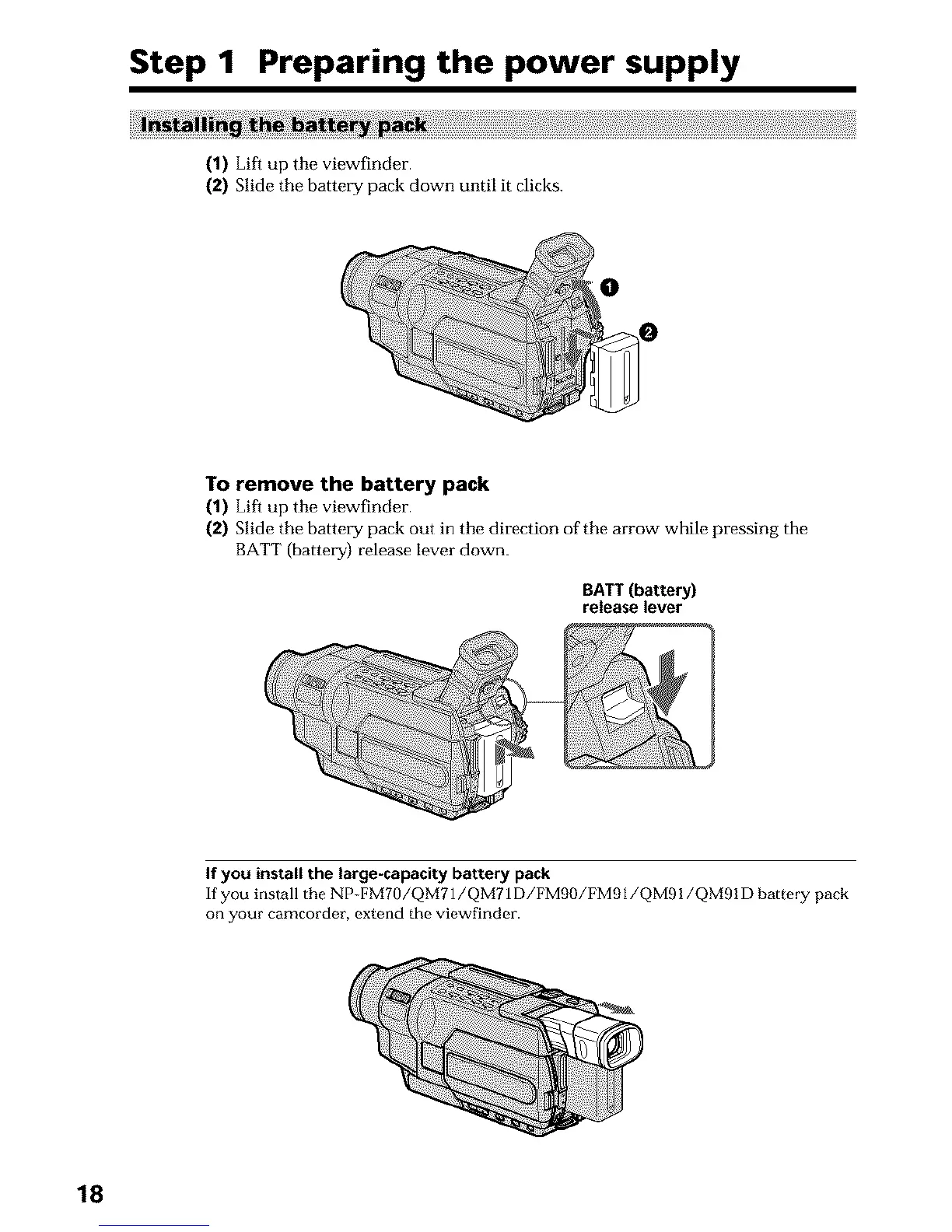

Step 1 Preparing the power supply
(1) Lift up the viewfinder.
(2) Slide the battery pack down until it clicks.
To remove the battery pack
(1) Lift up the viewfinder.
(2) Slide the battery pack out in the direction of the arrow while pressing the
BATT (battew) release lever down.
BATT (battery)
release lever
If you install the large-capacity battery pack
If you install the NP FM70/QM71/QM71D/FMgO/FM91/QM91/QM91D batte_ T pack
on your camcorder, extend the viewfinder.
18
