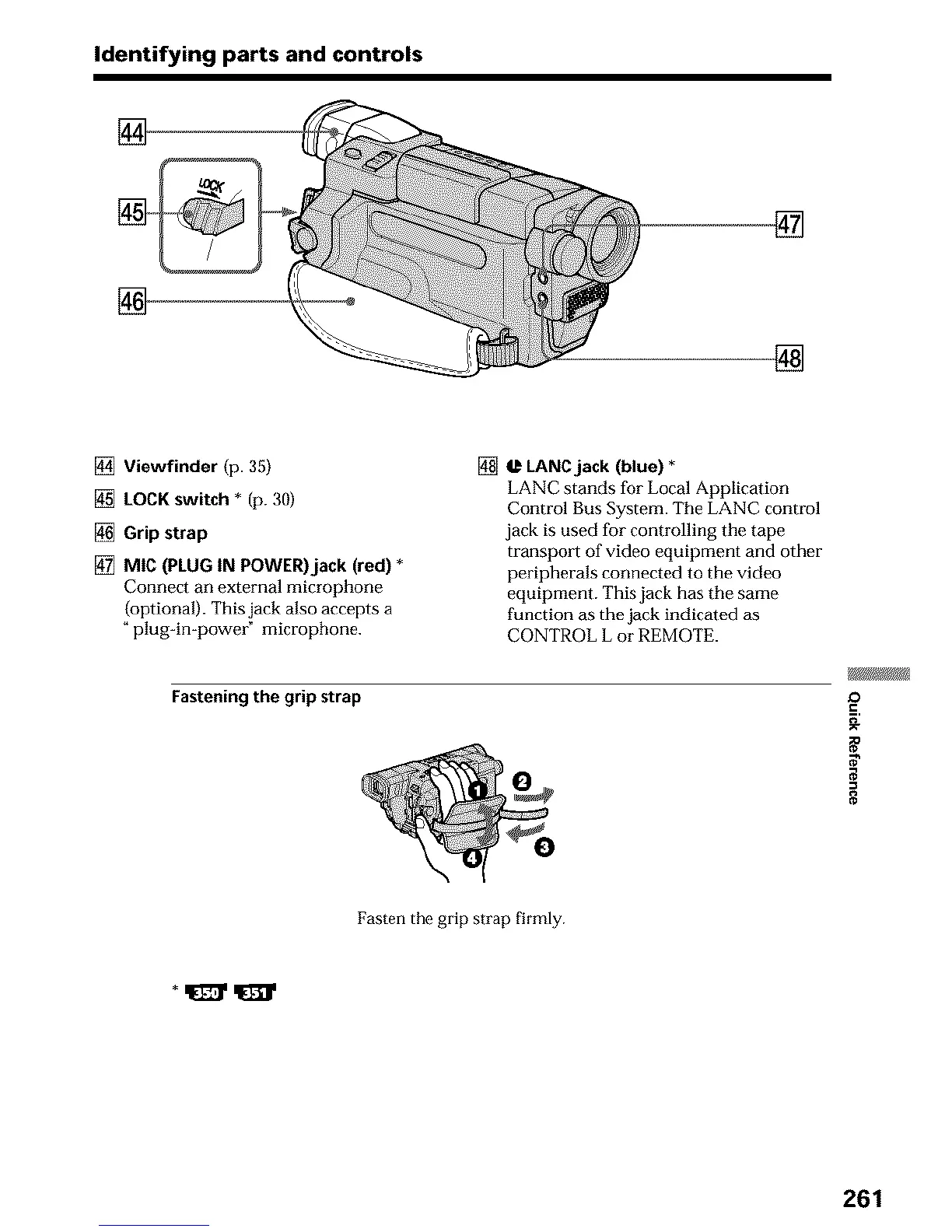

Identifying parts and controls
[]
[]
[]
[]
[] Viewfinder (p. 35)
[] LOCK switch * (p. 30)
[] Grip strap
[] MtC (PLUG IN POWER)jack (red) *
Connect an external microphone
(optional). This jack also accepts a
"plugqn-power" microphone.
[] @ LANCjack (blue) *
LANC stands for Local Application
Control Bus System. The LANC control
jack is used for controlling the tape
transpo=t of video equipment and other
peripherals connected to the video
equipment. Thisjack has the same
function as the jack indicated as
CONTROL L or REMOTE.
Fastening the grip strap
_=.
Fasten the grip strap firmly.
261
