Operation 4
Attachments
+
F
1
1
1
1
1 1

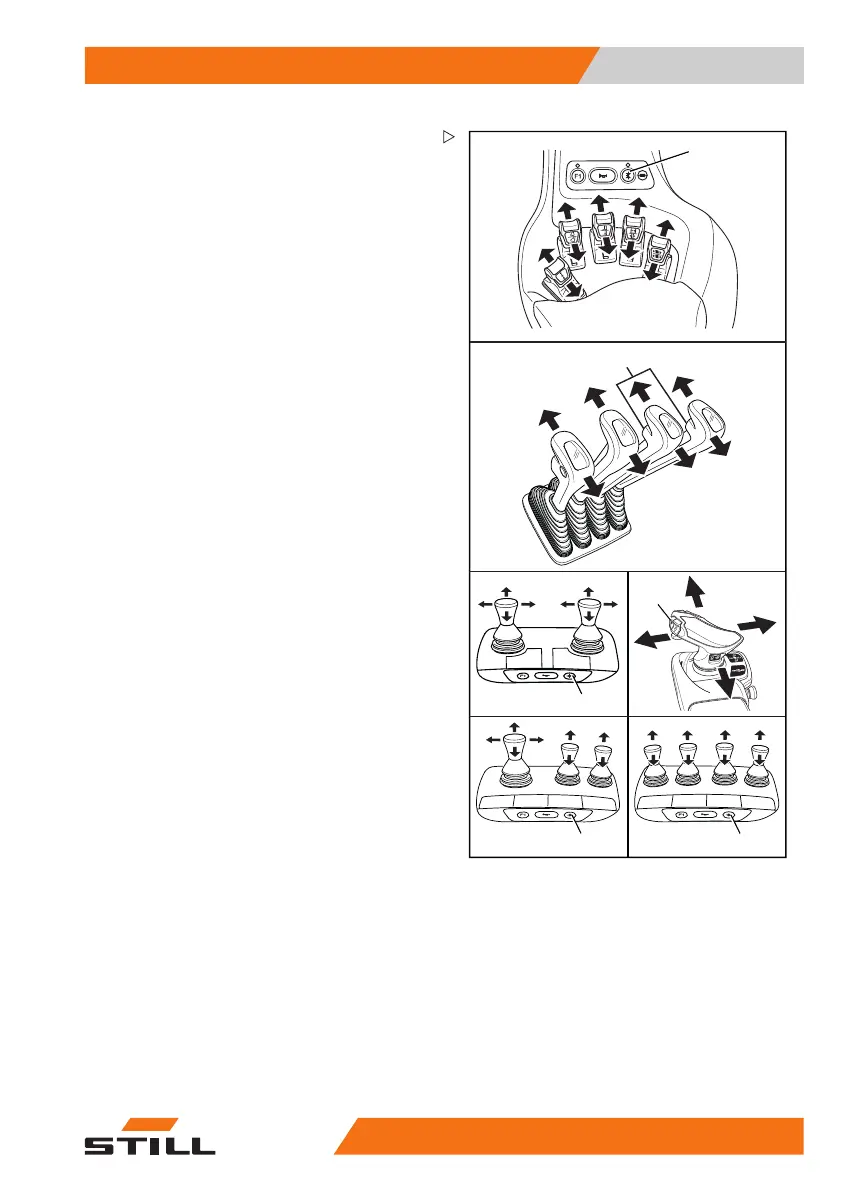

– Actuate the operating levers for controlling
the hydraulic functions once in the direc-
tions of the arrows as far as the end posi-
tions.
The hydraulic circuits of th
e basic functions
are now depressurised.
Depressurising the hydra
ulic circuits for
the"5thand6thhydraulic
function"
If the truck has a "5th and 6th hydraulic
function", their hydraulic circuits must also be
depressurised. The procedure is similar to the
depressurisation of the hydraulic circuits for
the basic functions. In addition, the hydraulic
circuits are depressurised in the same way as
the attachments are operated.
The hydraulic circuits for the "5th and 6th hy-
draulic functions" are actuated via the corre-
sponding buttons on the operating devices.
• Function key for the "5th function" with
mini-lever control and Fingertip operation
• Function keys for the "
5th function" and
"6th function" with mu
lti-lever operation
• Shift key "F" with Joystick 4Plus operation
(hereinafter referred to as the "button")
– Press and hold the but
ton (1) for the operat-
ing devices.
– Again, actuate the operating levers for
controlling the hydraulic functions once
in the directions of the arrows as far as the
end positions.
– With Joystick 4Plus operation, also actuate
the slider and the rocker buttons.
The hydraulic circu
itsforthe"5thhydraulic
function" and, wit
h multi-lever operation, the
"6th hydraulic fun
ction" (variants) are now
depressurised. Th
e plug connectors on the lift
mast are depressuri
sed.
– Release the button (1).
563
68011531 EN - 06/2019 - 02 227
