4 Operation
Replacing and transporting the bat
tery

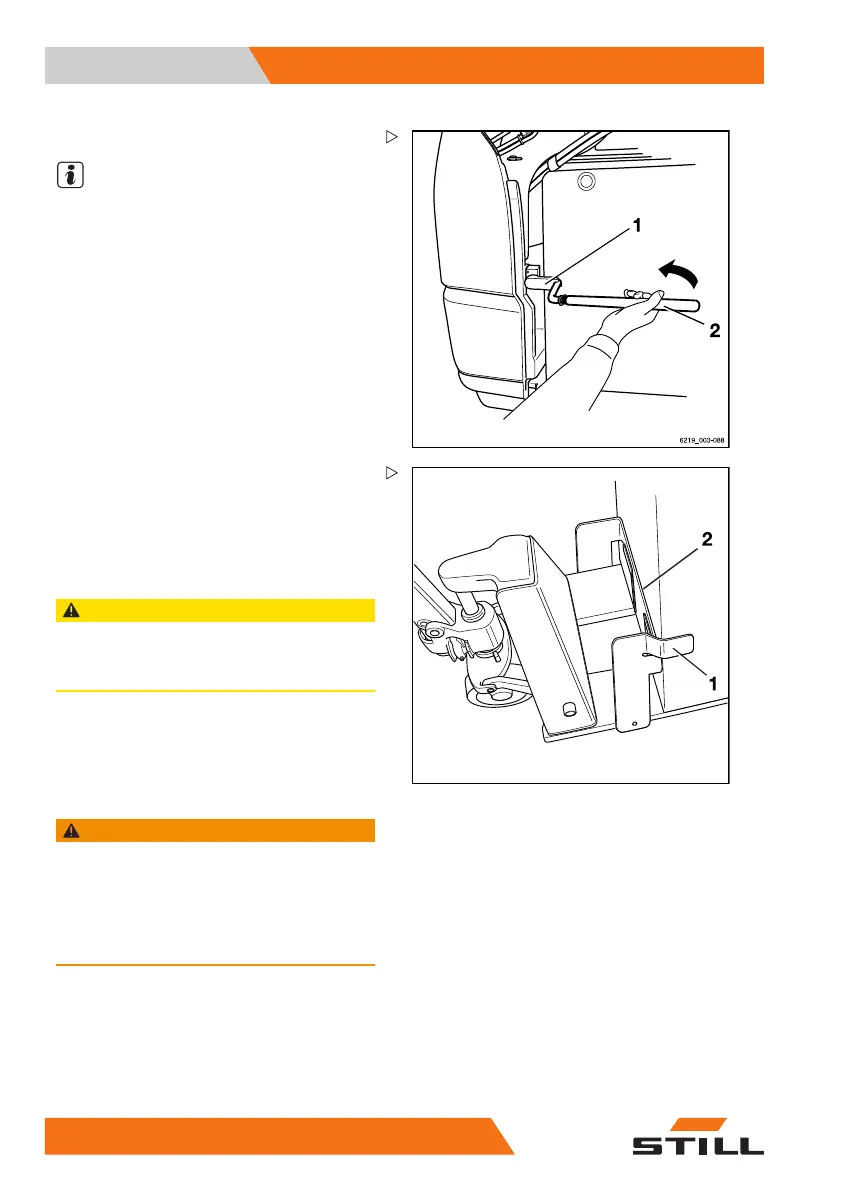

– Open the battery lock (1).
NOTE
If the battery lock cannot be opened by hand,
the coupling pin (2) from the counterweight
canbeusedasaleverextension.
– Carefully drive th
e lift truck under the battery
until the battery t
ouches the stops (1)
and (2).
– Carefully lift the battery until it maintains
a sufficient distance from the seating and
from the chassis above.
CAUTION
Potential for damage to the battery!
– If the battery knocks against the chassis at the
top, lower the battery immediately.
– Slowly remove the battery from the battery
compartment.
Transporting and setting down the
battery
WARNING
Risk of injury when transporting the battery!
The battery must be transported very carefully, i.e.
at a low speed, using a slow steering movement
and careful braking.
–Donot use the methods described here to
transport the battery over long distances.
– Transport the battery to the intended
storage space.
