Operation 4
Replacing and transporting the bat
tery
CAUTION
Damage to the battery possible!
The change frame and battery must be stored on a
suitable beam support or on suitable racking.
The change frame must not be stored on a wooden
beam or any similar object.
– Set down the battery.
Installing the battery
– Pick up the battery and tr
ansport it to the
truck.
– Position the battery cable on the battery
so that it will not become trapped when the
battery is inserted.

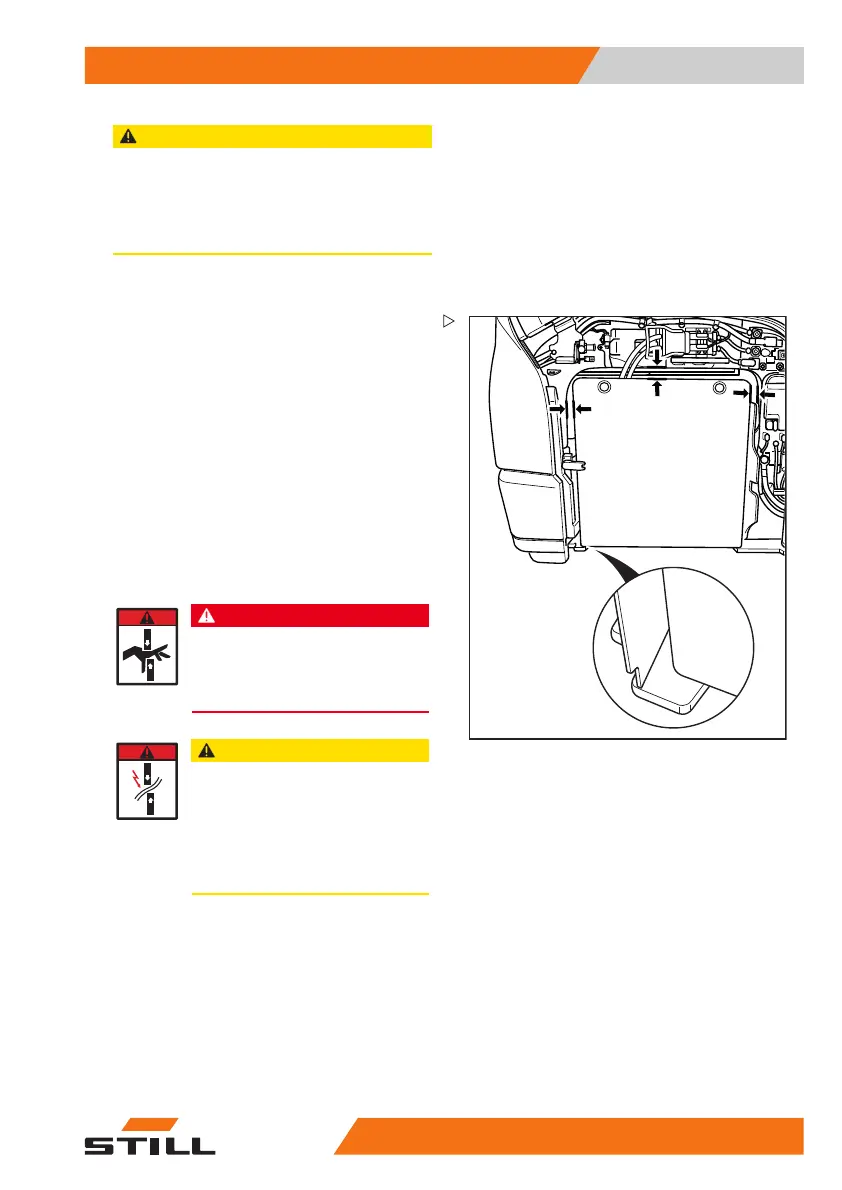

– Position the battery at a right angle to the
truck.
– Carefully insert the b
attery into the battery
compartment.
– Carefully place the battery onto the battery
holding fixtures.
DANGER
Risk of crushing or shearing!
When inserting, do not allow your
hands to come between the battery
and the chassis.
CAUTION
Potential for damage to the battery
cable!
– Position the battery cable on the
battery in such a way that it cannot
be crushed, either when removing
or inserting the battery or when
closing the battery door.
– When the battery
is correctly positioned in
the battery comp
artment, carefully lower
the battery.
– Carefully move the lifting accessory out
from under the battery.
563
68011531 EN - 06/2019 - 02 339
