Objet30 User Guide 6 Operating and Maintaining the Printer

DOC-34025 Rev. I 6-81

8. Loosen the screws securing the UV lamp cover and remove the cover.

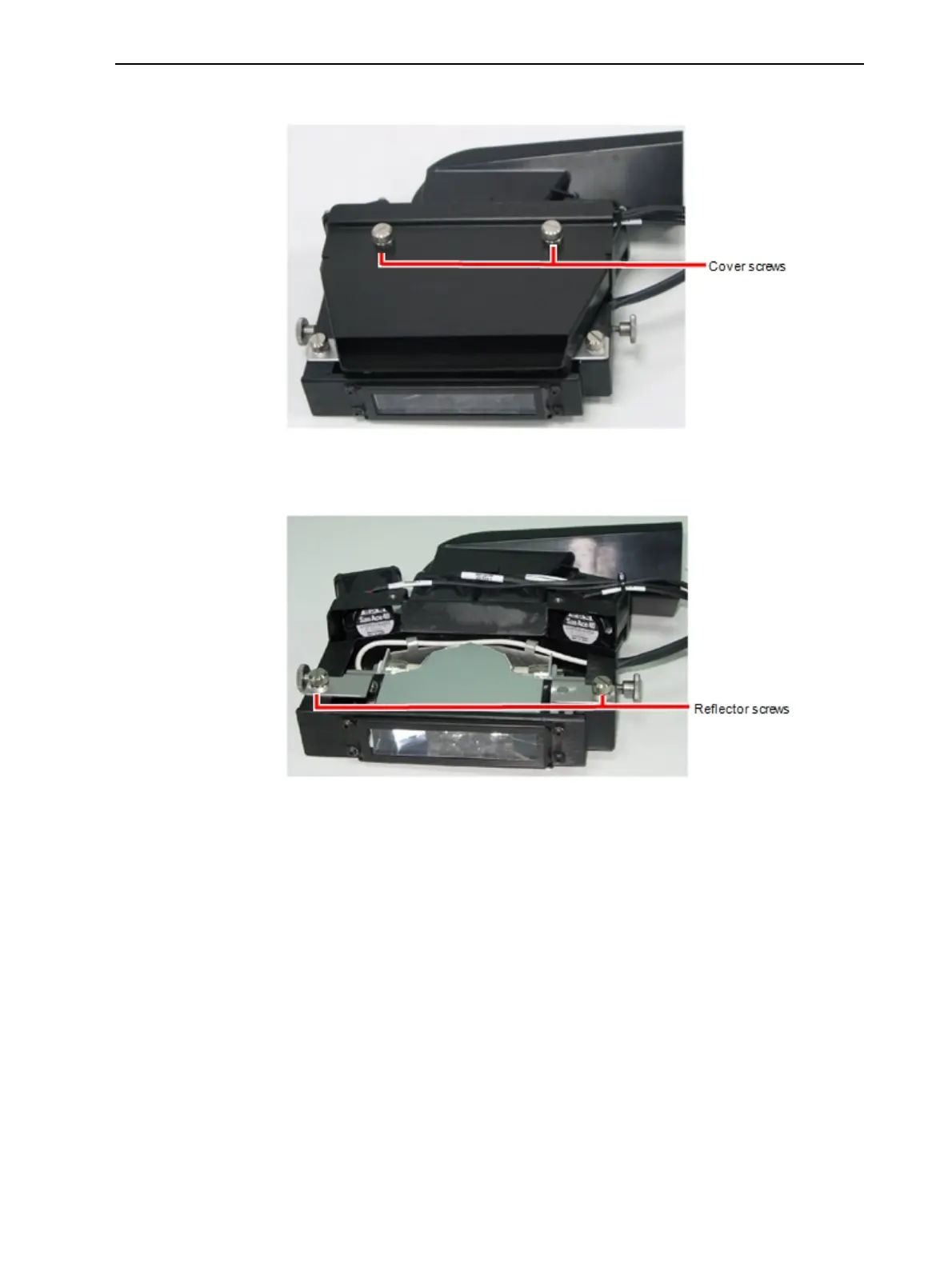

Figure 6-109 UV-lamp-cover screws

9. Loosen the two screws securing the UV reflector.

Figure 6-110 UV-reflector screws
